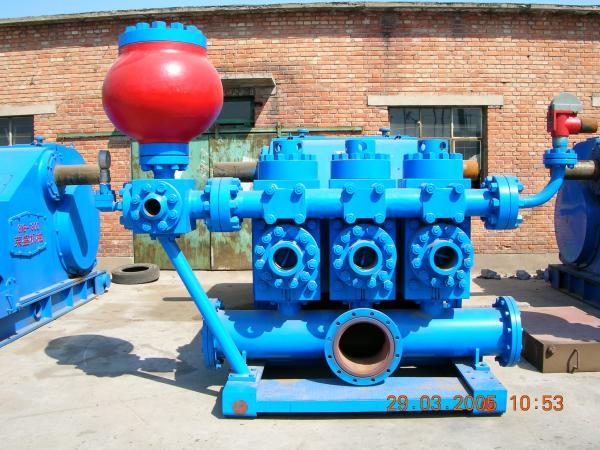

W-440 Triple Cylinder Single Action Pump 5000psi For Well Workover
W-440 Triple Cylinder Single Action Pump 5000psi For Well Workover
Specifications
Brand Name :
HH
Model Number :
W-440
Certification :
API 7K
Place of Origin :
China
MOQ :
1 set
Price :
1000-10000USD
Payment Terms :
L/C, T/T
Supply Ability :
10 SET per month
Delivery Time :
7 days
Packaging Details :
Iron case
Specification :
W-440
Rated output power :
324kw (440HP)
Maximum strokes per minute :
320 strokes per minute (320 SPM)
Stroke :
6" (152.4mm)
Gear ratio :
4.578:1
Maximum working pressure :
5000psi
Maximum liner diameter :
4 1/2"
Cylinder :
Triple cylinder single action
Description

Technical specification of W-440 triple cylinder single action pump


Rated output power 324 kw (440 HP)


Maximum strokes per minute 320 strokes per minute (320 SPM)


Strokes per minute for continuous runs 220 strokes per minute (220 SPM)


Stroke 152.4 mm (6″)


Gear ratio 4.578:1


Maximum working pressure 35 MPa


Cavity API #4


Maximum liner diameter 4 1/2″


Suction pipe orifice 6″ (150#) flange


Discharge pipe orifice 2 9/16-5000Psi flange


Diameter of pinion shaft 95.25 mm (3.75″)


Key 22.174x15.9mm


Overall dimension (main frame): 2483X1219X1315 mm


Weight (main frame) 3950 kg

Structure:

W-440 triple cylinder single action pump is widely used for different operations. The liners with specification of 31/2"-41/2" should be of piston structure, suitable for well workover and shallow-water well drilling; and the liners with specification of 31/4"-2 should be of plunger piston structure, suitable for high pressure operation.

Drawing:

W-440 Triple Cylinder Single Action Pump 5000psi For Well Workover
