4 Core Single Mode Optical Fiber Cable GJYXCH Long Distance FTTH Drop Cable LSZH/PVC Jacket
4 Core Single Mode Optical Fiber Cable GJYXCH Long Distance FTTH Drop Cable LSZH/PVC Jacket
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dong Guan China
Price :
500-2000RNB/KM
Payment Terms :
L/C, T/T
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Color Of Loose Tube :
Blue, Orange, Green, Brown
Jacket Color :
Black, White
Outer Sheathsion :
LSZH Or Pvc
Highlight: :
fiber optic drop cable, breakout fiber optic cable, Long Distance FTTH Drop Cable
Strength Member :
Steel
Name :
Indoor Fiber Optic Cable
Description
Product Description

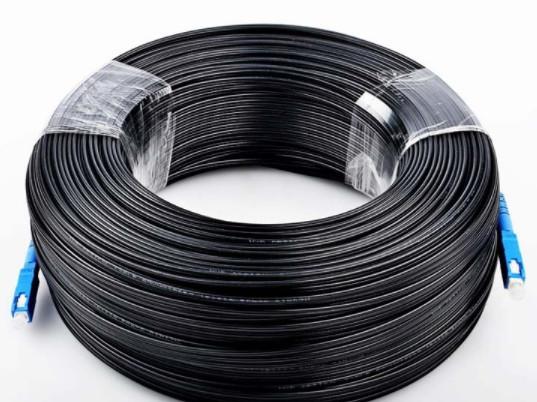

Black 4 Core Single Mode Optical Fiber Cable Long Distance FTTH Drop Cable


This 4 core fiber optic cable has been designed for access building cable with good performance and easy installation.


Properties


1. Good mechanical and environmental characteristics
2. FTTH 2 Core Indoor Fiber Optic Cable 's Flame retardant characteristics meet the requirements of relevant standard
3. The mechanical characteristics meet the requirements of relevant standard
4. Soft, flexible, easy to lay and splice and with big capacity data transmission
5. Meets various requirements of market and clients



Technical Date


ITEMS		 UNITS SPECIFICATION
Attenuation dB/km ≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion ps/nm.km ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength nm 1300 ~ 1324
Zero Dispersion Slope ps/nm2.km ≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber) nm ≤1260
Mode Field Diameter um 9.2±0.5
Mode Field Concentricity um ≤0.8
Cladding Diameter um 125±1.0
Cladding Non-circularity % ≤1.0
Coating cladding concentricity error um ≤12.5
Coating Diameter um 245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turn dB ≤0.5 at 1550nm
Proof Test kpsi ≥100
