High Strength 24 Core Multimode Fiber Optic Cable LSZH / PVC Outer Sheath
High Strength 24 Core Multimode Fiber Optic Cable LSZH / PVC Outer Sheath
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dong Guan China
Price :
500-2000RNB/KM
Payment Terms :
L/C, T/T
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Strength Member :
Aramid Yarn
Name :
24 Core Multimode Fiber Optic Cable
Jacket Color :
Yellow, Orange,Aqua Black
Outer Sheathsion :
LSZH Or Pvc
Highlight :
fiber optic drop cable, breakout fiber optic cable, PVC 24 Core Multimode Fiber Optic Cable
Description
Product Description

24 Fiber Multimode Fan-out Indoor Breakout Fiber Optic Cable with High Strength

Mulit Purpose Distribution Cable use simplex cable (φ900μm tight buffer, aramid yarm as strength member) as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallics strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.

Feature

1.Stranded non-metallic strength member structure ensure the cable endure large tensile strength.

2.The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.

3.Storage Operating Temperature: -20ºC~+60ºC, Installation Temperature: -5ºC~+50ºC.

Application

1.Indoor cable distribution.

2.For intra-building backbone cabling including floors, terminal boxex and work stations.

3.For short and middle distance direct terminals intra-buildings and within different buildings, each sub-cable unit can be directly connected by standard connector.

Fiber Parameters

No. Items Unit Specification
G.652D
1 Mode Field Diameter 1310nm μm 9.2±0.4
1550nm μm 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation (max.) 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3

Cable Parameters

Items Specifications
Fiber Count 2-48
Tight-buffered Fiber Dimension 850µm±50µm
Material PVC
Color White
Simplex Cable Dimension 1.9mm±0.1mm
Material LSZH
Color Yellow
Strength Member Kevlar
Printing Marks (1)-(48)
Central Strength Member Diameter 3.8mm±0.1mm
Material FRP+LSZH
Color Yellow

Outer Jacket

 Dimension 14.5mm±0.5mm
Material LSZH
Color Yellow

Mechanical and Environmental Characteristics

Items Unite Specifications
Tension(Long Term) N 600
Tension(Short Term) N 1500
Crush(Long Term) N/10cm 300
Crush(Short Term) N/10cm 1000
Min. Bend Radius(Dynamic) mm 20D
Min. Bend Radius(Static) mm 10D
Installation Temperature ºC -10~+50
Operating Temperature ºC -20~+60
Storage Temperature ºC -20~+60

Technical Parameter

Geometical Characteristics
Fiber Count 4 6 8 12 16 18 24
Break-out Cable Diameter (mm) 7.5 8.5 10 12.5 12.5 12.5 14.5
Break-out Cable Weight (kg/km) 45 62 84 138 150 158 202
TBF Diameter (μm) 900±50

Mechanical Characteristics
Max Lood (N) Long term 200 200 200 200 200 200 200
Short term 600 600 600 600 600 600 600
Bending Radius (mm) Dynamic 20*D (D: Cable Diameter)
Static 10*D (D: Cable Diameter)

Fiber
Fiber type (core/ cladding dimension) 9/125 50/125 62.5/125

Transmission Characteristics

SM

(1310/1550 nm)

50/125

(850/1300 nm)

62.5/125

(850/1300nm)
Max Attenuation (dB/km) 0.45/0.30 3.5/1.5 3.5/1.5
Typical Attenuation (dB/km) 0.40/0.25 3.1/1.0 3.0/1.0
Mini Bandwidth (Mhz.km) -- 400/400 160/500

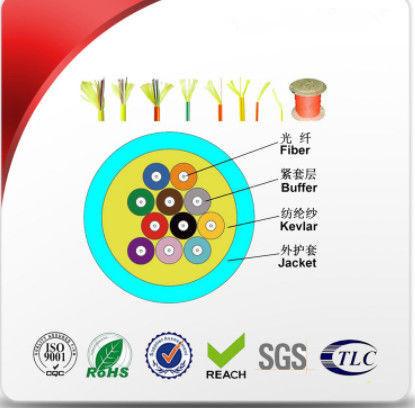

Product Structure

High Strength 24 Core Multimode Fiber Optic Cable LSZH / PVC Outer Sheath

High Strength 24 Core Multimode Fiber Optic Cable LSZH / PVC Outer Sheath

Packing & Shipping

High Strength 24 Core Multimode Fiber Optic Cable LSZH / PVC Outer Sheath
