MT Gjasfkv Armoured Fiber Optic Cable 144 Core 72 Core Indoor Armored Fiber Optic Cable
MT Gjasfkv Armoured Fiber Optic Cable 144 Core 72 Core Indoor Armored Fiber Optic Cable
MT Gjasfkv Armoured Fiber Optic Cable 144 Core 72 Core Indoor Armored Fiber Optic Cable
MT Gjasfkv Armoured Fiber Optic Cable 144 Core 72 Core Indoor Armored Fiber Optic Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-2000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
Armoured Fiber Optic Cable
Type :
Indoor multi-core armored cable
Model Number :
GJASFKV
Application :
Indoor cabling
Product name :
Indoor multi-core armored cable
Fiber Count :
72 144
Tensile Strength :
300/750mm
Allowable pressure :
200/1000 N / 100m
Bending radius :
20D / 10D mm
Description

MT Gjasfkv Indoor Armoured Fiber Optic Cables 72 144 Core Indoor Multi-Core Armored Cable

MT Gjasfkv Armoured Fiber Optic Cable 144 Core 72 Core Indoor Armored Fiber Optic CableMT Gjasfkv Armoured Fiber Optic Cable 144 Core 72 Core Indoor Armored Fiber Optic Cable

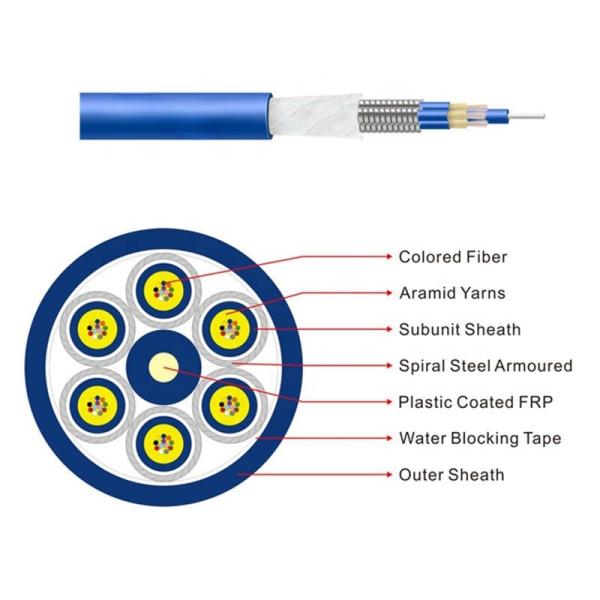

The structure of the optical fiber cable is a multi-strand aramid fiber reinforced with a multi-core bundle mini 250μm optical fiber surface. A layer of PVC or LSZH inner sheath is extruded on the stranded surface as a subunit, the subunit is wound with a layer of steel wire armor, The sub-unit and the non-metallic reinforcements FRP (and possible mats) are stranded in a circle, wrapped with a dry water-blocking tape between the core and the sheath, and finally the PVC (or LSZH) sheath is extruded cable.

Product Features/ PRODUCT

Miniature cable, high-strength aramid reinforced, high-performance jacket material protection.
Bending radius is small, light weight, soft, flexible, easy to follow.
Flat wire armored to improve the optical cable compression and anti-rat ability.
Has good mechanical and environmental performance.
Flame retardant or non-flame retardant outer jacket to provide good safety protection.

Product Application / PRODUCT

· Various conventional connector products.
Pigtail, jumper.
Optical communication equipment room, optical patch panels, fiber to the desktop and other light even.
Optical connection of optical equipment, instruments, etc.
Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection.
· Long-distance, outdoor, building wiring, trunking optical hybrid optical connection.
The backbone of the tail cable, access to the equipment inside the building.
· Small installation space and occasional wiring.

Prouduct Standards/ PRODUCT

· GJAFKV cable reference YD / T 2488-2013, IECA-596, GR-409, IEC794 and other standards; In line with UL certification OFNR, OFNP requirements.

Optical Characteristics / PRODUCT

G.652 G.655 50/125 μm 62.5 / 125 μm
Attenuation
(+ 20 ° C)		 @ 850nm ≤3.0dB / km ≤3.0dB / km
@ 1300nm ≤1.0dB / km ≤1.0dB / km
@ 1310nm ≤0.36dB / km -
@ 1550nm ≤0.22dB / km ≤0.23dB / km
Bandwidth
(Class A)		 @ 850 ≥ 500MHZ · km ≥ 500MHZ · km
@ 1300 ≥1000MHZ · km ≥600MHZ · km
Numerical aperture 0.200 ± 0.015NA 0.275 ± 0.015 NA
Cable cut-off wavelength ≤1260nm ≤1480nm

Structure parameters/ PRODUCT

Cable type
Cable Type		 Fiber number
Fiber Count
Subunit outer diameter Subunit Diameter
mm		 Cable diameter
Cable a Diameter
mm		 Cable weight
Cable Weight
Kg / km		 Allowable tension
Tensile Strength
Long / Short
Long / Short Term
N		 Allowable pressure
Crush Resistance
Long / Short
Long / Short Term
N / 100m		 Bending radius
Bending Radius
Static / Dynamic
the Static / the Dynamic
mm
GJFJV + SV 72 3.0 14.0 42 300/750 200/1000 20D / 10D
GJFJV + SV 144 3.0 18.0 65 300/750 200/1000 20D / 10D

Structure parameters/ PRODUCT

Transport temperature -20 ℃ ~ +60 ℃
storage temperature -20 ℃ ~ +60 ℃
Installation temperature -5 ℃ ~ +50 ℃
Operating temperature -20 ℃ ~ +60 ℃
Storage temperature: -20 ~ +60 ℃.
