CG125 Motorbike Piston Assembly Plug 56.5mm Bore 15mm Piston Pin
CG125 Motorbike Piston Assembly Plug 56.5mm Bore 15mm Piston Pin
CG125 Motorbike Piston Assembly Plug 56.5mm Bore 15mm Piston Pin
CG125 Motorbike Piston Assembly Plug 56.5mm Bore 15mm Piston Pin
Specifications
Brand Name :
ZT
Model Number :
CG125
Place of Origin :
CHINA
Product Name :
CG125 plug set
Piston :
Material: high-silicon aluminium alloy; Surface: graphite coating; Number of ring grooves: 3; Total height: approximately 55mm; Pin hole centre to top: approximately 16mm
piston ring :
Compression ring: 2 pieces, thickness 0.8mm, made of alloy cast iron; oil ring: 1 piece, thickness 2.0mm, composite / steel type
Packaging method :
Colour box/metal box/white box
Minimum order quantity :
500 sets
Warranty period :
One year
Customised service :
If you want to know more, leave your contact information
Description

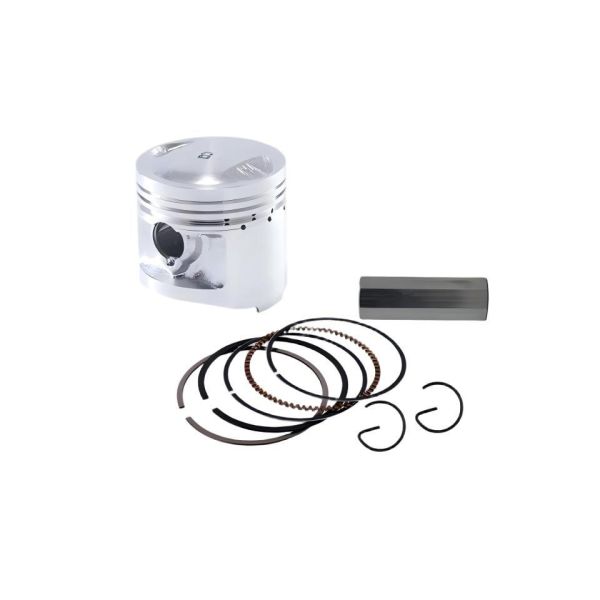

The CG125 piston set (piston assembly) does not include the cylinder liner and contains the piston, piston rings, piston pin, circlip, and top dead centre gasket. The piston is made of high-silicon aluminium alloy with a graphite coating for reduced friction and wear resistance; the piston rings are a 2-gas 1-oil combination, providing good sealing and oil scraping; the piston pin is carburised and quenched for high strength. It is compatible with Honda CG125, Xingfu XF125, and other 125cc single-cylinder overhead valve engines, easy to install, and comes with reliable after-sales support.The CG125 piston set (piston assembly) does not include the cylinder liner and contains the piston, piston rings, piston pin, circlip, and top dead centre gasket. The piston is made of high-silicon aluminium alloy with a graphite coating for reduced friction and wear resistance; the piston rings are a 2-gas 1-oil combination, providing good sealing and oil scraping; the piston pin is carburised and quenched for high strength. It is compatible with Honda CG125, Xingfu XF125, and other 125cc single-cylinder overhead valve engines, easy to install, and comes with reliable after-sales support.CG125 Motorbike Piston Assembly Plug 56.5mm Bore 15mm Piston Pin

Send your message to this supplier
Send Now

CG125 Motorbike Piston Assembly Plug 56.5mm Bore 15mm Piston Pin

Ask Latest Price
Product Detail
Brand Name :
ZT
Model Number :
CG125
Place of Origin :
CHINA
Product Name :
CG125 plug set
Piston :
Material: high-silicon aluminium alloy; Surface: graphite coating; Number of ring grooves: 3; Total height: approximately 55mm; Pin hole centre to top: approximately 16mm
piston ring :
Compression ring: 2 pieces, thickness 0.8mm, made of alloy cast iron; oil ring: 1 piece, thickness 2.0mm, composite / steel type
