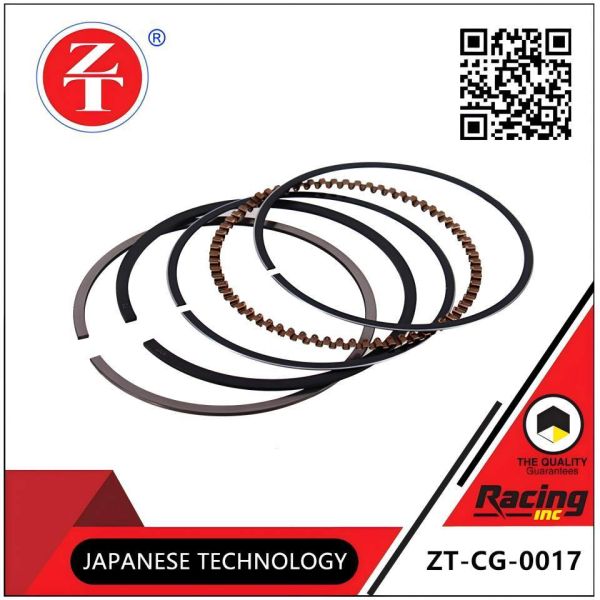

High Strength CG125 Motorcycle Piston Rings Wear Resistant Design
High Strength CG125 Motorcycle Piston Rings Wear Resistant Design
High Strength CG125 Motorcycle Piston Rings Wear Resistant Design
High Strength CG125 Motorcycle Piston Rings Wear Resistant Design
Specifications
Brand Name :
ZT
Model Number :
CG125
Place of Origin :
CHINA
Product Name :
CG125 piston rings
Compatible cylinder diameter :
56.5mm (standard), increased by 0.25mm/0.50mm
O-ring specification :
Thickness is about 1.2mm (first layer) and 1.5mm (second layer)
Oil ring specification :
Modular, total thickness approximately 3mm
Packaging type :
Colour box/white box
Warranty period :
One year
Customised service :
Leave your contact details to learn more
Description

The CG125 piston ring is a key sealing component of a single-cylinder four-stroke pushrod engine, working in conjunction with the piston and cylinder. It consists of two compression rings and one combined oil ring, responsible for sealing the cylinder, controlling engine oil, and conducting heat. It is compatible with the CG125 and other 125cc platform motorcycles. The two compression rings work together to prevent high-pressure gases in the combustion chamber from leaking into the crankcase, ensuring the compression ratio and power output. The combined oil ring scrapes excess oil off the cylinder wall on the downward stroke and distributes oil to form a film on the upward stroke, reducing wear and oil consumption. The compression rings conduct heat from the piston to the cylinder wall for dissipation through the air-cooling system, preventing the piston from overheating and deforming.High Strength CG125 Motorcycle Piston Rings Wear Resistant Design

Send your message to this supplier
Send Now

High Strength CG125 Motorcycle Piston Rings Wear Resistant Design

Ask Latest Price
Product Detail
Brand Name :
ZT
Model Number :
CG125
Place of Origin :
CHINA
Product Name :
CG125 piston rings
Compatible cylinder diameter :
56.5mm (standard), increased by 0.25mm/0.50mm
O-ring specification :
Thickness is about 1.2mm (first layer) and 1.5mm (second layer)
