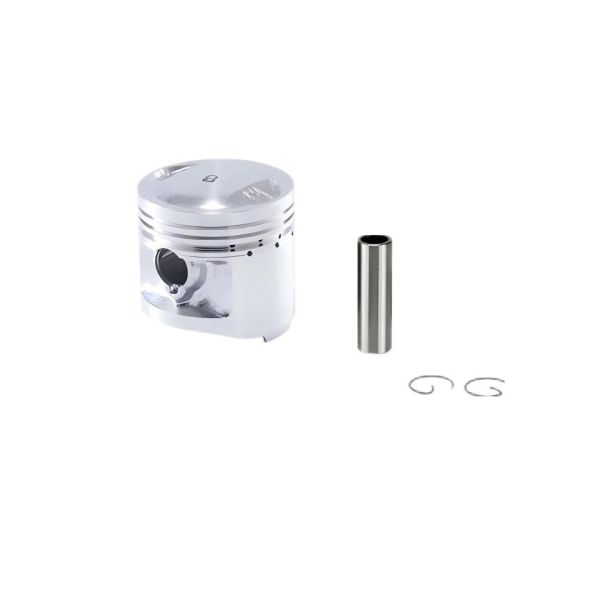

56.5mm CG125 Motorcycle Piston Sealed Cylinder Corrosion Resistance
56.5mm CG125 Motorcycle Piston Sealed Cylinder Corrosion Resistance
56.5mm CG125 Motorcycle Piston Sealed Cylinder Corrosion Resistance
56.5mm CG125 Motorcycle Piston Sealed Cylinder Corrosion Resistance
56.5mm CG125 Motorcycle Piston Sealed Cylinder Corrosion Resistance
56.5mm CG125 Motorcycle Piston Sealed Cylinder Corrosion Resistance
Specifications
Brand Name :
ZT
Model Number :
CG125
Place of Origin :
CHINA
Product Name :
CG125 piston
Piston diameter :
56.5mm (standard), increased by 0.25mm/0.50mm
Piston pin specifications :
15mm×47.3mm
Piston overall height :
Approximately 49mm
Compressed height :
Approximately 21mm
Packaging type :
Colour box/metal box/white box
Warranty period :
One year
Customised service :
Add a logo/Custom colour box/Custom tin box (leave contact information for more details)
Description

The CG125 piston is the core moving component of a 125cc single-cylinder four-stroke pushrod engine, responsible for the compression of the air-fuel mixture, transmission of combustion pressure, and sealing of the cylinder. It is suitable for the CG125 and other 125cc platform motorcycles. The main body is made of high-silicon aluminium alloy, offering lightweight and good thermal conductivity. The skirt is often graphite-coated or anodised to reduce friction and enhance wear resistance. It consists of the piston crown, piston head, piston skirt, and pin boss. The top is flat to match the combustion chamber, the head has two compression ring grooves and one oil ring groove, the skirt is oval-shaped to compensate for thermal expansion, and the pin boss is for installing the piston pin and provides a circlip groove.56.5mm CG125 Motorcycle Piston Sealed Cylinder Corrosion Resistance
