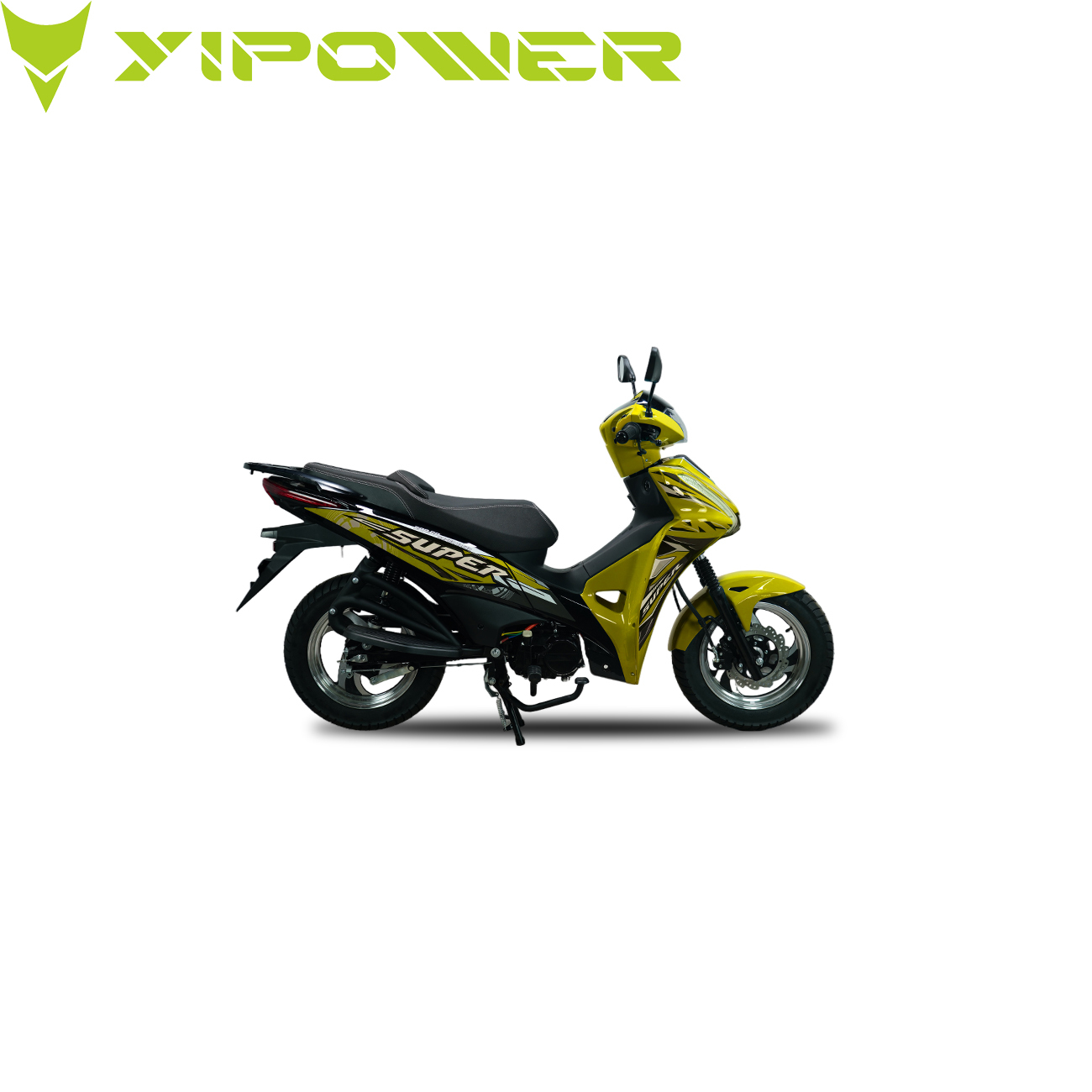

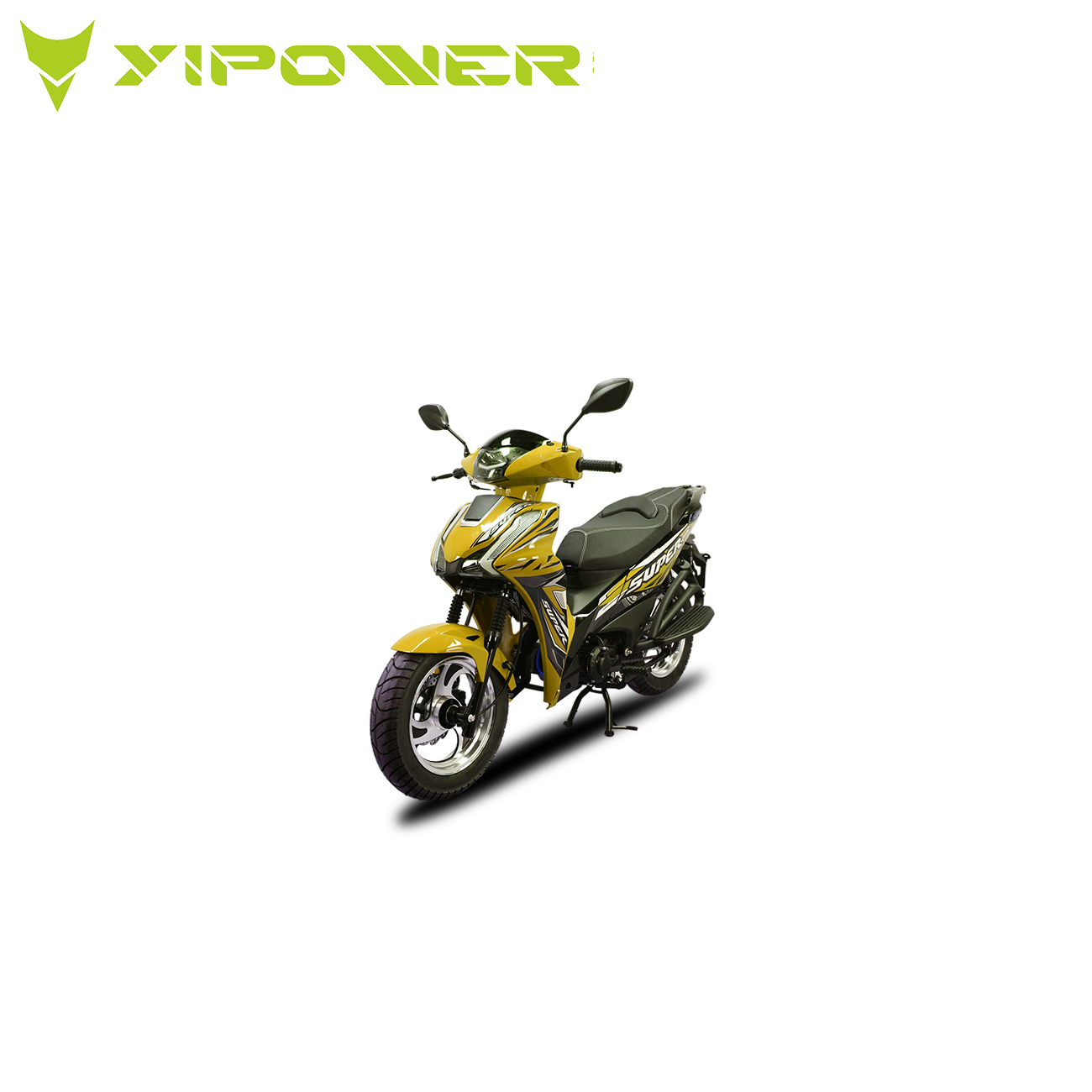

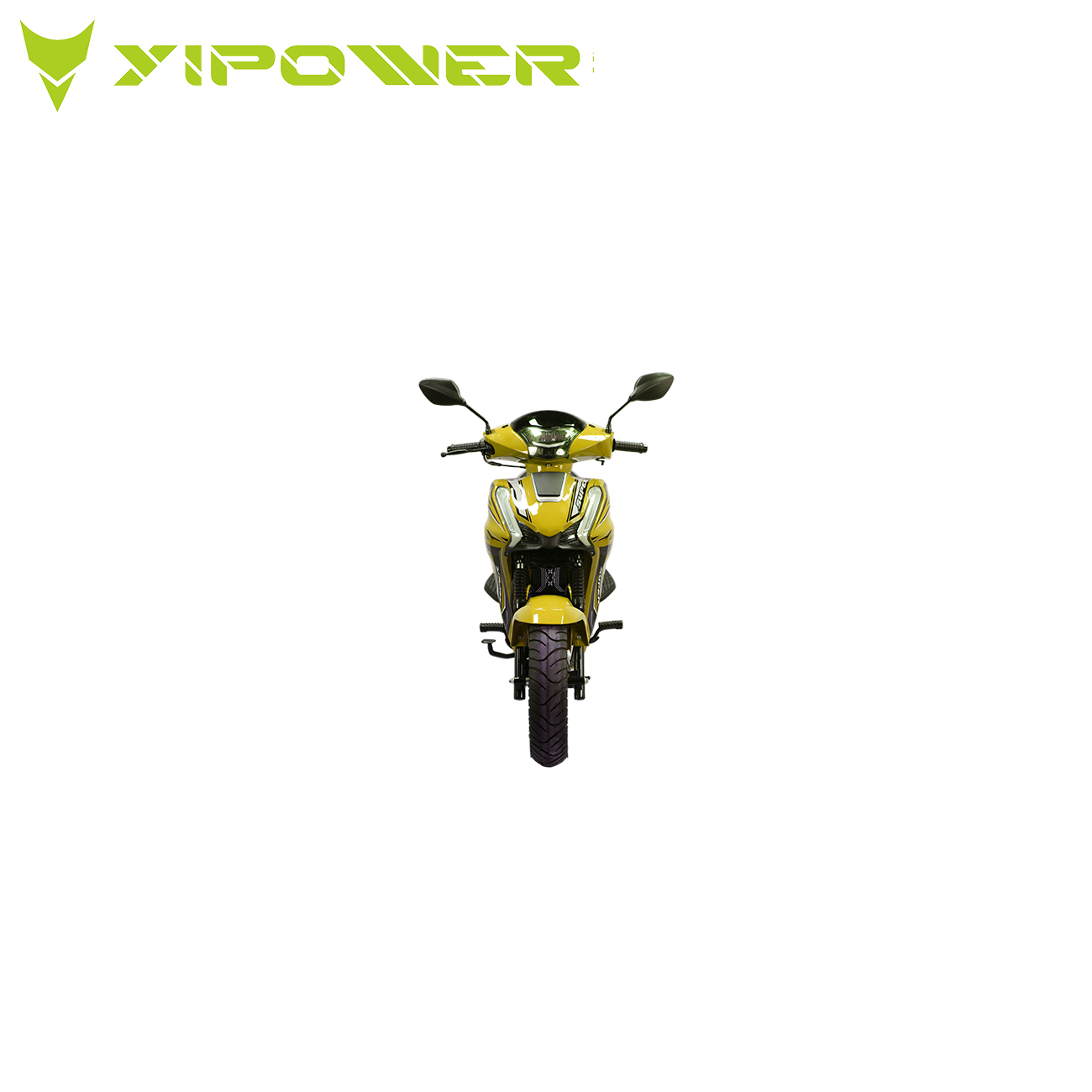

60V Dual Lithium Battery Electric Underbone Motorcycle with 158KM Max Mileage and CAN Communication Instrument
60V Dual Lithium Battery Electric Underbone Motorcycle with 158KM Max Mileage and CAN Communication Instrument
60V Dual Lithium Battery Electric Underbone Motorcycle with 158KM Max Mileage and CAN Communication Instrument
60V Dual Lithium Battery Electric Underbone Motorcycle with 158KM Max Mileage and CAN Communication Instrument
60V Dual Lithium Battery Electric Underbone Motorcycle with 158KM Max Mileage and CAN Communication Instrument
60V Dual Lithium Battery Electric Underbone Motorcycle with 158KM Max Mileage and CAN Communication Instrument
60V Dual Lithium Battery Electric Underbone Motorcycle with 158KM Max Mileage and CAN Communication Instrument
60V Dual Lithium Battery Electric Underbone Motorcycle with 158KM Max Mileage and CAN Communication Instrument
60V Dual Lithium Battery Electric Underbone Motorcycle with 158KM Max Mileage and CAN Communication Instrument
60V Dual Lithium Battery Electric Underbone Motorcycle with 158KM Max Mileage and CAN Communication Instrument
Specifications
Supply Ability :
1000Unit/Month
Delivery Time :
5-12 weeks
Model Number :
YIPOWER
Payment Terms :
L/C,T/T
Price :
Price negotiable
Packaging Details :
CKD,SKD,CBU
Brand Name :
ZFYC
Place of Origin :
CHINA
MOQ :
10 Unit
Description

This model supports two optional lithium battery versions: 60V 30Ah lithium iron phosphate battery and 60V 50Ah ternary lithium battery, adapting to different travel mileage needs. Under standard test conditions (with a 75kg adult rider), it achieves a maximum range of 158KM at a constant speed of 25km/h and 100KM at a constant speed of 45km/h. It eliminates range anxiety for daily short-distance travel and avoids frequent charging for long-distance riding, bringing high cost performance for daily commuting and short trips.

Motor Type Permanent Magnet Synchronous Motor
Rated Power 1.5KW
Peak Power 4.8KW
Max Torque 166N·m
Transmission Mode Chain Drive
Communication CAN Communication
Controller FOC Vector Controller
Instrument LED Speedometer
Rated Voltage 60V
Dimensions (L×W×H) 1900mm×720mm×1080mm
Wheelbase 1260 mm
Ground Clearance 140 mm
Seat Height 770 mm
Tire Spec Front Tire: 2.50-17
Rear Tire: 2.75-17
Max Speed 45km/h
Max Climbing Angle ≥25°
Brake System Front Disc / Rear Drum
Battery Options 60V 30Ah Lithium Iron Phosphate Battery
60V 50Ah Ternary Lithium Battery
Lighting System LED
Dry Weight 80.5kg
Curb Weight 92.5kg
Max Load Capacity 150 kg
Driving Range (With 75kg rider) @25km/h 60V 30Ah LFP Battery: 95KM
60V 50Ah Ternary Battery: 158KM
Driving Range (With 75kg rider) @45km/h 60V 30Ah LFP Battery: 60km
60V 50Ah Ternary Battery: 100km

Custom motorcycle orders accepted
