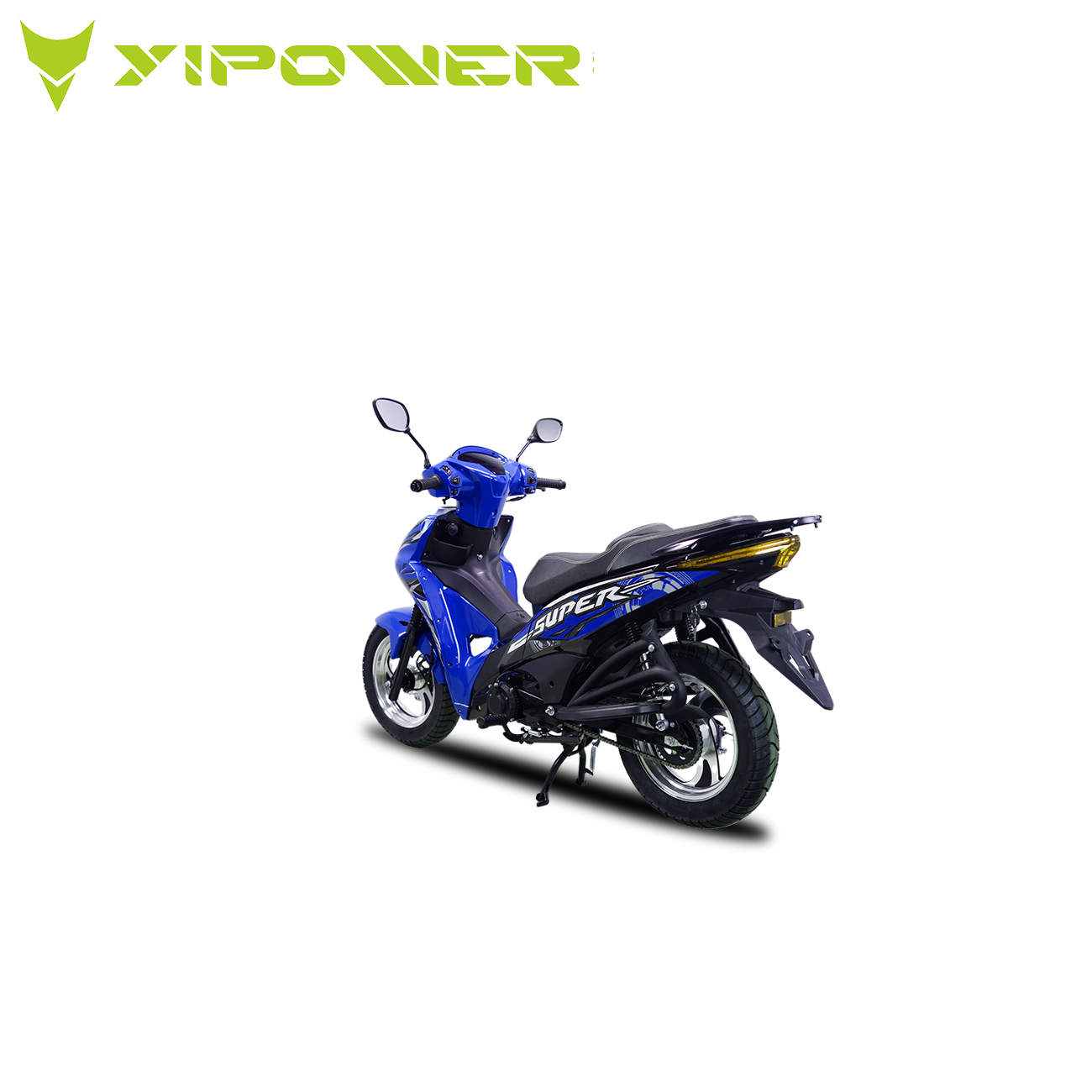

Lightweight 80.5kg Dry Weight Electric Underbone Motorcycle with 150kg Load Capacity and 60V High Voltage
Lightweight 80.5kg Dry Weight Electric Underbone Motorcycle with 150kg Load Capacity and 60V High Voltage
Lightweight 80.5kg Dry Weight Electric Underbone Motorcycle with 150kg Load Capacity and 60V High Voltage
Lightweight 80.5kg Dry Weight Electric Underbone Motorcycle with 150kg Load Capacity and 60V High Voltage
Lightweight 80.5kg Dry Weight Electric Underbone Motorcycle with 150kg Load Capacity and 60V High Voltage
Lightweight 80.5kg Dry Weight Electric Underbone Motorcycle with 150kg Load Capacity and 60V High Voltage
Lightweight 80.5kg Dry Weight Electric Underbone Motorcycle with 150kg Load Capacity and 60V High Voltage
Lightweight 80.5kg Dry Weight Electric Underbone Motorcycle with 150kg Load Capacity and 60V High Voltage
Lightweight 80.5kg Dry Weight Electric Underbone Motorcycle with 150kg Load Capacity and 60V High Voltage
Lightweight 80.5kg Dry Weight Electric Underbone Motorcycle with 150kg Load Capacity and 60V High Voltage
Specifications
Supply Ability :
1000Unit/Month
Delivery Time :
5-12 weeks
Model Number :
SKYLEAP
Price :
Price negotiable
Packaging Details :
CKD,SKD,CBU
Payment Terms :
L/C,T/T
Brand Name :
YIPOWER
Place of Origin :
CHINA
MOQ :
10 Unit
Description

The vehicle adopts a mature chain drive structure with high transmission efficiency, low power loss and strong durability, avoiding slipping and stuttering during long-term riding and ensuring stable and efficient power transmission. The brake system adopts professional front disc and rear drum configuration. The front disc brake is sensitive and fast-responding, while the rear drum brake is stable and high-tolerant. The coordinated front and rear brakes achieve stable braking on both dry and wet roads. It balances riding control and safety, coping with daily commuting, curve deceleration and emergency braking easily to fully protect riding safety.

Motor Type Permanent Magnet Synchronous Motor
Rated Power 1.5KW
Peak Power 4.8KW
Max Torque 166N·m
Transmission Mode Chain Drive
Communication CAN Communication
Controller FOC Vector Controller
Instrument LED Speedometer
Rated Voltage 60V
Dimensions (L×W×H) 1900mm×720mm×1080mm
Wheelbase 1260 mm
Ground Clearance 140 mm
Seat Height 770 mm
Tire Spec Front Tire: 2.50-17
Rear Tire: 2.75-17
Max Speed 45km/h
Max Climbing Angle ≥25°
Brake System Front Disc / Rear Drum
Battery Options 60V 30Ah Lithium Iron Phosphate Battery
60V 50Ah Ternary Lithium Battery
Lighting System LED
Dry Weight 80.5kg
Curb Weight 92.5kg
Max Load Capacity 150 kg
Driving Range (With 75kg rider) @25km/h 60V 30Ah LFP Battery: 95KM
60V 50Ah Ternary Battery: 158KM
Driving Range (With 75kg rider) @45km/h 60V 30Ah LFP Battery: 60km
60V 50Ah Ternary Battery: 100km

Custom motorcycle orders accepted
