Low Maintance Cost RTO Media Multi Layer Ceramic Media Mlm 125 160 180 200 S Type For Rapid Heat Transfer
Low Maintance Cost RTO Media Multi Layer Ceramic Media Mlm 125 160 180 200 S Type For Rapid Heat Transfer
Low Maintance Cost RTO Media Multi Layer Ceramic Media Mlm 125 160 180 200 S Type For Rapid Heat Transfer
Low Maintance Cost RTO Media Multi Layer Ceramic Media Mlm 125 160 180 200 S Type For Rapid Heat Transfer
Specifications
Brand Name :
NKCHEM
Model Number :
125, 160, 180, 200, S
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1m3
Price :
depends on quantity
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000m3 per Year
Delivery Time :
5-8 work days
Packaging Details :
wooden frame, wooden case
Material :
Alumina Ceramic
Clasification :
Ceramic Packing, Ceramic media
Application :
Heat Recovery
MOQ :
1 cubic metres
Shape :
Block
Advantage :
Excellent heat conductivity, Low pressure drop
Description

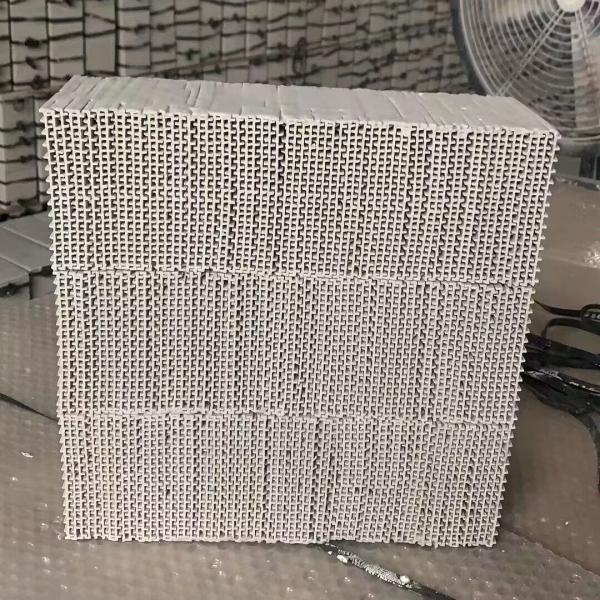

Product Picture

Product Description

Multi-layer ceramic media(mlm) is a type of structured packing which designed for VOC emission reduction equipment——Regenerative Thermal Oxidation (RTO). M L M is made of ceramic plate with prong. MLm obtained US patent for invention and Chinese patent for utility models because of its special structure design.

The product has been exported to Europe, the United States, Southeast Asia,more than 30 countries and is the first choice of heat exchange media for RTO system which used for the VOCs emission of chemical, metallurgy, painting and so on.

Item Unit 125 160 180 200 S Type
Dimension mm 305x305x101 305x305x101 305x305x101 305x305x101 305x305x101
Surface area m2/m3-ft2/ft3 410/125 525/160 590/180 655/200 722/220
Density g/cm3 2.25-2.35 2.25-2.35 2.25-2.35 2.25-2.35 2.25-2.35
Weight Kg/m3 703 873 981 1096 1052
Acid Resistance % ≤4 ≤4 ≤4 ≤4 ≤4
Water Absorption % <0.5 <0.5 <0.5 <0.5 <0.5
Free Space % 69 61 56 51 54
Max Working Temperature ℃ 1180 1180 1180 1180 1180
Heat Capacity (kJ/m2-°C) 670 810 940 1070 1070
Crushing Strength lb/ft2 4210 5380 6120 7340 7340
Feature High heat storage performance
High heat transfer efficiency
Higher specific surface area
Low pressure drop
Very low operating costs

Advantage:
1.High specific surface area
2.High specific heat capacity
3.Excellent heat conductivity
4.Low pressure drop
5.Plugging resistent
6.Low price with high performance
Application:
Regular honeycomb ceramic fillers designed for regenerative heat oxidizer and regenerative heat exchanger for organic waste gas treatment equipment.
Package
The ceramic media is packed in wooden frame or wooden case.
