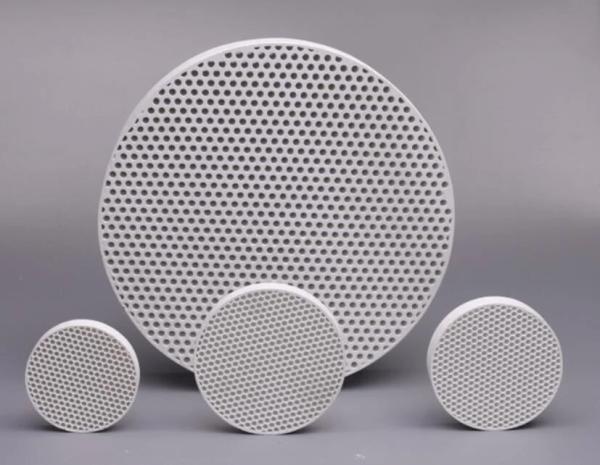

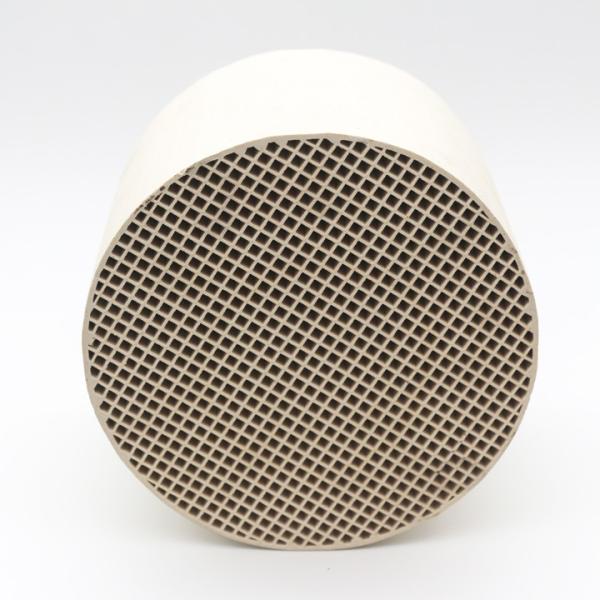

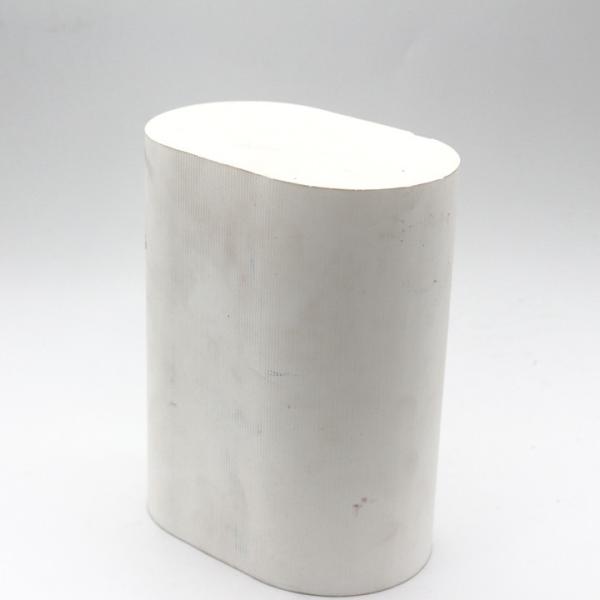

Cordierite Honeycomb Ceramic Monolith Catalyst Support Ceramic Porous Ceramic Filter
Cordierite Honeycomb Ceramic Monolith Catalyst Support Ceramic Porous Ceramic Filter
Cordierite Honeycomb Ceramic Monolith Catalyst Support Ceramic Porous Ceramic Filter
Cordierite Honeycomb Ceramic Monolith Catalyst Support Ceramic Porous Ceramic Filter
Cordierite Honeycomb Ceramic Monolith Catalyst Support Ceramic Porous Ceramic Filter
Cordierite Honeycomb Ceramic Monolith Catalyst Support Ceramic Porous Ceramic Filter
Cordierite Honeycomb Ceramic Monolith Catalyst Support Ceramic Porous Ceramic Filter
Cordierite Honeycomb Ceramic Monolith Catalyst Support Ceramic Porous Ceramic Filter
Specifications
Brand Name :
NAIKE
Place of Origin :
Jiangxi, China
MOQ :
1.0 Cubic Meter/Cubic Meters (Min. Order)
Price :
CN¥4,893.42 - CN¥6,990.60
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability :
100 Cubic Meter/Cubic Meters per Month
Delivery Time :
5-8 work day
Packaging Details :
The wooden case
Model Number :
Honeycomb Ceramic
Application :
Industrial Ceramic
Processing Service :
Bending, Cutting, Moulding
Product name :
Honeycomb Ceramic
Usage :
Industry Usage
Type :
Ceramic Raw Materials
Description
CORDIERITE HONEYCOMB CERAMIC MONOLITH CATALYST SUPPORT CERAMIC POROUS CERAMIC FILTER
Product Description
Cordierite Honeycomb Ceramic Monolith Catalyst Support Ceramic Porous Ceramic Filter
Specification
Dimensions(mm)
Specifications
English Units
Metric Units
Remarks
150*150*300
25*25 channels
Also available with any length between 50mm-300mm
Width of Channels
0.193 in
4.9±0.1 mm
Wall thickness
0.043 in
1.1±0.1 mm
Specific surface area
164.6 ft2/ ft3
540 m2/m3
Free cross section
67%
67%
150*150*300
59*59 channels
Also available with any length between 50mm-300mm
Width of Channels
0.118 in
3.0±0.1 mm
Wall thickness
0.027 in
0.7±0.1 mm
Specific surface area
251.5 ft2/ ft3
825 m2/m3
Free cross section
65%
65%
150*150*300
50*50 channels
Also available with any length between 50mm-300mm
Width of Channels
0.079 in
2.0±0.1 mm
Wall thickness
0.020 in
0.5±0.1 mm
Specific surface area
375.0 ft2/ ft3
1230 m2/m3
Free cross section
63%
63%
150*150*300
25*25 channels
Also available with any length between 50mm-300mm
Width of Channels
0.091 in
2.3±0.1 mm
Wall thickness
0.027 in
0.7±0.1 mm
Specific surface area
306.4 ft2/ ft3
1005 m2/m3
Free cross section
57%
57%
150*150*300
20*20 channels
Also available with any length between 50mm-300mm
Width of Channels
0.244 in
6.2±0.1 mm
Wall thickness
0.043 in
1.1±0.1 mm
Specific surface area
164.6 ft2/ ft3
540 m2/m3
Free cross section
67%
67%
150*150*300
35*35 channels
Also available with any length between 50mm-300mm
Width of Channels
0.142 in
3.6±0.1 mm
Wall thickness
0.020 in
0.5±0.1 mm
Specific surface area
245.4 ft2/ ft3
805 m2/m3
Free cross section
79%
79%
150*150*300
43*43 channels
Also available with any length between 50mm-300mm
Width of Channels
0.114 in
2.9±0.1 mm
Wall thickness
0.020 in
0.5±0.1 mm
Specific surface area
304.9 ft2/ ft3
1000 m2/m3
Free cross section
72%
72%

Note

Our companys infrared combustion ceramic plate honeycomb ceramic can be applied to different gas. When customer makes the order for it, he or she should provide the parameters such as the product size, CPSI, cell shape, the gas style, the shape on the upper side. If the customer needs the one with coated catalyst, he or she should provide the catalyst color.

Advantage

Save 20-50% energy consumption. Burn without flame, low noise.
Reduce the formulation of such harmful gas as CO, NOx, etc by a large margin (more than 70%)
Strong bearing of wind, using safely.
Chemical Composition
Chemical Composition
Alumina Porcelain
Cordierite
Mullite
unit
SiO2
36.7~38.15
46~48
27~28
%
Al2O3
50.75~52.5
34~37
70~71
%
MgO
3.8~4.4
7.00~7.50
~~~
%
Fe2O3
0.70~0.90
0.70~0.90
0.50~0.70
%
CaO,K2O,Na2O
3.00~3.30
2.50~2.90
0.80~1.20
%
TiO.BaO
2.4~3.6
0.30~0.40
~~~
%
