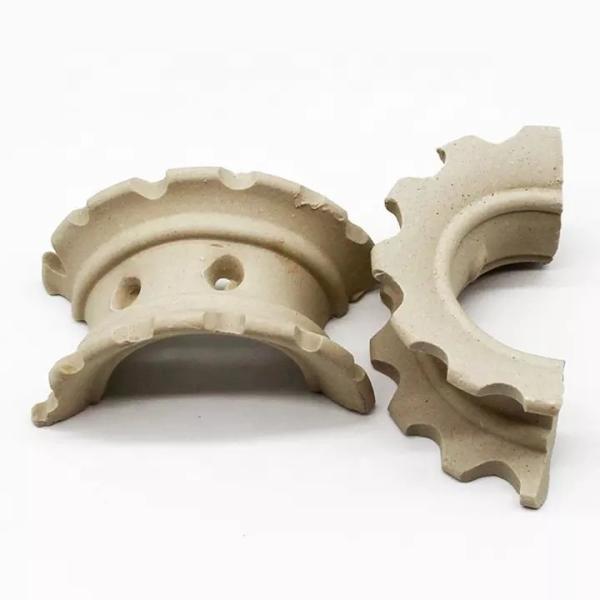

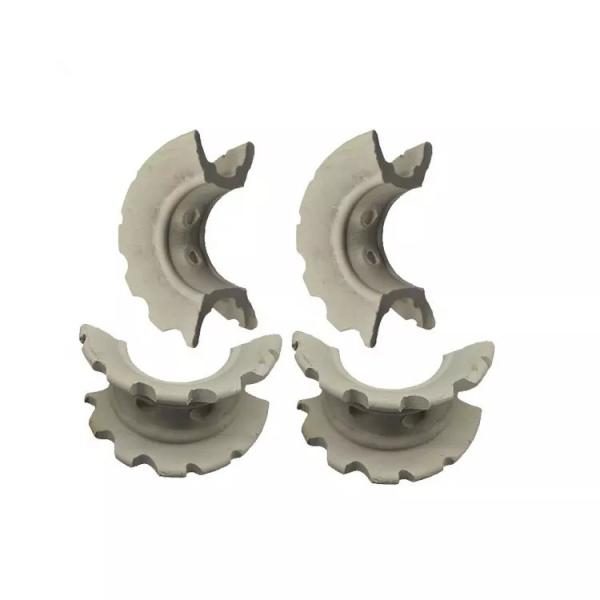

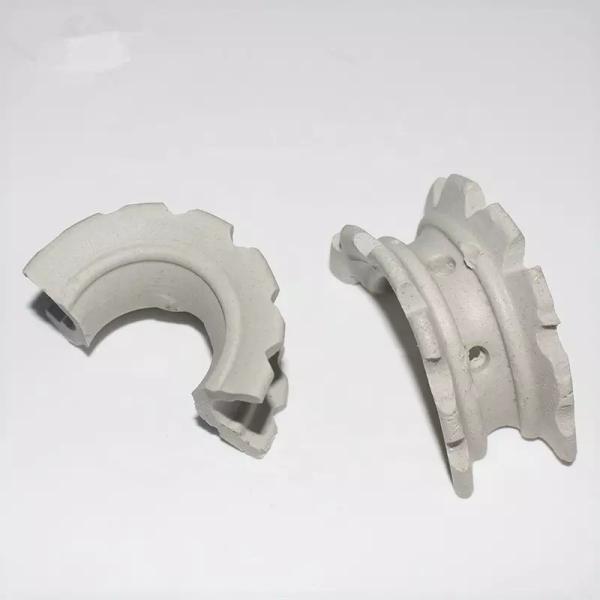

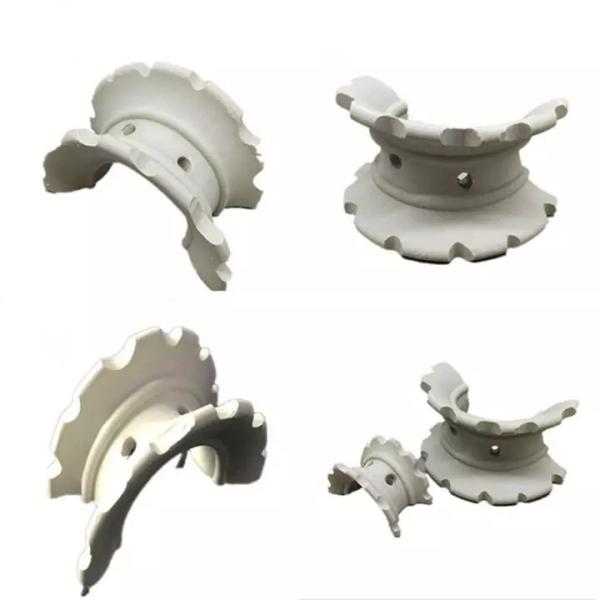

Ceramic Saddles Random Packing Super Intalox Saddle Ring
Ceramic Saddles Random Packing Super Intalox Saddle Ring
Ceramic Saddles Random Packing Super Intalox Saddle Ring
Ceramic Saddles Random Packing Super Intalox Saddle Ring
Ceramic Saddles Random Packing Super Intalox Saddle Ring
Ceramic Saddles Random Packing Super Intalox Saddle Ring
Ceramic Saddles Random Packing Super Intalox Saddle Ring
Ceramic Saddles Random Packing Super Intalox Saddle Ring
Ceramic Saddles Random Packing Super Intalox Saddle Ring
Ceramic Saddles Random Packing Super Intalox Saddle Ring
Specifications
Brand Name :
NKCHEM
Model Number :
Ceramic Novalox Saddle
Certification :
ISO9001:2008
Place of Origin :
CHINA JIANGXI
MOQ :
1 cubic meters(Min. order)
Price :
$300.00 - $500.00/ cubic meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability :
1 - 1000+kilograms+PER DAY
Delivery Time :
5-8work days
Packaging Details :
Conventional packing
Type :
Ceramic Rings
Application :
Industrial Ceramic, Towder packing
Material :
Alumina Ceramic
Product name :
Ceramic Novalox Saddle (Intalox Saddle ) Tower Packing with good price
Size (Diameter) :
16mm,25mm,38mm,50mm,76mm
Al2O3 :
23-30%
SiO2 :
>70%
Keyword :
Ceramic Novalox Saddle Tower Packing
Description

Ceramic Saddles Random Packing Super Intalox Saddle Ring

Ceramic Saddles Random Packing Super Intalox Saddle Ring

Ceramic Super Intalox saddle is a kind of random packing further developed on the basis of Saddle Ring, which both smooth edges are changed to hackly or ripple edges.Comparing with normal saddle, such structure of super saddle can ensure that interspace will be increased a lot when saddles are stacked in the column randomly.

Therefore, the resistance to vapor-liquid is decreased and it facilitates flow and distribution of vapor-liquid through the packing bed. As a result, pressure drop is low and mass transfer efficiency is high.

With the characters of high mechanical strength, high chemical stability, and excellent heat endurance, Super Saddle can resist high or low temperature, acid (except HF), alkali, salt and various organic solvents. It's widely applied in various packing towers of desiccation, absorption, cooling, washing, and regeneration in industries of petrochemical, chemical, metallurgy, gas and oxygen generation.

Ceramic Intalox Saddle has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. It can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.


Chemical Composition:

SiO2 Al2O3 SiO2+Al2O3 Fe2O3 CaO MgO K2O+Na2O Other
>69% 15-23% >92% <1% <0.25% <0.2% 2-4% <1%

Physical properties

Index Value
Specific gravity(g/cm3) 2.25-2.35
Water absorption(%) <0.5
Acid-resisting strength, %Wt. Loss (ASTMc279) <4
Firing temperature(Degree C) 1280-1320
Softening point(Degree C) >1400
Density(kg/m3) 2350


Size & Specification:

Name Normal
mm
Diameter*Height*
Thickness mm		 Surface area
m2/m3
Void space
%		 Bulk density
kg/m3
No.elements
per/m3
Packing factor
m-1
Super Intalox ø25 25*19*3 160 78 530 52000 337
ø38 38*30*4 102 80 480 16000 199
ø50 50*40*5 88 81 450 7300 166
ø76 76*57*9 58 82 430 1600 105
