Acid Resistant Ceramic Raschig Ring Column Packing 16mm 25mm 38mm 50mm
Acid Resistant Ceramic Raschig Ring Column Packing 16mm 25mm 38mm 50mm
Acid Resistant Ceramic Raschig Ring Column Packing 16mm 25mm 38mm 50mm
Acid Resistant Ceramic Raschig Ring Column Packing 16mm 25mm 38mm 50mm
Acid Resistant Ceramic Raschig Ring Column Packing 16mm 25mm 38mm 50mm
Acid Resistant Ceramic Raschig Ring Column Packing 16mm 25mm 38mm 50mm
Acid Resistant Ceramic Raschig Ring Column Packing 16mm 25mm 38mm 50mm
Acid Resistant Ceramic Raschig Ring Column Packing 16mm 25mm 38mm 50mm
Specifications
Model Number :
NK-CRR
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 cubic metre
Price :
depends on quantity
Payment Terms :
L/C, D/P, T/T, Western Union, paypal
Supply Ability :
300m3 per month
Delivery Time :
12 days for one 20GP container
Packaging Details :
woven bag/jumbo bag
Product name :
ceramic raschig ring
Material :
ceramic
Diameter :
16mm, 25mm, 38mm, 50mm, 76mm
Application :
distillation column
Classfication :
Tower packing, random packing, column packing
Description

Acid Resistant Ceramic Raschig Ring Column Packing 16mm, 25mm,38mm, 50mm

Product description

ceramic raschig ring packing can resist high temperature, acid (except HF), alkali, salt and various organic solvents. It's widely applied in various packing towers of desiccation, absorption, cooling, washing, and regeneration in industries of petrochemical, chemical, metallurgy, gas and oxygen generation.


It's used in commercial fractional distillation towers to reduce pressure loss (versus using trays), while maintaining good efficiency and economy.

Typically the change in pressure (also called "delta p") is lower than in the case of trays but slightly higher than for structured packing.

For raschig ring with big size over 100mm, it's usually filled in the column orderly. If its size is less than 90mm, raschig ring is stacked in the column randomly.

Technical date:

Name Normal
mm		 Diameter*Height*
Thickness mm		 Surface area
m2/m3		 Void space
%		 Bulk density
kg/m3		 No.elements
per/m3		 Packing factor
m-1
Rasching ring ø16 16*16*3 250 66 820 178000 870
ø25 25*25*3 147 78 510 42000 310
ø38 38*38*4 100 80 458 12000 195
ø50 50*50*5 80 81 465 5600 156
ø76 76*76*9 62 75 575 1700 147

Chemical composition

SiO2 Al2O3 Fe2O3 CaO K2O+Na2O
>70% 23-30% <1% <1-2% <2-4%

Physical properties

Index Value
Specific gravity(g/cm3) 2.25-2.35
Water absorption(%) <0.5
Acid-resisting strength, %Wt. Loss (ASTMc279) <4
Firing temperature(Degree C) 1280-1320
Softening point( Degree C) >1400
Density(kg/m3) 2350

Package info

woven bag, 25kg/bag

jumbo bag, 1000kg/bag

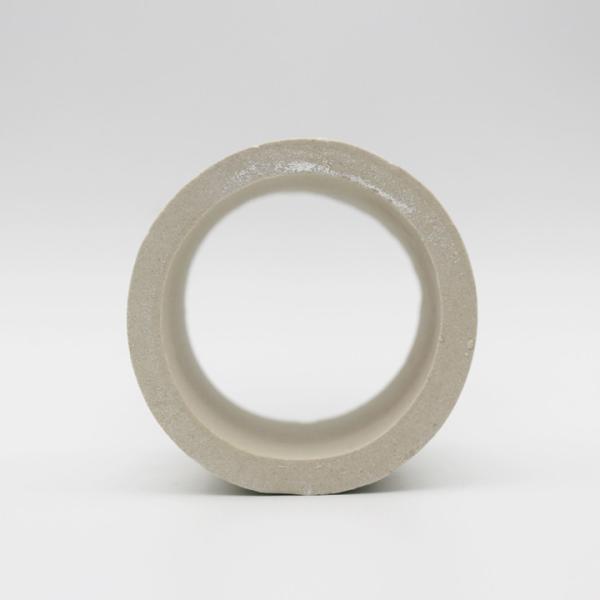

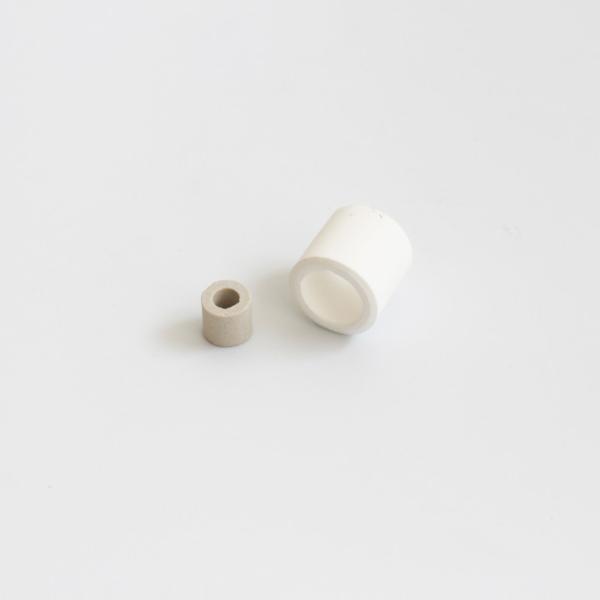

Product photo

Acid Resistant Ceramic Raschig Ring Column Packing 16mm 25mm 38mm 50mm

Production and shipment

Acid Resistant Ceramic Raschig Ring Column Packing 16mm 25mm 38mm 50mm

Other metal random packing products

Pall ring, Raschig ring, Cascade ring, Intalox saddle ring, Super intalox saddle ring, cross partition ring,

conjugate ring, ceramic berl saddle

Acid Resistant Ceramic Raschig Ring Column Packing 16mm 25mm 38mm 50mm
