Corrugated Column Packing Ceramic Structured Packing 500Y
Corrugated Column Packing Ceramic Structured Packing 500Y
Corrugated Column Packing Ceramic Structured Packing 500Y
Corrugated Column Packing Ceramic Structured Packing 500Y
Corrugated Column Packing Ceramic Structured Packing 500Y
Corrugated Column Packing Ceramic Structured Packing 500Y
Specifications
Brand Name :
NAIKE
Model Number :
NK-CSP003
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 cubic metre
Price :
USD800-1100
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, PAYPAL
Supply Ability :
300M3 per month
Delivery Time :
10 days for 20ft container

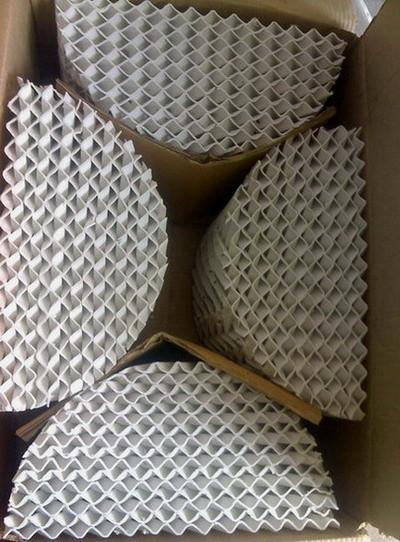

Packaging Details :
carton box and wooden case
Product :
ceramic structured packing
Material :
Ceramic
Type :
125X, 25X, 350X, 125Y, 250Y, 350Y etc
Application :
Distillation
Classfication :
Tower packing, column packing
MOQ :
1 cubic metre
Alumina content :
>17%
Description

Corrugated Column Packing Ceramic Structured Packing 500Y

Introduction:

Ceramic structured packing is made up of many packing unit bodies that share the same geometry shape. Corrugated ceramic packing is called Kelapak packingabroad, it is also called high efficiency packing, because its separation-efficiency is several times to more than ten times of loose cops packing. Compared with loose cops plate tower packing. Corugated plate ceramic packing has a great number of advantages such as high-efficiency, large thruput, low liquid holdup, unsharp amplification and good operability.


Advantage:
The most economical range is F-factor 1.5-2.0
Pressure drop of each theoretical sheet is 0.3-1 mbar
Minimum liquid load is 2001/m2h
A distributor should be installed for evry 3-4 meters inside packing towers with diameters of more than 300 mm



Application:
Fining process of corrosive mixtures, which have strict requirements for pressure drop and number of theoretical sheets.
Vacuum treatment under absolute pressure higher than 1 mbar.
Fining and distillation of halogen organic compounds.

Tech Data

Type

Specific Surface Area

m 2/m 3

Corrugated

Plate thickness mm

Heaping weight

Kg/m 3

Void

Volume

%

Pressure

Drop mmHg/m

Theoretical

Pieces

m -1

Liquid

Load m 3/m 2h

Max

Factorm/s (kg/m3)

-1
100Y 100 2.5±0.5 300 87.5 1.6 1 0.2-100 3.2
125Y 125 2.5±0.5 330 85 1.8 1-1.5 0.2-100 3.0
160Y 160 2.2±0.5 370 84 2 1.5-2 0.2-100 2.8
250Y 250 1.4±0.5 420 80 2 2.2 0.2-100 2.6
350Y 350 1.2±0.5 470 78 2.5 2.8 0.2-100 2.5
400Y 400 1.2±0.2 500 75 3 3 0.2-100 2.0
450Y 450 1.0±0.2 520 72 4 4 0.2-100 1.8
550Y 550 0.8±0.2 620 74 5.5 5-6 0.18-100 1.4
700Y 700 0.8±0.2 650 72 6 7 0.15-100 1.3
100X 100 2.5±0.5 280 92 1.5 1 0.2-100 3.5
125X 125 2.2±0.5 300 90 1.8 1.5 0.2-100 3.2
160X 160 1.4±0.5 350 85 2 1.8 0.2-100 3.0
250X 250 1.2±0.5 380 80 2.5 2.3 0.2-100 2.8
350X 350 1.2±0.5 450 78 3 2.5 0.2-100 2.6
400X 400 1.2±0.2 480 75 4 2.8 0.2-100 2.2
450X 450 1.0±0.2 500 72 4.5 3-4 0.2-100 2.0
470X 470 1.0±0.2 440 75 5 5 0.2-100 1.8
550X 550 0.8±0.2 620 74 5.5 5-6 0.18-100 1.4
700X 700 0.8±0.2 650 72 6 7 0.15-100 1.3

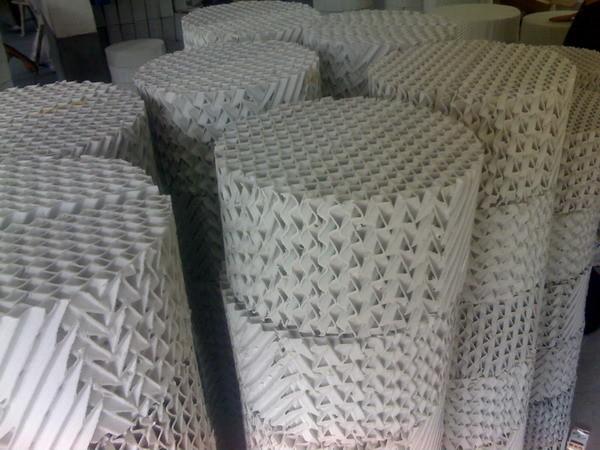

Product photo

Corrugated Column Packing Ceramic Structured Packing 500Y

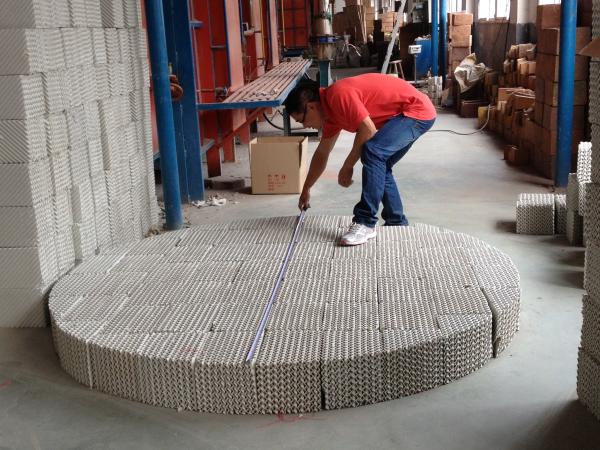

Product workshop

Corrugated Column Packing Ceramic Structured Packing 500Y
