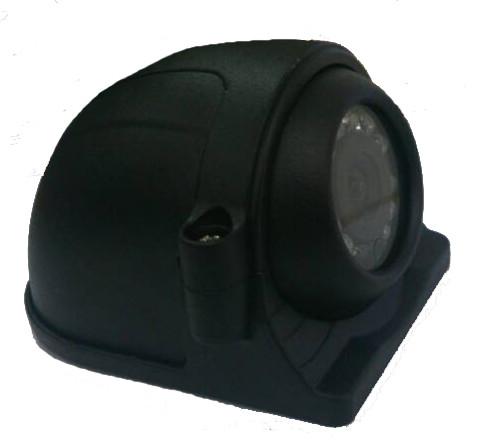

Weatherproof High resolution Car Reversing Camera for truck / school bus
Weatherproof High resolution Car Reversing Camera for truck / school bus
Weatherproof High resolution Car Reversing Camera for truck / school bus
Weatherproof High resolution Car Reversing Camera for truck / school bus
Specifications
Brand Name :
RECODA
Model Number :
CM03 in 700tvl
Certification :
CE/ROHS/FCC/UL
Place of Origin :
CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
D/A, D/P, Western Union, MoneyGram, cash
Supply Ability :
2000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Normal packageing, print customer logo in carton.
Image Device :
1/3 SONY CCD
Resolution :
420TVL/480TVL/540TVL/700TVL optional
TV System :
PAL/ NTSC
Lens :
2.8/3.6/6.0mm optional
Lens Angle :
: 120°
Infrared LED light :
: 9 PCS
IR Distance :
: 10 m
8. .Waterproof Rate :
: IP68
Description

1.Product Name: With metal housing CM03 Weatherproof Car Reversing Camera with IP67

2.Basic Info

Brand Name:

RECODA

Model Number:

CM03

Certification:

ROHS/FCC

Place of Origin:

China

3. Product Quick Details

Product Name

Waterproof Side view night vision IR Car Camera

Application

In vehicle

Sensor

CCD

Resolution

420tvl,480,600tvl,700tvl

IR distance:

10m

Feature

Waterproof

Type

Analog Camera

Lens

6.0/3.6/2.8mm optional

4.Business Term

Minimum Order Quantity:

1 pcs

Price:

negotiation

Payment Terms:

T/T , Paypal or western Union

Supply Ability:

3,000pcs per month

Delivery Time:

3~5 working days after received your payment

Packaging Details:

1 piece to a box, 56 PCS packed in a carton

Specifications:

Model

CM03

Pick up Device

1/4 SHARP CCD

TV System

NTSC / PAL

Picture Elements

512 x 582 pixels / 512 x 492 pixels

Horizontal Resolution

420 TVL / 480 TVL / 600 TVL / 700TVL optional

Sensitivity

0 Lux at F1.2 (Infrared LED On)

Scanning System

2: 1 Interlace

Synchronization

Internal

Infrared Spectrum

850nm

S/N Ratio

Better than 48 dB, (AGC Off)

Infrared LED

9 LEDs

Infrared LED Range

10m

Video Output

1 Vp-p, 75Ω composite, BNC x1

Audio Output

N/A

Mirror

Adjustable

Gamma Ratio

0.45

Lens Angle

120 degree

Lens

3.6mm Standard ( with 2.8 and 6.0mm optional )

Pan Adjusting

0-360°

Tilt Adjusting

0-40°

Out-casing Material

Aluminum Alloy / Metal optional

Power Supply

12V DC ± 10%, ø 2.1mm DC Jack

Power Consumption

Max. 180mA

Dimensions (LX W X H)

83 (L) ×60 (w) ×55 (H) mm

Net Weight

250g

Weatherproof/Water Proof

IP68

Operating Temperature

-20°C~70°C , RH95%MAX

Color

Black, White, Silver

Description:

Lens: 2.5mm

.Lens Angle: 120°

.Infrared LED light: 9 PCS

.IR Distance: 10 m

.Waterproof Rate:IP68

.Shell material: aluminum alloy

.Bracket material: nylon fabric

.Dustproof, waterproof, hydrochloric acid prevention, explosion prevention

.Current Consumption: Max. 180mA

.Power Supply: DC12V

.Operating Temperature: -20°C~70°C , RH95%MAX

.Storage Temperature: -40°C~80°C,RH95%MAX

Applications:

  1. Buses, Coach, Logistic Trucks, Tractors, Police Cars, Taxi
  2. Armored cars, Public security and law enforcement vehicles
  3. Ambulances, Traffic duty vehicles and other fields.

Competitive Advantage:

.Chip CMOS & Chip SONY optional

.Mic: collects the environmental sound around the camera

.Rear,Celling Mount ,left,Right view optional

Self heating: The cameras will entry the self-heating mode when the

environmental working temperature is lower than -5°C. And it wills automatic stop heating when the temperature reaches 30°C

Waterproof Side view night vision IR Car Camera (Metal Shell )
