High Resolution IR Car Reversing Camera For School Bus , 850nm Infrared Spectrum
High Resolution IR Car Reversing Camera For School Bus , 850nm Infrared Spectrum
Specifications
Brand Name :
RECODA
Model Number :
CM02 AHD
Certification :
CE,FCC,ROSH
Place of Origin :
China
MOQ :
1 Unit
Price :
negotiation
Payment Terms :
Western Union, T/T
Supply Ability :
500000PCS/Year
Delivery Time :
5 working day
Model No. :
CM02AHD
Resolution :
1.3MP/2MP
IR :
Support
Waterpoof :
Support
TV system :
PAL/NTSL
Color :
Customized
Description

RECODA 2016 New Item Car Reversing Camera IR Day / Night Megapixel AHD

Camera CM02

Main Feature:

  • High resolution, 1.3 Megapixel, 960P, 12VDC
  • 12 Leds, with smart IR-CUT
  • IR Day / Night Megapixel AHD Camera
  • Waterproof IP67

Specification:

Model CM02-AHD ,1.3MP
Pick up Device 1/3” CMOS Sensor AR0130
Picture Elements 1280(H)*960(V)
Effective pixels 1.3M pixels
Day-night mode External control (default) / Auto / color /
black and white
Infrared Spectrum 850nm
S/N Ratio More than 48 dB, (AGC Off)
Auto Gain Control Auto
White Balance Auto
Electronic Shutter

AUTO/ 1/50(1/60)-1/100,000sec
Auto
Back Light Compensation
Infrared LED 12 LEDs
Infrared LED Range 8 m
Video output 1 Vp-p, 75Ωcomposite ,4 ways Din jack x1
Audio Output N/A
Mirror N/A
Power Consumption 170mA
Lens Standard f3.6mm Fixed Megapixel Lens
Lens Mount M12XP0.5mm Thread
Video footage to take up 1min≈32MB
space
Power Supply 12V DC ±10%
Dimensions(L x W x H) 76.4 x 60.5 x 56mm
Net Weight 203g
Operating Temperature -10°C to +50°C

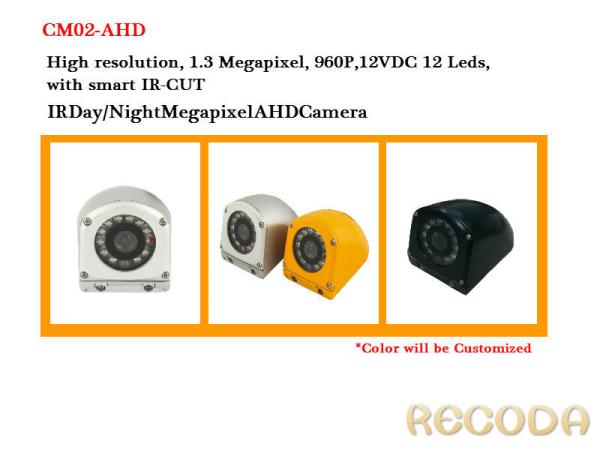

Image:

High Resolution IR Car Reversing Camera For School Bus , 850nm Infrared Spectrum

High Resolution IR Car Reversing Camera For School Bus , 850nm Infrared Spectrum

Operation procedures:

  • Loosen the lock screws (3) by applied hex key, remove the mounting base (2) from the camera (1).
  • Attach the mounting base (1) to the wall or ceiling, wherever you want to install the camera. Locate a wall stud or ceiling joint and secure the base by the supplied mounting screws (4).

  • Connect the 4 ways male din jack to the female jack on the cable, when picture shown up on the monitor.

  • Fix the camera on the mounting plate.
