IP67 Waterproof CMOS Car Reversing Camera , Day / Night Megapixel AHD Camera
IP67 Waterproof CMOS Car Reversing Camera , Day / Night Megapixel AHD Camera
Specifications
Brand Name :
RECODA
Model Number :
C801
Certification :
CE,FCC,ROSH
Place of Origin :
China
MOQ :
1 Unit
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000PCS/Year
Delivery Time :
1 Week
Model No :
C801
Resolution :
1MP/1.3MP/2MP
IR :
Support
Night Vision :
Support
Waterproof :
IP67
TV System :
PAL/NTSL
Description

RECODA New Item Car Reversing Camera IP67 Waterproof IR Day/Night

Megapixel AHD Camera

Main feature:

​

  • Using the latest CMOS technology, the camera can produce high definition image with little distortion.
  • Using the analog modulation technology to transfer progressive-scan HD Video signal.
  • Using common 75-3 coaxial cable to carry out as far as 500 meters HD video without any video signal loss.

Specification:

Model AHD200M-RV1A
Pick up Device 1/3 CMOS Aptina 0230
Picture Elements 1280(H)*1080(V)
Effective pixels 2.0M pixels
Day-night mode External control (default) / Auto / color /
black and white
Infrared Spectrum 850nm
S/N Ratio More than 72 dB, (AGC Off)
Auto Gain Control Auto
White Balance Auto
Electronic Shutter AUTO/ 1/50(1/60)-1/100,000sec
Auto
Back Light Compensation
Infrared LED 18 LEDs
Infrared LED Range 8 m
Video output 1 Vp-p, 75ΩComposite, BNC x1
Audio Output N/A
OSD Control Available
Power Consumption 210mA
Lens Standard f3.6mm Fixed Megapixel Lens
Lens Mount M12XP0.5mm Thread
Tilt Adjusting 0-90°
Video footage to take up 1H ≈ 1.506 GB
space
Power Supply 12V DC ±10%
Dimensions(L x W x H) W76 x H78 x D69 mm
Net Weight 280g
Weatherproof IP67
Operating Temperature -20°C to +50°C

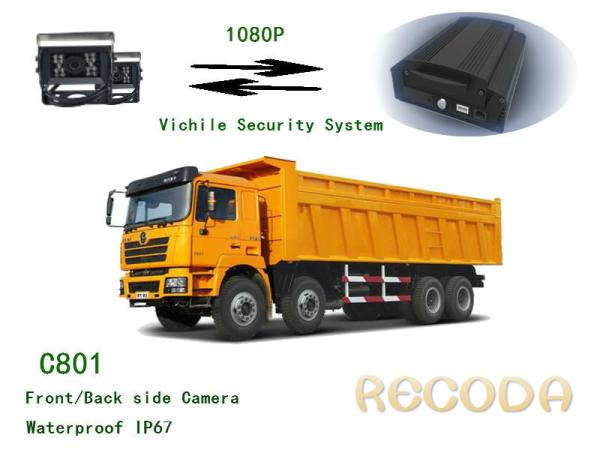

Image:

IP67 Waterproof CMOS Car Reversing Camera , Day / Night Megapixel AHD Camera

IP67 Waterproof CMOS Car Reversing Camera , Day / Night Megapixel AHD Camera

Operation procedures:

  • Loosen the lock screws on the sun shield, remove the mounting bracket to the suitable position.
  • Attach the mounting bracket to the wall or ceiling, wherever you want to install the camera. Locate a wall stud or ceiling joint and secure the base by the supplied mounting screws.

  • Connect the BNC to the monitor

  • Connect the DC jack to 12VDC power source, when picture shown up on the monitor.

  • Fix the lock screw.
