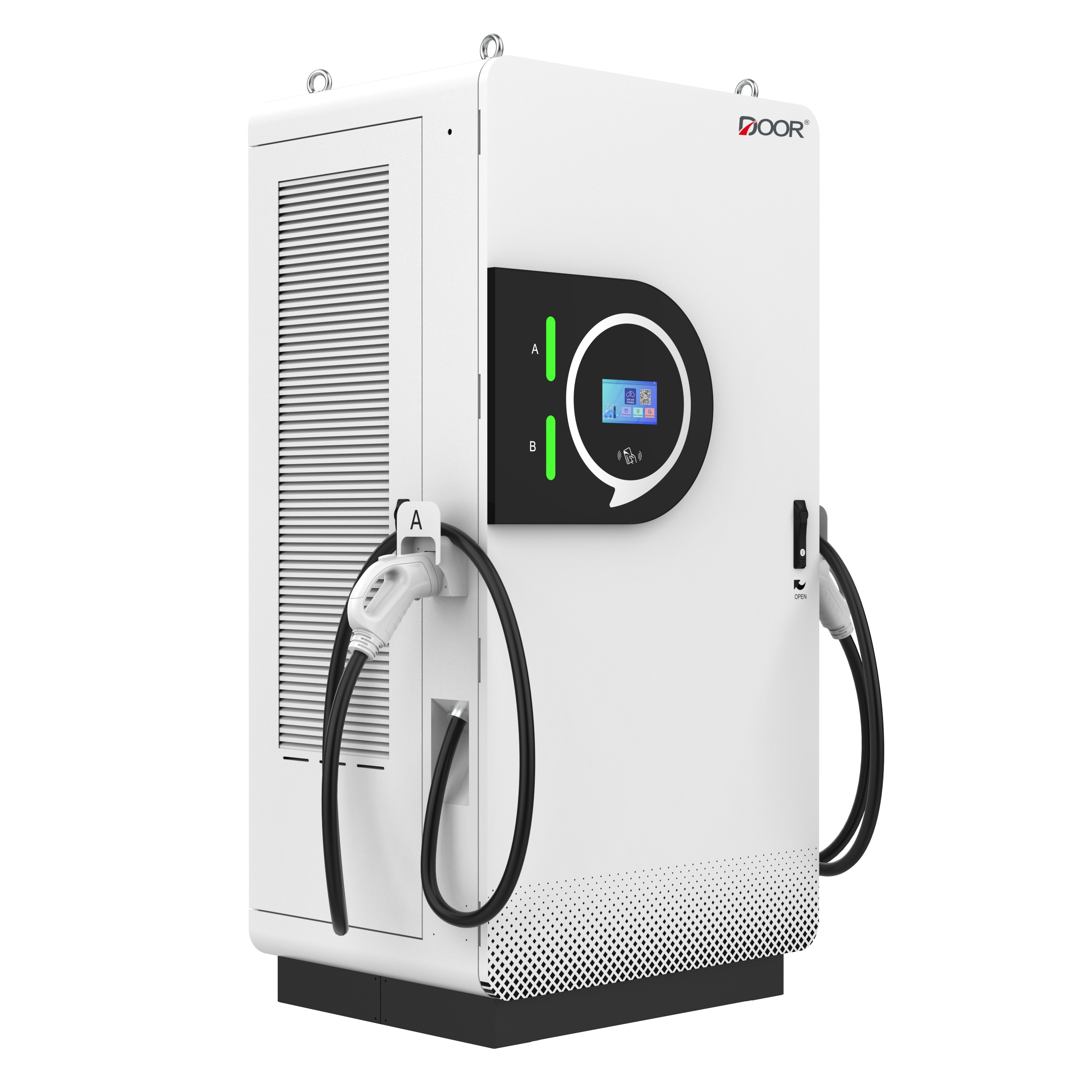

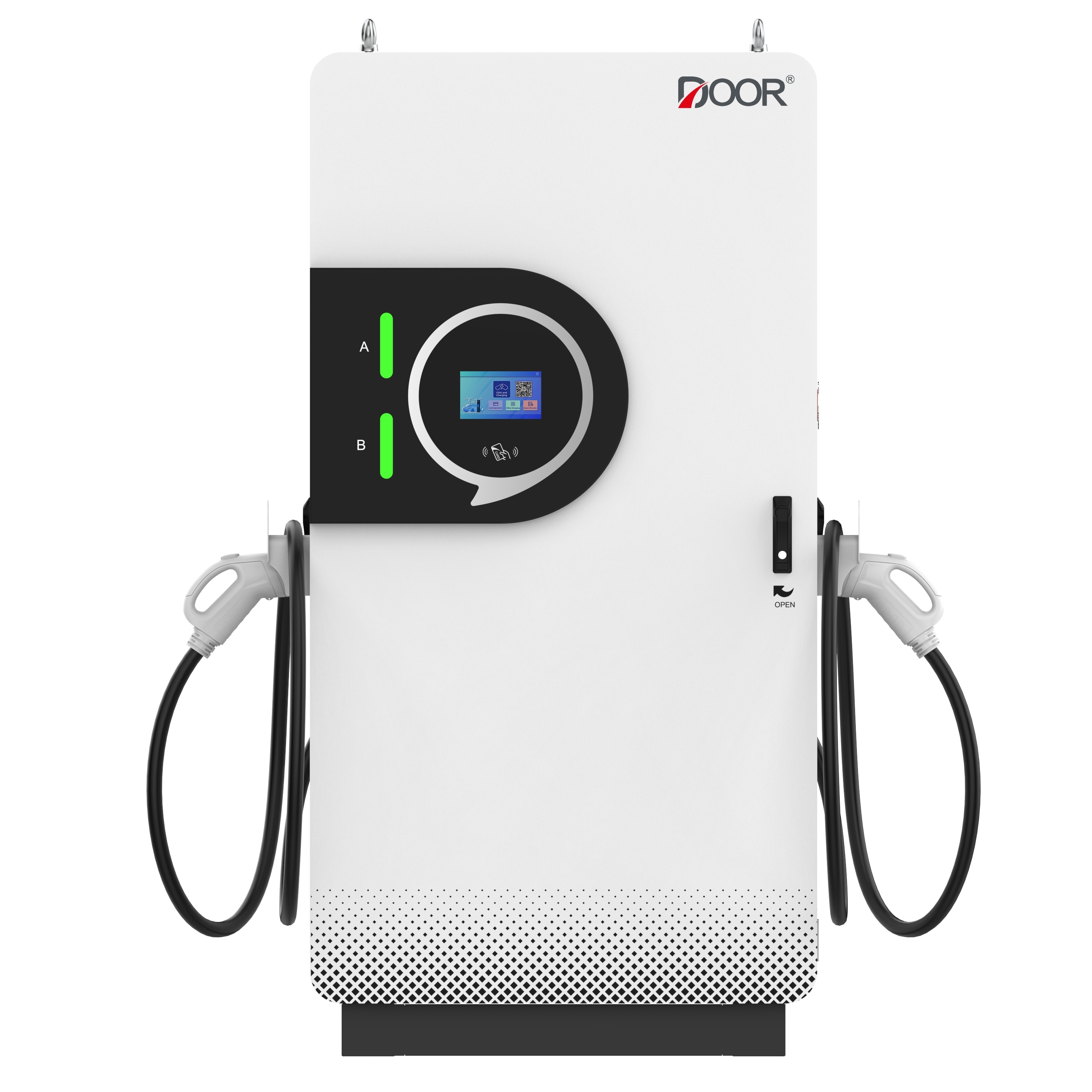

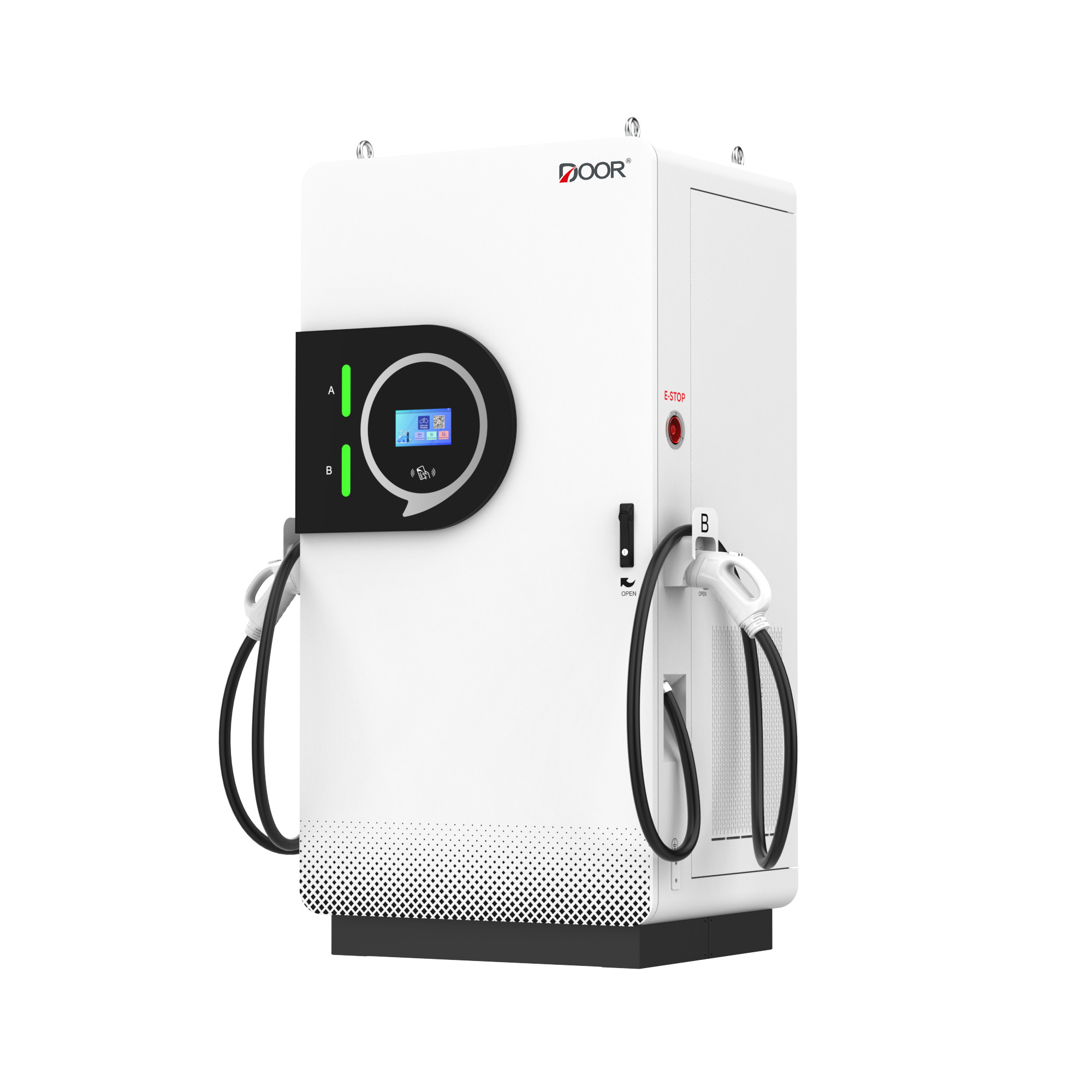

U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW
U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW
U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW
U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW
U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW
U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW
Specifications
Maximum Current :
250A
Enclosure :
Galvanized steel
Ethernet/3G/4G :
Yes
Certification :
CE/CB
Nork Altitude :
<2000m
MOQ :
1PC
Charge Connector :
CCS2/CCS1/GBT/CHAdemo/Tesla
Start Mode :
Plug&Charge/RFID card/APP
WIFI :
Yes
Noise :
≤ 60dB
Payment Terms :
L/C,T/T,Western Union
Energy Meter :
MID certified
Work Temperature :
-30° C~+50° C
Rated Voltage :
AC 400V
OCPP :
OCPP 1.6 (OCPP 2.0 optional)
Impact Protection :
IK08
Work Humidity :
5%~95%
Model Number :
U Series
Power Supply :
3P+N+PE
Effciency :
Max 95%
Brand Name :
DOOR
Rated Power :
400kW
Emergency Stop :
Yes
Price :
Negotiable
Cable Length :
5M
LCD Display :
7.0 inch
External Package :
Wood case
Delivery Time :
30-45 days
POS Terminal :
Optional
Certification Standard :
EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014
Package Dimension :
1200*847*1948 mm (L*W*H)
Cooling Method :
Fan cooling
Power Factor :
≥ 0.99
Installation :
Floor-stand
LED Indicator :
Green/Blue/Red
Gross Weight :
700kg
RCD :
Type A
Ingress Protection :
IP55
Frequency :
50/60Hz
Warranty :
2 years
Output Voltage :
DC 200~1000V
THD :
≤ 5%
Place of Origin :
China
Description

Meet The U Series Dc chargers


The U Series Dc chargers are specifically designed for public and retail applications, bringing industrial-grade resilience to high-traffic commercial spaces.

————————————————————————————————————————————————————————————————————————————————

Fully Sealed independent Air Duct


Double-layer louver design ensures complete protection for both air inlets and outlets.
Zero external dust intrusion during standby mode.
lsolates 99% of airborne particles, ensuring industrial-grade reliability.


Active Dust Removal System


Industry Exclusive (Patented): Competitors cannot replicate this performance.
Smart Automation: Automatically triggers vibration-based dust removal after every 10 charging sessions (frequency is fully customizable).
Foolproof Safety: During the cleaning cycle, the screen locks with the prompt "Dust Removal in Progress, Do Not Charge" and displays an E-stop status to prevent manual errors.Normal operation auto-resumes upon completion.


Ultra-Fast Simultaneous Charging


Wide power coverage scaling up to 400kw.

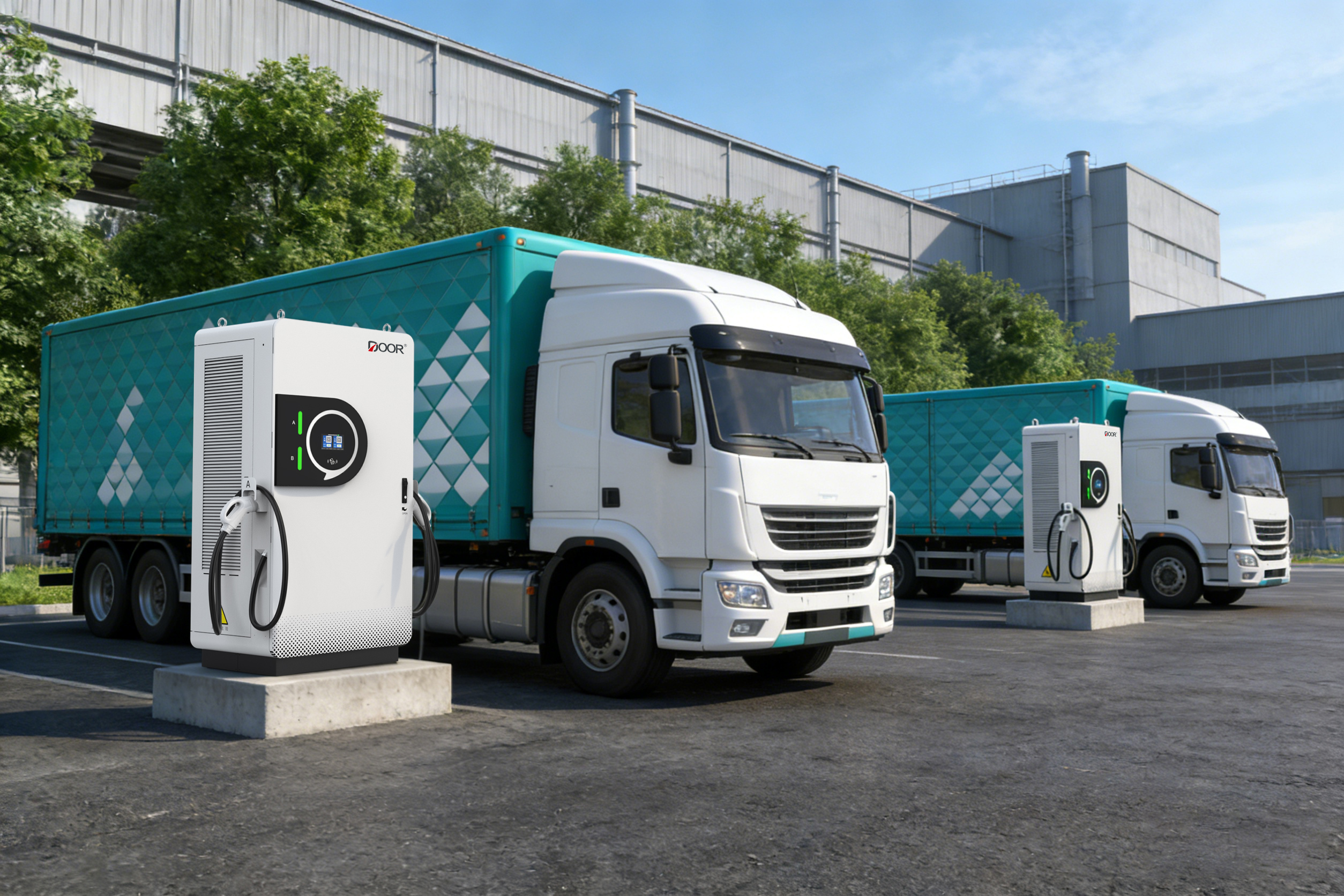

Perfectly adapted for heavy-duty electric trucks, construction machinery, and high-turnover retail charging hubs requiring massive power delivery.


Ultra-Quiet Design


Full-load operating noise s65dB across all power ranges.
Ideal for stations near residential zones, commercial centers, or night-time off-peak charging, eliminating the risk of environmental noise complaints.
