Specifications
Delivery Time :
30-45 days
Rated Power :
1040kW
LCD Display :
7.0 Inch
Work Altitude :
≤2000m
Brand Name :
DOOR
Power Supply :
3P+N+PE
RCD :
Type A
Model Number :
T Series
Rated Voltage :
AC380V ±15%
Energy Meter :
MID certified
Installation :
Floor-stand
344kg External Package :
Wood case
MOQ :
1PC
Maximum Current :
Up to 1600A
Enclosure :
Galvanized steel
OCPP :
OCPP 1.6 (OCPP 2.0 optional)
Cooling Method :
Fan cooling/Liquid cooling
Payment Terms :
L/C,T/T,Western Union
Efficiency :
≥96%
Start Mode :
Plug&Charge/RFID card/APP
Ethernet/3G/4G :
Optional
Package Dimension :
2100*770*1950 mm
Price :
Negotiable
Output Circuits :
4-16 Connectors
Emergency Stop :
Yes
WIFI :
Optional
Noise :
≤ 65dB
Ingress Protection :
IP55
Work Humidity :
0%~95%
Certification :
CE | CB（(In Progress)）
Frequency :
50/60Hz
Work Temperature :
-20℃ ~+50℃
Gross Weight :
＞500kG
Place of Origin :
China
Output Voltage :
DC 200~1000V
Impact Protection :
IK08
LED Indicator :
Green/Blue/Red
Certification Standard :
EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014
Warranty :
2 years
Description

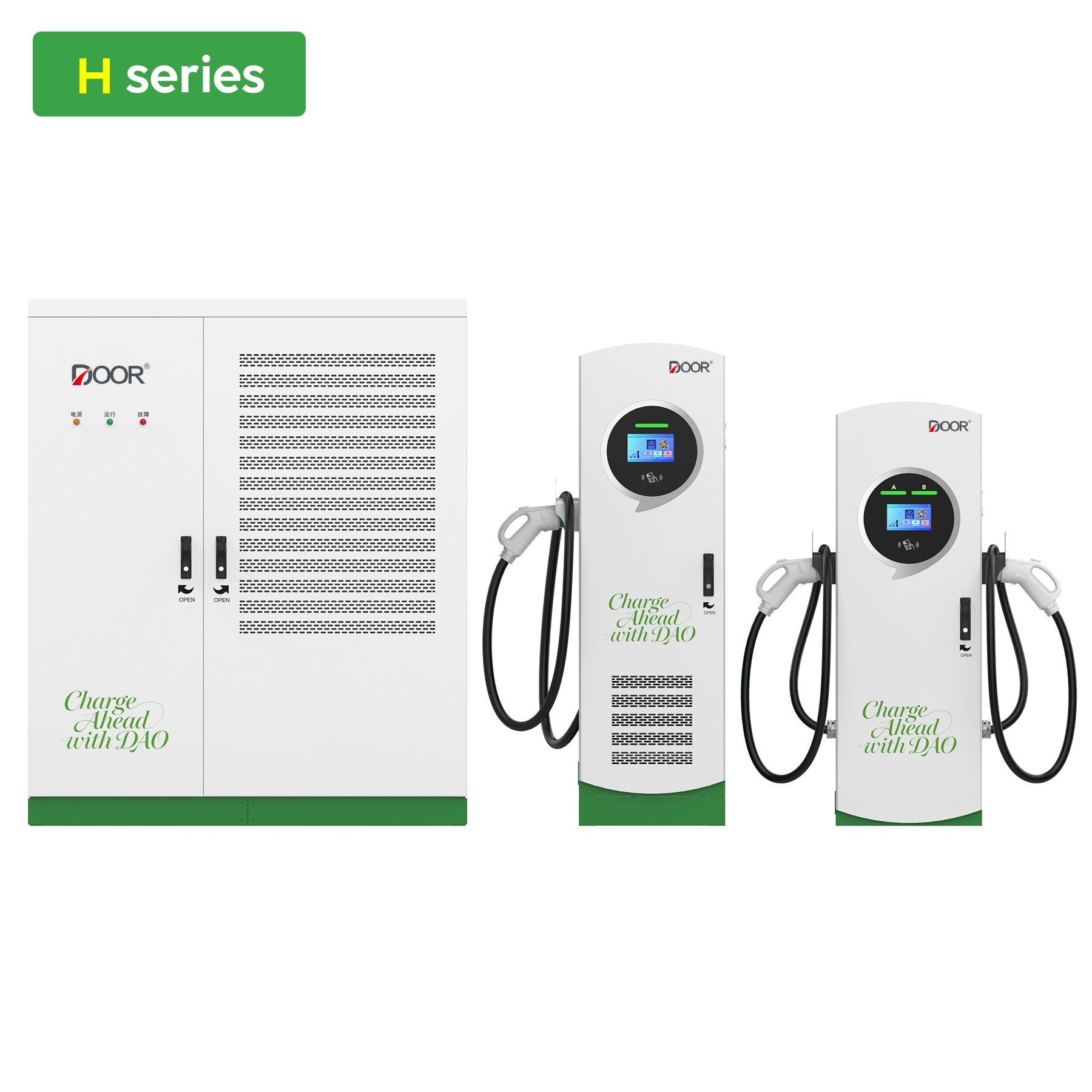

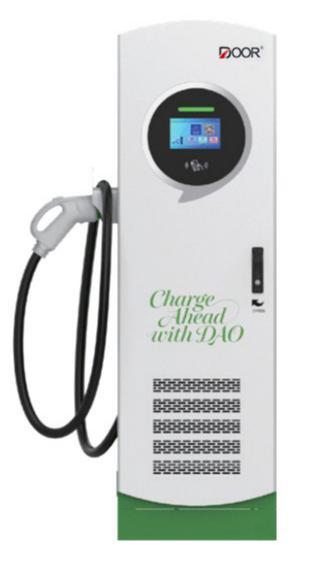

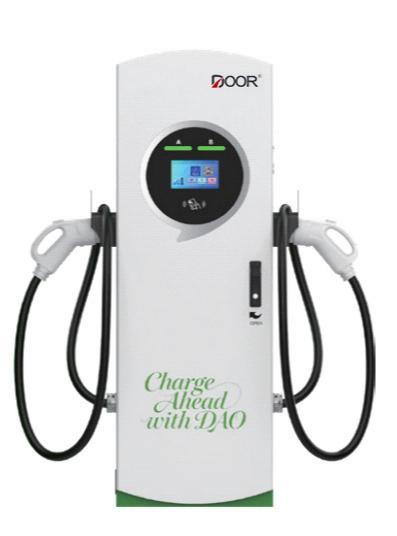

H Series DC Chargers

Engineered for large-scale cluster charging, delivering high-power density and intelligent power management for demanding commercial infrastructure.

1.Centralized Power Pool

Power modules concentrated in a centralized pool with distributed dispensing terminals – shared power pool across the entire station.


2.Dynamic Load Balancing

Real-time intelligent power allocation maximizes resource utilization, accelerates vehicle turnover, and ensures optimal efficiency across all connected chargers.


3.Independent Cooling + Modular Redundancy

Dedicated cooling ensures stability under high-load cluster scenarios. Modular redundancy means single module failure won't affect the station – enabling uninterrupted operation.


4.All-Weather Versatility

Suitable for indoor and outdoor deployment. Ideal for large-scale cluster stations (outdoor installation requires higher engineering standards).


5.Better Long-Term ROI & Higher Throughput

Higher upfront cost, but long-term efficiency and returns outperform all-in-one solutions. Optimized power distribution significantly increases daily charging throughput and vehicle turnover – more vehicles served, more revenue generated. Perfect for commercial garages, public hubs, ultra-fast stations, and high-volume projects.
