Outdoor Waterproof Drone Signal Jammer 240W Powerful 2000m Long Distance Anti-Drone System
Outdoor Waterproof Drone Signal Jammer 240W Powerful 2000m Long Distance Anti-Drone System
Outdoor Waterproof Drone Signal Jammer 240W Powerful 2000m Long Distance Anti-Drone System
Outdoor Waterproof Drone Signal Jammer 240W Powerful 2000m Long Distance Anti-Drone System
Specifications
Brand Name :
Sacontelecom
Model Number :
SA-WDJ04
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
3pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal,method
Supply Ability :
10000pcs per month
Delivery Time :
7 working days after receive payment
Packaging Details :
Ployfoam and Carton
Product Name :
Outdoor waterproof drone jammer
Output Power :
240watt
Jamming Range :
Up to 2000m
Power consumption :
500w
Frequencies :
5.8G GPS
Weight :
28kgs
Description
Outdoor Drone Signal Jammer Waterproof 240w Powerful 2000m Long Distance
Waterproof 240w Powerful 2000m Long Distance Outdoor Drone Signal Jammer Factory Manufacturer
Outdoor waterproof drone jammer.pdf
Product Description

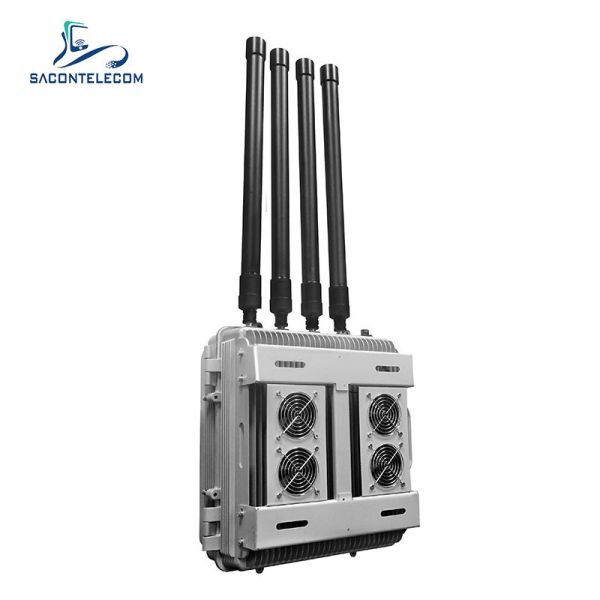

This is high-power stationary drone countermeasure equipment. It adopts cast aluminum chassis as the main machine shell, which is wear-resistant, scratch-resistant, waterproof, and is more conducive to heat dissipation.
To achieve better interference effects, this machine replaces the original omnidirectional fiberglass antenna with a multi-port plate-shaped directional antenna. The combination of four directional antennas enables omnidirectional interference capability. The interference range reaches 1000-2000 meters, with adjustable frequency and power based on shielding requirements. Customization is supported.
Key Features
  • IP65 level waterproof rating
  • Omni high gain antennas
  • Long distance coverage up to 2000m range
  • 24/7 continuous operation with unmanned monitoring
  • Effective RF jamming module with separate modulation
  • Computer monitoring functionality
  • Automatic operation
  • Forces drone return to take-off location
  • OEM and ODM services available
Technical Specifications
Product Type & Model SA-WDJ04 Counter Drone Solution Anti Drone System
Jamming Range 1000-2000 meter radius
Working Channels 2.4GHz: 2400-2485MHz, 120W, 51±1dB
2.4GHz: 2400-2485MHz, 40W, 46±1dB
5.8GHz: 5725-5850MHz, 30W, 45±1dB
5.8GHz: 5725-5850MHz, 30W, 45±1dB
Total Output Power 220W
Direction Omnidirectional 360 Degree
Body Size Body 45×35×25 CM (antenna 6×2 CM)
Body Weight 25.0 kg
Working Temperature -20℃ to 75℃
Working Humidity 35-95%
Power Consumption ≤600W
Power Input AC110V-240V
Power Output DC 24V / 25A
Applications
Suitable for meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, buses, and other locations requiring silence, confidentiality, and information security.
For special purpose locations such as hospitals and gas stations, field testing is recommended to ensure no interference with normal equipment operation.
Product Advantages
  • All-in-one design with 20 channel capability, customizable for special frequency ranges
  • High output power up to 45W total, jamming range up to 40m (dependent on local signal strength)
  • External omnidirectional antennas covering all TX frequencies (downlink only)
  • Includes car storage battery charger (DC12V) for vehicle use
  • Built-in efficient cooling system for continuous operation
  • Individual band adjustment or deactivation without affecting other bands
  • Independent module design with separate frequency sources for easy maintenance
  • 2-5 meter infrared remote control for power on/off operation
Package Contents
  • 1 piece waterproof drone jammer
  • 4 pieces omnidirectional antennas
Outdoor Waterproof Drone Signal Jammer 240W Powerful 2000m Long Distance Anti-Drone System
