220W High Power Drone Signal Jammer with 2 Hours Battery Life and 100-300m Jamming Range
220W High Power Drone Signal Jammer with 2 Hours Battery Life and 100-300m Jamming Range
220W High Power Drone Signal Jammer with 2 Hours Battery Life and 100-300m Jamming Range
220W High Power Drone Signal Jammer with 2 Hours Battery Life and 100-300m Jamming Range
Specifications
Brand Name :
Sacontelecom
Model Number :
SA-006M-D
Certification :
ISO9001
Place of Origin :
China
MOQ :
3pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
500pcs/month
Delivery Time :
15 work days after receive payment
Packaging Details :
Packed in carton firstly, and then reinforced with wooden case for outer packing
Product Name :
220w UAV Drone Signal Jammer
Application :
With GPS 2.4G And 5.8G Jamming
Output Power :
220w
Jamming Range :
(100--300) meters At -75dBm
UPS Battery :
Available
Weight :
35kg
Description
220W High Power Drone Signal Jammer with 2 Hours Operation and Remote Control
220W High Power Anti Drone Signal Jammer with 2 Hours Battery Operation
Product Overview

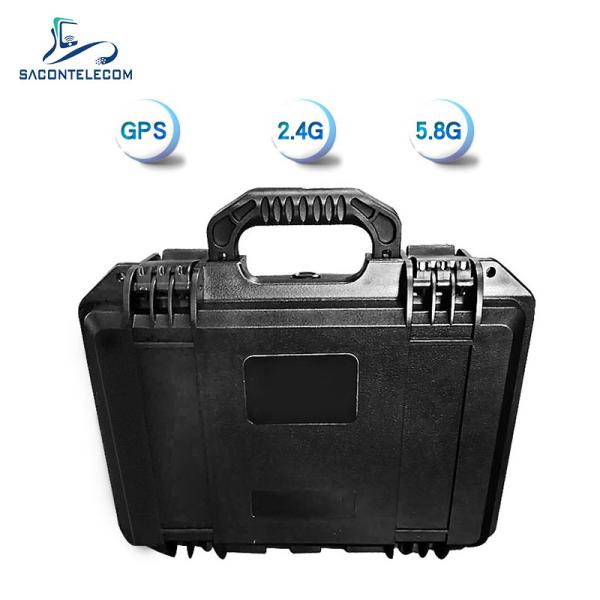

This professional-grade portable high power signal jammer is housed in a Pelican 1440 draw-bar box. It effectively jams 4G cellular phones, 3G/4G LTE/WiMAX, Wi-Fi, UHF, and VHF signals currently available in the market. The high RF power drone jammer features 6 antennas and 6 cooling fans, providing strong jamming capability. With built-in battery supporting 1.5 hours of operation, it can defend against 100% of drones and UAVs, including Phantom 4, Phantom 3 professional, advanced, standard series, and Inspire series.
Basic Specifications
  • Jam Signal Type: Mobile phone 3G/2G GSM CDMA DCS 4G LTE + Wi-Fi 2.4G signals
  • Output Power: Total 220W (30-50W per band)
  • Jam Radius: 100-1000 meters (GPS signal up to 1000m)
  • Power Supply: 110-240V AC to 27V DC
  • Cooling System: High efficiency aluminum alloy radiator + 6 cooling fans
  • Working Time: Continuous operation (built-in AC power 27V DC and battery 27V/40Ah for 1.5 hours)
  • Product Size: Pelican case 1440: 500×305×457mm (excluding antenna)
  • Product Weight: Approximately 30kg (with Omni antennas)
  • Packing Contents: Jammer host ×1, battery charger ×1, antenna ×6
Key Advantages
  • Total output power of 220W with optional high gain 5-10dBi Omni or panel directional antennas
  • Each module features five indication lights showing power, run status, and alarm (perfect VSWR alarm system with full circuit protection)
  • Each unit can jam up to 6 frequency bands simultaneously with adjustable power from maximum to off
  • 100% safe VSWR over protection (isolator) for each module
  • Large aluminum alloy shell with 6 cooling fans for continuous operation
  • Built-in 27V/40Ah battery provides 1.5 hours continuous operation with LED screen display
  • Selection of antennas provides flexibility for jamming coverage requirements
OEM Customization Services
Customizable frequency ranges include: 4G LTE WiMAX, Wi-Fi 2.4GHz, 5.8GHz, 3.6GHz, GPS L1-L5. Silkscreen OEM services are available.
Technical Parameters
Channel Output Port Frequency Range Output Power
1 GPS/Glonass L1+B1 1560-1620MHz 47.5dbm
2 GPS L2+L5+B2B3 1170-1280MHz 47.5dbm
3 RC433 2110-2170MHz 47.5dbm
4 RC868 or 912 2500-2690 or 2300-2400MHz 47.5dbm
5 RC2.4G 2400-2500MHz 43dbm
6 RC5.8G 5725-5850MHz 43dbm
Option CDMA 850-894MHz 47.5dbm
PCS - 1920-1990MHz 47.5dbm
3G - 2110-2170MHz 47.5dbm
4G LTE 2600 - 2500-2690 MHz 47dbm
4G LTE 700 - 700-803 MHz 47dbm
  • Power Supply: AC adapter 50 to 60Hz (110 or 240V AC/27V DC)
  • Battery: 27V/40Ah
  • Dimension: 500×305×457mm (excluding antenna)
  • Packing Size: 700×500×600mm
  • Net Weight: 25kg
  • Gross Weight: 30kg
  • Working Temperature: -30 to 60℃
  • Total Power: 220W
  • Shielding Radius: 100-300 meters at -75dBm (varies with signal strength)
  • Warranty: One year from delivery date
Applications
Suitable for meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, and bus stations.
220W High Power Drone Signal Jammer with 2 Hours Battery Life and 100-300m Jamming Range
