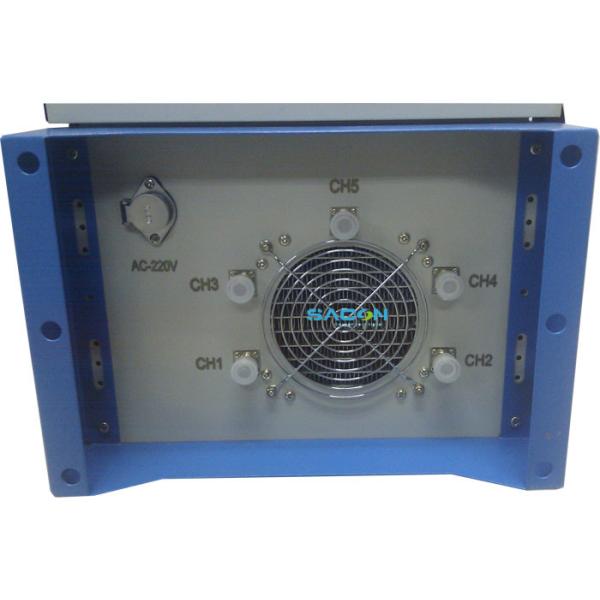

Outdoor Waterproof Drone Signal Jammer with 215W Power and 5 Bands for UAV Neutralization
Outdoor Waterproof Drone Signal Jammer with 215W Power and 5 Bands for UAV Neutralization
Outdoor Waterproof Drone Signal Jammer with 215W Power and 5 Bands for UAV Neutralization
Outdoor Waterproof Drone Signal Jammer with 215W Power and 5 Bands for UAV Neutralization
Specifications
Brand Name :
Sacontelecom
Model Number :
SA-005D-H
Certification :
ISO9001
Place of Origin :
China
MOQ :
3pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
500pcs/month
Delivery Time :
15 work days after receive payment
Packaging Details :
Packed in carton firstly, and then reinforced with wooden case for outer packing
Product Name :
Outdoor waterproof drone jammer
Jamming Frequency :
GPSL1, GPSL2, 2.4G, 5.8G, 900MHZ
Work Time :
24 Hours
Output Power :
215w
Jamming Range :
Up to 500m
Weight :
30kg
Description
Outside Waterproof Drone Signal Jammer 5 Bands For Aircraft / Prison, 215w Power
Product Overview

The SA-005D-H Drone Jammer is engineered to neutralize unauthorized drones and aircraft up to 500 meters away, preventing them from entering secured fields and campuses. The system utilizes directional antennas to block all radio communication channels, including GPS signals and remote control signals, causing the drone to drift away and lose communication with its operator.

Key Functions

Effective interference with UAV remote-control signals at 2400MHz, GPS L1 and L2 signals, 900MHz signals, and transmission signals at 5800MHz.

Product Features
  • High integration & stable operation with VCO technology
  • Highly effective power & long jamming distance
  • Separate control of each module for convenient operation
  • High quality tubular radiator for effective heat dissipation
  • Import components with moderating circuit-starting design to prevent spark during power on/off
Technical Parameters
Channel Working Frequency Output Power (±1dBm)
2.4G 2400-2485MHz 47 dBm
5.8G 5725-5850MHz 41.7 dBm
GPS L1 1573-1607MHz (GPS, GLONASS) 47 dBm
GPS L2 1225-1250MHz (GPS, GLONASS) 47 dBm
900M 902-928MHz 47 dBm
Total Output Power: 215W
Power Consumption: 700W
Power Supply: AC220V, or 110V, DC28V
Main Engine Weight: 30Kg
Size: 650×350×300mm
Antenna Options: Omni antenna or directional panel antenna
Jammer Module Number: 5
Cooling System: Systematic Smart Cooling System
System Protection: VSWR Protection
Jamming Source: Frequency Scan Technology
Humidity: 30%-95%
Running Temperature: -10ºC to +50ºC
Jamming Range: Up to 500M (depending on mobile network signal density)
Applications
  • Prisons and detention facilities
  • Airports and aviation security
  • Scientific research centers
  • Interrogation rooms and courthouses
  • Labor camps and correctional facilities
  • All important locations requiring protection from unauthorized aerial photography by UAVs
