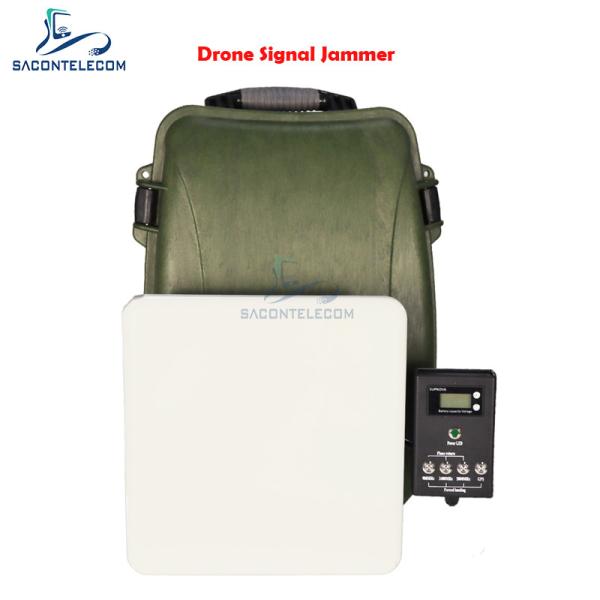

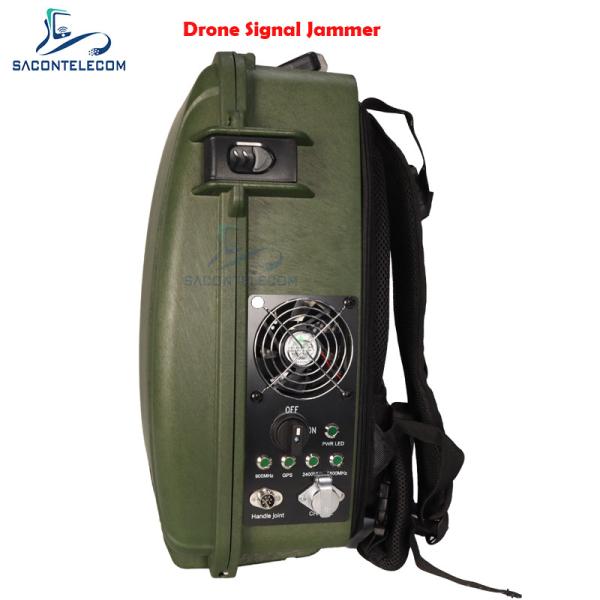

200W High Power Backpack Drone Signal Jammer with 1500m Distance and Wide Frequency Coverage
200W High Power Backpack Drone Signal Jammer with 1500m Distance and Wide Frequency Coverage
200W High Power Backpack Drone Signal Jammer with 1500m Distance and Wide Frequency Coverage
200W High Power Backpack Drone Signal Jammer with 1500m Distance and Wide Frequency Coverage
200W High Power Backpack Drone Signal Jammer with 1500m Distance and Wide Frequency Coverage
200W High Power Backpack Drone Signal Jammer with 1500m Distance and Wide Frequency Coverage
200W High Power Backpack Drone Signal Jammer with 1500m Distance and Wide Frequency Coverage
200W High Power Backpack Drone Signal Jammer with 1500m Distance and Wide Frequency Coverage
Specifications
Brand Name :
Sacontelecom
Model Number :
SA-DJ03-Plus
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal,method
Supply Ability :
10000pcs per month
Delivery Time :
15 working days after receive payment
Packaging Details :
Flight Case
Product Name :
IED Rcied Jammer
Output Power :
175w
Jamming Range :
500-800m using omni range Up to 1000-1500m using directional antennas
Internal Li-lon battery - :
Continues amplifying 1.5h / Standby 48 h/ Charging time 5h
Frequencies :
2.4G 5.8G GPS, 900mhz
Weight :
18kgs
Description
Backpack Drone Signal Scrambler
Wide Frequency Coverage VSWR Max 200w High Power 1500m Distance Backpack Drone Signal Jammer
Product Documentation (PDF)
Product Overview
This high-power backpack drone jammer is available in 3, 4, and 5-band configurations, effectively blocking WiFi, GPS, 900MHz, and 400MHz signals. With maximum power output of 200W, it delivers jamming ranges of 500-800m using omnidirectional antennas and up to 1000-1500m with directional antennas. Available in green and black colors, the system features built-in battery support for 1.5 hours of operation and includes a protective flight case for transport.
Key Features
  • Backpack type design with high power output and 2km effective distance
  • Optional omnidirectional or directional antennas
  • Built-in battery system
  • Easy, intuitive operation
  • VSWR and thermal protection systems
  • Included flight case for secure transport
  • OEM and ODM services available
  • Customizable frequency bands
  • 1-year manufacturer warranty
Technical Specifications
Antenna System:
  • 4 omnidirectional high-gain antennas (6-8 dBi), one per frequency band
  • Optional directional high-gain antenna (8-12 dBi) with handheld mounting
Jammer System:
Frequency Bands Output Power
1560-1610 MHz 50 W / 47±1.5dbm
2400-2500 MHz 50 W / 47±1.5dbm
5700-5900 MHz 25 W / 44±1.5dbm
902-928 MHz 50 W / 47±1.5dbm
Electrical Specifications:
  • Protection: VSWR protection, overheat protection (70° cut off, 65° resume)
  • Operational Power: 90-260 VAC / 24V DC internal power supply
  • Cooling: Forced air cooling system
  • Controls: On/Off switch with indicator + external wired remote control
  • Batteries: Internal Li-Ion 20AH
Mechanical Specifications:
  • Deployment: Rapid deployment/mobile operation
  • Casing: Rigidized backpack design
  • Weight: ≤20 Kg (main unit with battery, without antennas)
Environmental Specifications:
  • Operating Temperature: -20°C to +65°C
  • Resistance: IP52 rated
  • Relative Humidity: 5%-95% non-condensing
Package Contents
  • 1 Backpack unit
  • 4 omnidirectional antennas or 1 directional panel antenna
  • 1 remote control with command cable
  • 1 jammer antenna with built-in trigger and indicator
  • 4 RF cables and 1 command cable
200W High Power Backpack Drone Signal Jammer with 1500m Distance and Wide Frequency Coverage
