Handheld Drone Signal Jammer 2.4G 5.8G GPS Up To 500m Range 1.5kg Light Weight

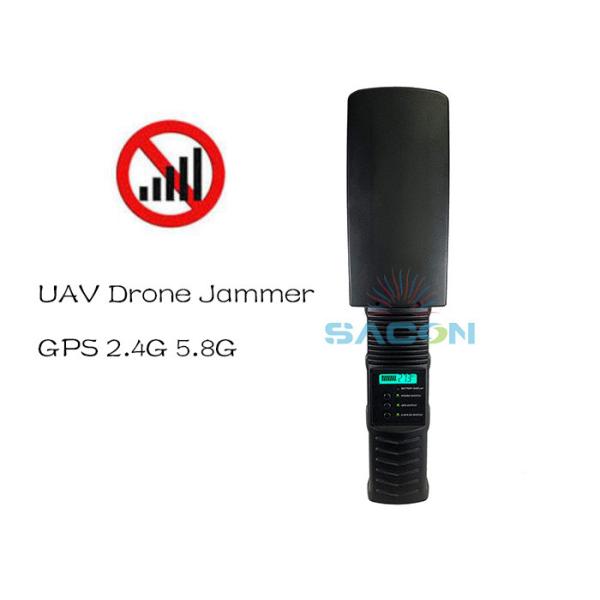

The latest mini handheld all-in-one drone signal jammer with directional antennas designed to cover 100% of drones and UAVs, including DJI Phantom 4, Phantom 3 Professional, Advanced, Standard series, and Inspire Series. This portable UAV jammer weighs approximately 1.5kg and features a compact design with 20W total power, reaching distances up to 500m.

The drone signal jammer SA-DJ05 includes a built-in battery and LED display, providing 1.5 hours of operation. It features a high gain 10dbi directional antenna and blocks 2.4G, 5.8G, and GPS frequencies (customizable). Power supply is AC110-240V, making it suitable for use in all countries.

• All-in-one handheld design with mini size and light weight
• Total output power of 20W with built-in 3-in-one high gain 10dbi directional antenna
• Shielding range of 100-500m (dependent on drone and remote control distance)
• Each unit can jam up to 3 frequency bands simultaneously with individual power switches
• LED indicator lights display power supply status
• 100% safe VSWR over protection for each module
• Built-in battery with approximately 60 minutes operating time
• Battery power, charger status, and working current displayed via LED screen

• Jam Signal Type: Drones RC2.4G/5.8GHz/GPS GLONASS L1 Signals
• Output Power: Total 20W, 5-10W each band
• Jam Radius: 100-500 meters
• Power Supply: AC110-240V to DC24V
• Cooling System: High efficiency aluminum alloy radiator
• Working Time: Built-in battery: 24V4Ah, 1.5 Hours
• Product Size: 450*105*60mm
• Product Weight: Approximately 1.5kg

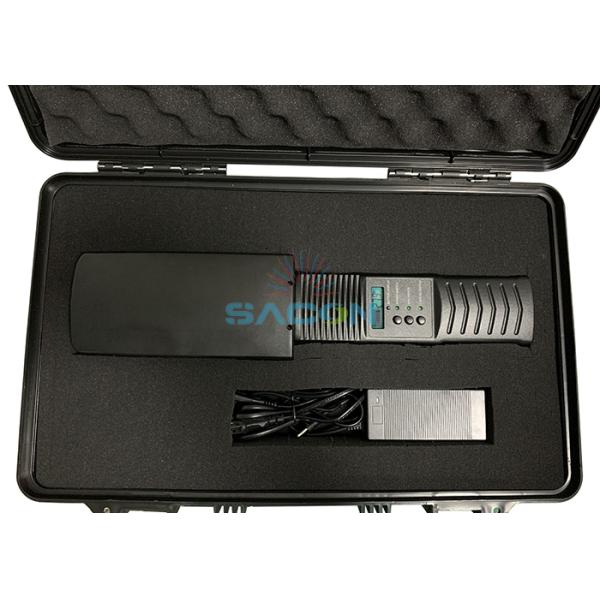

• Package Contents: Jammer Host x 1, Battery Charger x1

Additional Specifications: Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC24V); Built-in battery: 24V4Ah; Working Time: 1.5 Hours; Dimension: 450*105*60mm; Package Size: 480x115x100mm; N.W: 1.5kg; G.W: 4.0kg; Total Power: 20W; Shielding Radius: 100-500 meters@-75dBm (dependent on drone and remote control distance); Warranty: One year from delivery date.

Silkscreen OEM service can be offered for custom branding requirements.

• Protection of prohibited areas: prisons, management areas, national strategic resources projects, nuclear industry facilities, airports, political regions
• Prevention of information leakage: major criminal cases on-site, urban management law enforcement scenes, important security venues, political protection, large-scale performance rehearsals, archaeological excavation sites, large group event sites
• Combating illegal activities using unmanned aerial vehicles: trafficking, smuggling, illegal goods or information transmission
