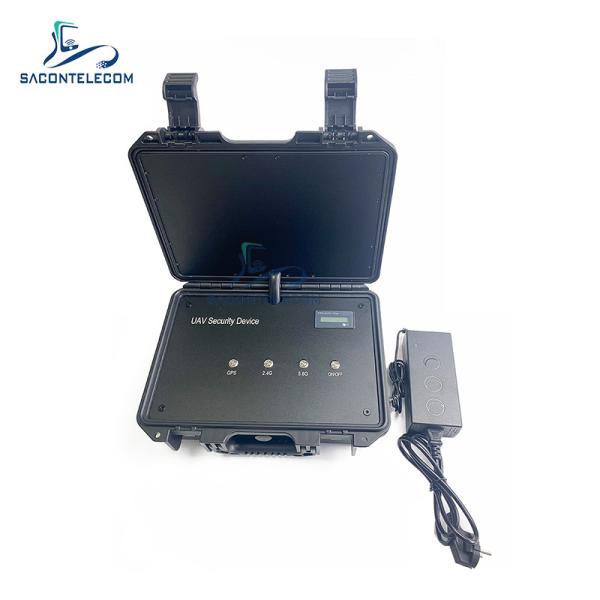

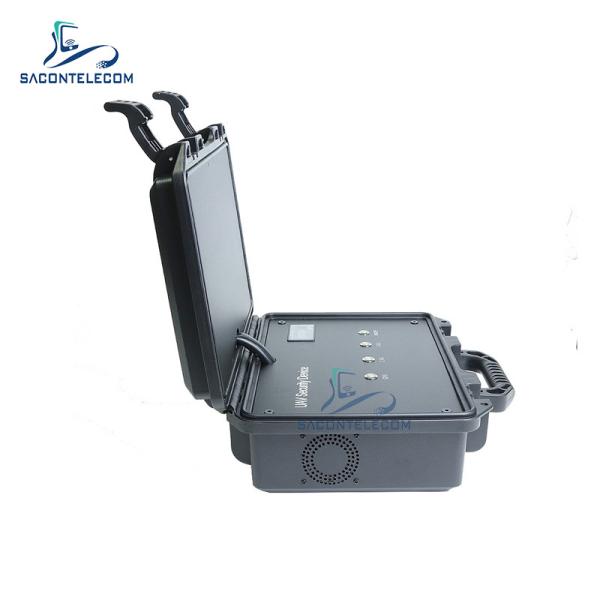

3 Bands Portable Drone Signal Jammer WiFi GPS 65w Suitcase UAV Drone Signal Blocker
Portable UAV Drone Jammer SA-DJ03-Pro features built-in high gain directional antenna and 3 independently operated RF working units. Operators can choose to disable GPS to drive the drone away or force the drone to land. The device transmits shielding interference signals within a 45-60 degree angle, providing comprehensive and stable uninterrupted shielding of GPS L1, WIFI 2.4G, and 5.8G bands in the UAV frequency band with coverage ranging from 500-1000 meters.
Key Features
- High-gain 12dbi built-in antenna with jamming range up to 500-1000 meters
- Operates for more than 30 minutes when fully charged
- Convenient power switch with power indicator for one-handed operation
- Independent control switches for stopping peeping, driving away, and forced landing functions
Technical Parameters
| Channel |
Working Frequency |
Output Power (w) |
| CH1 |
2.4G 2400-2485MHz |
25w |
| CH3 |
1.5G 1560-1610MHz |
20w |
| CH4 |
5.8G 5725-5850MHz |
20w |
Power Supply Mode: Inner battery: 24V, 5AH
Battery Working Time: 30-40 minutes
Working Temperature: -20ºC to +55ºC
Power Consumption: 210W
Weight: 5.2KG, Packing Weight: 8KG
Size: 340*270*150mm
Inner Antenna: 6-8dBi Gain
Applications
- Sensitive Areas
- Prisons
- Oil Refineries
- Bases
- Protected Areas
Packing List
- Device Drone Jammer + Adaptor
- DC24V Charger 100-250V AC/DC 24V Charger
- Package Plastic Case
