450W 8 Channels Outdoor Drone Jamming System with 1-5km Detection Range
450W 8 Channels Outdoor Drone Jamming System with 1-5km Detection Range
450W 8 Channels Outdoor Drone Jamming System with 1-5km Detection Range
450W 8 Channels Outdoor Drone Jamming System with 1-5km Detection Range
450W 8 Channels Outdoor Drone Jamming System with 1-5km Detection Range
450W 8 Channels Outdoor Drone Jamming System with 1-5km Detection Range
Specifications
Brand Name :
Sacontelecom
Model Number :
SA-ADJ08
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
TT by Bank,Western Union
Supply Ability :
5000pcs/month
Delivery Time :
within 10 days after payment
Packaging Details :
wooden case
Product name :
Detection and Jamming integrated system
Detection range :
1-5(km)
Jamming range :
1-3(km)
Detect drone types :
DJI series drones, traversing drones, and DIY image transmission drones
Detection frequency band :
860-930MHz , 1.2G,1.4GHz、2.4GHz、5.2GHz, 5.8G
Jamming output power :
450w
Power supply :
AC220V, DC24-28V
Main engine weight :
45kgs
Description
450W Powerful 8 Channels Outdoor Jamming and Detecting Integrated System
Drone Detection System

The UAV detection module serves as a comprehensive drone detection and processing platform, utilizing spectrum sensing and artificial intelligence technology to identify and classify drone flight control links and image transmission links.

Detection System Features
  • Compact and lightweight design for easy installation
  • Passive detection technology with no electromagnetic pollution
  • Real-time detection of UAV signals with intrusion early warning
  • Modular design for strong scalability and independent operation
  • Configurable sensitivity, attack duration, and RTC time settings
  • Output signal control for countermeasure equipment with duration management
  • Error code display for quick trouble and maintenance
  • Multi-unit online capability with installation position display
Detection System Specifications
Number Index Parameter Notes
1 Detect drone types DJI series drones, traversing drones, and DIY image transmission drones
2 Detection frequency band 860-930MHz, 1.2G, 1.4GHz, 2.4GHz, 5.2GHz, 5.8G
3 Detection distance 1-5km Antenna gain: 3-5 dBi (Target: DJI MAVIC Air 2)
4 Volume 167mm × 83mm × 42mm (L × W × H)
5 Weight 500 ± 5g Without antenna
6 Protection level IP40
7 Working temperature -20°C to +60°C
8 Identify response time ≤ 5 seconds
9 Supply voltage range 9-36V
10 Power dissipation 5.5 ± 0.5W
Drone Jammer System

The drone jammer provides the ultimate outdoor anti-drone solution, offering safe and simple operation for installation at houses, offices, airports, or important places. Using focused electronic counter measures, it blocks drone control, GPS, and video signals while minimizing impact on other local devices.

Technical Parameters
Channel Working Frequency Output Power (±1.5dBm)
2.4G 2400-2500MHz 51dBm (100W)
2.4G 2400-2500MHz 47dBm (50W)
5.8G 5725-5850MHz 47dBm (50W)
5.8G 5725-5850MHz 47dBm (50W)
GPS L1 1550-1620MHz 47dBm (50W)
5.2G 5150-5350MHz 47dBm (50W)
GPS L2 1170-1280MHz 47dBm (50W)
900 860-930MHz 47dBm (50W)
System Specifications
  • Total 8 bands, output power: 450W
  • Power consumption: 1000W
  • Power supply: AC220V, DC24-28V
  • Main engine weight: 45Kg
  • Size: 513 × 462 × 233mm
  • Omni antenna: 8 pieces
  • Jammer modules: 8
  • Cooling system: Systematic Smart Cooling System
  • Jamming source: Noise Technology
  • Humidity: 30%-95%
  • Running temperature: -20°C to +65°C
  • Omni jamming range: 1-3km (depending on mobile network signal density)
System Advantages
  • Detection range: 1-5 km, Jamming range: 1-3km
  • Simultaneous detection of more than 10 drones
  • Counter multiple targets simultaneously
  • Real-time monitoring of surrounding drone signals with early detection
  • Work modes: unattended and manual operation
Package Contents
  • Main Device × 1
  • Omni Fiberglass Antenna of jammer × 9 pieces
  • Detection Antenna × 2 pieces
  • Network Cable × 1
  • Power Supply Cable × 1
  • Laptop × 1
Product Images

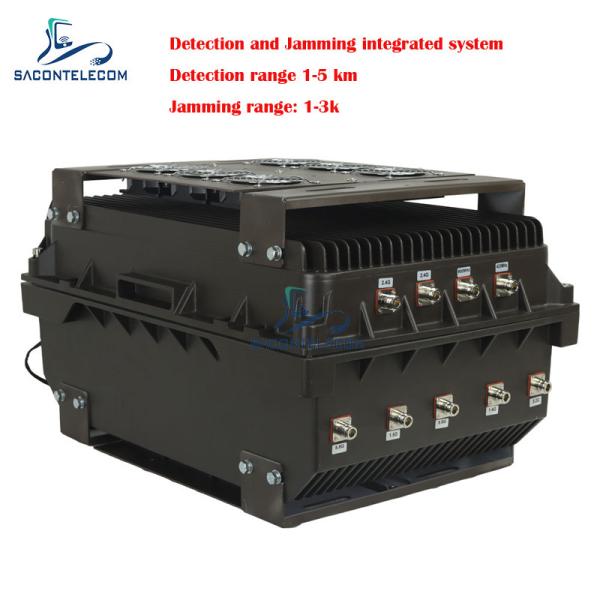

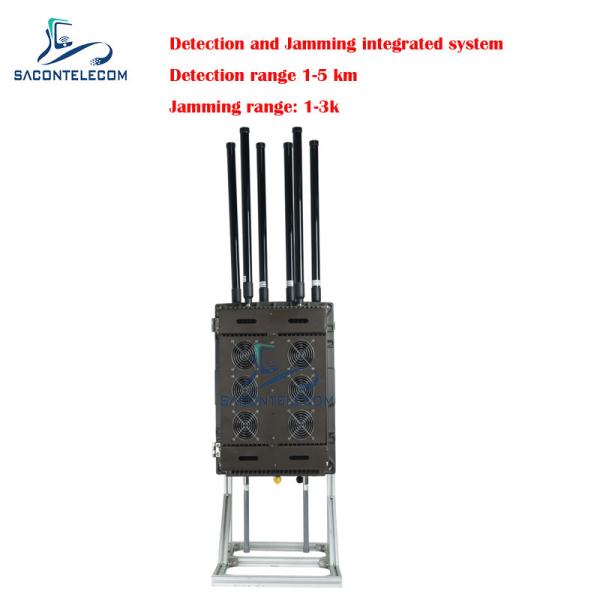

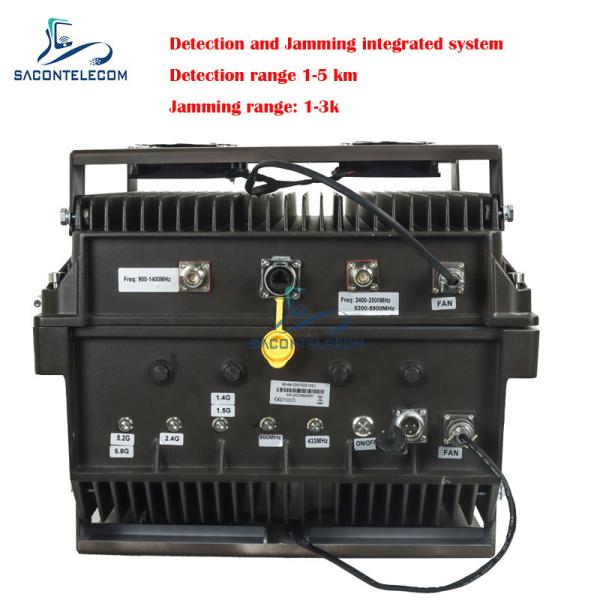

450W 8 Channels Outdoor Drone Jamming System with 1-5km Detection Range 450W 8 Channels Outdoor Drone Jamming System with 1-5km Detection Range
