3KM 5 Bands 135W High Power Portable Drone Jammer Anti Drone Jammer Blocker for UAV Signal Disruption
3KM 5 Bands 135W High Power Portable Drone Jammer Anti Drone Jammer Blocker for UAV Signal Disruption
3KM 5 Bands 135W High Power Portable Drone Jammer Anti Drone Jammer Blocker for UAV Signal Disruption
3KM 5 Bands 135W High Power Portable Drone Jammer Anti Drone Jammer Blocker for UAV Signal Disruption
3KM 5 Bands 135W High Power Portable Drone Jammer Anti Drone Jammer Blocker for UAV Signal Disruption
3KM 5 Bands 135W High Power Portable Drone Jammer Anti Drone Jammer Blocker for UAV Signal Disruption
3KM 5 Bands 135W High Power Portable Drone Jammer Anti Drone Jammer Blocker for UAV Signal Disruption
3KM 5 Bands 135W High Power Portable Drone Jammer Anti Drone Jammer Blocker for UAV Signal Disruption
Specifications
Brand Name :
Sacontelecom
Model Number :
SA-NJ06
Certification :
ISO9001
Place of Origin :
China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
20000pcs/month
Delivery Time :
7 days after payment done
Packaging Details :
Alum case
Product name :
Anti drone jammer
Frequencies :
900mhz, 1.5G 2.4G 5.2G 5.8G
Jamming distance :
2500m to 3000m（Mavica2）
Built-in battery :
24V/10A
Size :
334*223*140mm
Weight :
4.35kgs
Description
3KM 5 Bands Portable Drone Jammer Blocker 900mhz 2.4G GPS1.5G 5.2G 5.8G
Product Overview

3KM 5 Bands 900mhz 2.4G GPS1.5G 5.2G 5.8G Portable Drone Jammer Blocker

SA-NJ06 is a portable UAV drone signal jammer with 5 channels: 900mhz, GPSL1 1.5Ghz, WiFi 2.4Ghz, WiFi 5.2Ghz and WiFi 5.8Ghz. Total 135w high power provides large jamming distance up to 3km for DJI Mavica 2. Features built-in battery with 40 minutes working time after full charge, LCD display for battery capacity, and customizable frequencies and power. This handheld device weighs only 4.35kgs for easy transport and carrying.

Operating Instructions
  • 900MHz/1.6G/2.4G/5.2G/5.8G fully turned on forces UAV to land (Note: UAVs without forced landing function cannot be forced to land)
  • Turn on 900MHz/2.4G/5.2G/5.8G to lose control of drone when GPS is turned off, causing drone to return to flight
  • First select the "Band Button Switch" to determine the required counter-drone function
  • Align device front with drone - "frequency band button switch" displays blue light when working
  • Adjust direction as drone moves for better countering effectiveness
  • Monitor power display - charge when below 30% capacity
Function Modes
Function State Drone Type Notices
Return Open 900MHz/2.4G/5.2G/5.8G Consumer Drones Point device at drone to drive away and return to take-off position
Forced Landing Open all 900MHz/1.6G/2.4G/5.2G/5.8G Consumer Drones Not possible for drones without forced landing function in flight control system
Technical Specifications
Channel Working Frequency Output Power (w)
CH1 2.4G 2400-2485MHz 40w
CH2 5.8G 5725-5850MHz 50w
CH3 GPSL1, Glonass, BDS 1550-1620MHz 10w
CH4 5.2G 5150-5250MHz 25w
CH5 900MHz 860-930MHz 10w
Battery Capacity: 24V10A/H
Counter Ability: Return
Total Output Power: 135W
Battery Working Time: 40 mins
Jamming Distance: 2.5~3km (Mavica2)
Counter Angle: 30 degree
Working Temperature: -20ºC to +55ºC
Charging Method: 29.4V charging adapter
Weight: 4.35kgs
Size: 334*223*140mm
Applications

Airports, Public Procuratorate System, Prisons, Detention Centers, Rehabilitation Centers, Secrecy Agencies, Forces, Large Competitions Events, concerts, important meetings, government agencies, anti-terrorist fields and other important locations and facilities requiring airspace secrecy and drone control.

Package Contents
  • Drone signal jammer
  • Power adapter
  • Aluminum case

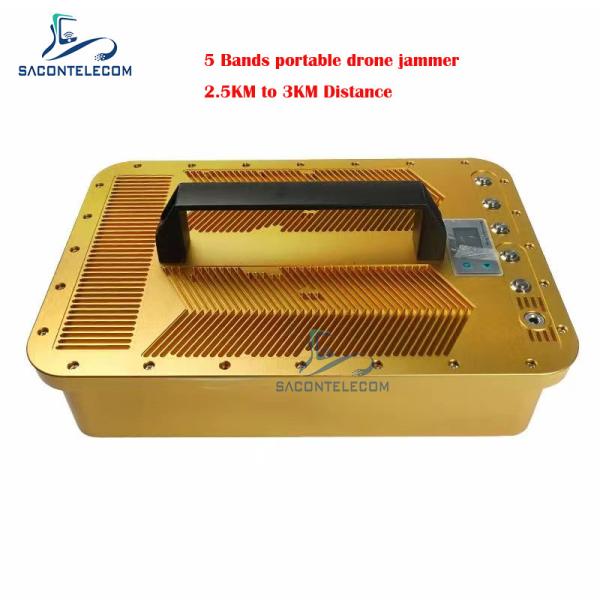

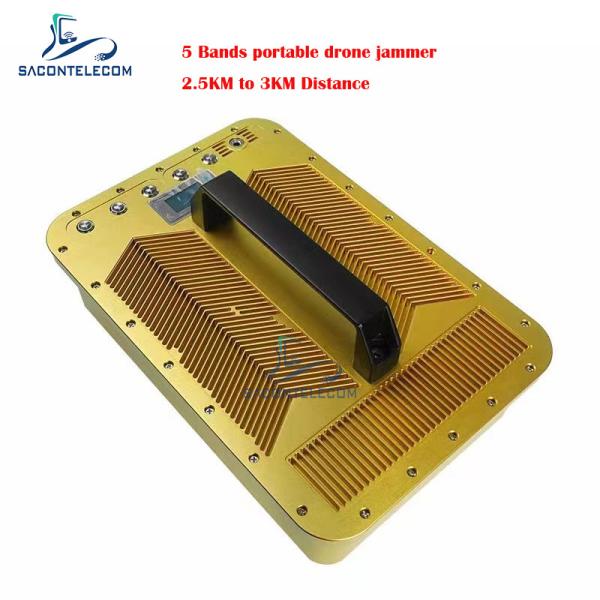

Product Image
3KM 5 Bands 135W High Power Portable Drone Jammer Anti Drone Jammer Blocker for UAV Signal Disruption
