1000L Stainless Steel Jacketed Mixing Tank with Heating Cooling Temperature Control for Chemical
1000L Stainless Steel Jacketed Mixing Tank with Heating Cooling Temperature Control for Chemical
1000L Stainless Steel Jacketed Mixing Tank with Heating Cooling Temperature Control for Chemical
1000L Stainless Steel Jacketed Mixing Tank with Heating Cooling Temperature Control for Chemical
Specifications
Material :
SS304 / SS316L
Model Number :
VC-JT-1000L
Application :
Chemical, Food, Daily Chemical
Brand Name :
Vison Chemicals
Heating Method :
Steam / Thermal Oil / Electric
Capacity Range :
500L to 10,000L
MOQ :
1 Set (Sample Order Welcome)
Delivery Time :
30-45 Days (Expedited)
Temperature Control :
PID, 1 C precision
Payment Terms :
T/T 30% Advance + L/C at Sight
After-sales Service :
Online Support, Field Installation
Certification :
CE, ISO9001
Cooling Method :
Chilled Water / Glycol
Price :
Custom Quote
Agitator Type :
Anchor, Paddle, Turbine
Supply Ability :
20+ Sets/Month
Warranty :
1 Year
Place of Origin :
Guangzhou, China
Insulation :
50mm Rockwool + SS304 Cladding
Packaging Details :
Export Plywood Case with Moisture Barrier
Description

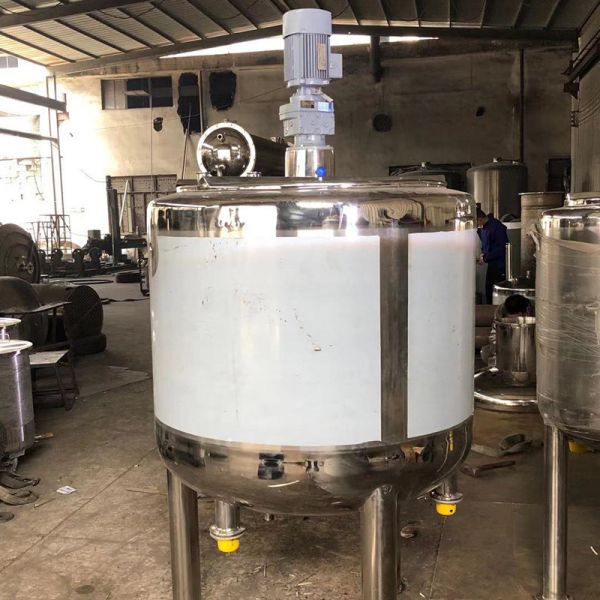

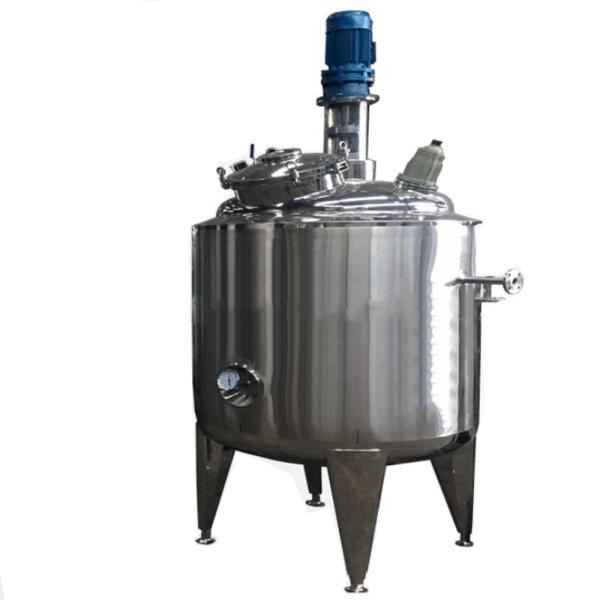

1000L Stainless Steel Jacketed Mixing Tank with Heating and Cooling Temperature Control

1000L double-layer jacketed mixing tank with integrated heating and cooling capability — designed for temperature-sensitive batch processes requiring precise thermal control in chemical, food, and daily chemical production.

Key Features

Dual-Mode Jacket One jacket for both heating (steam, thermal oil, or electric) and cooling (chilled water) — rapid temperature transitions without needing two separate vessels.
PID Temperature Control Digital PID controller with PT100 sensor — maintains setpoint within 1 C. Programmable heating/cooling ramps for multi-step process profiles.
Heavy-Duty Agitator 3 kW motor with gearbox, variable speed — handles viscosities up to 100,000 cP. Custom impeller (anchor, paddle, or turbine) to match your material.
Full Insulation 50mm rockwool with SS304 outer cladding — energy-efficient operation with safe exterior temperature.

Technical Specifications

Capacity 1000L (500L to 10,000L available)
Material SS304 / SS316L (inner), carbon steel (jacket)
Heating Temp Up to 200 C
Cooling Chilled water or glycol, down to 5 C
Agitator Power 3 kW, variable speed 0-120 rpm
Control Precision 1 C (PID)
Insulation 50mm rockwool + SS304 cladding

Applications

Industry Process
Chemical Exothermic mixing, resin cooling, temperature-controlled blending
Daily Chemical Hot-process detergent, soap base cooling, shampoo heating
Food Syrup cooking, chocolate tempering, sauce pasteurization
Temperature Control Expert — Designed for processes where precise heating and cooling are critical to product quality.
CE & ISO9001 Certified — Hydrostatic tested, documented inspection.
Sample Order Welcome — MOQ: 1 Set.
Contact Us

Email: minvison@163.com
Web: www.mixing-tanks.com

Specify your temperature requirements and viscosity — we will size the right tank and agitator.

#JacketedMixingTank #HeatingCoolingTank #TemperatureControlTank #StainlessSteelTank #ChemicalMixingTank #DoubleLayerTank #InsulatedTank #SS316LTank #BatchMixing #VisonChemicals
