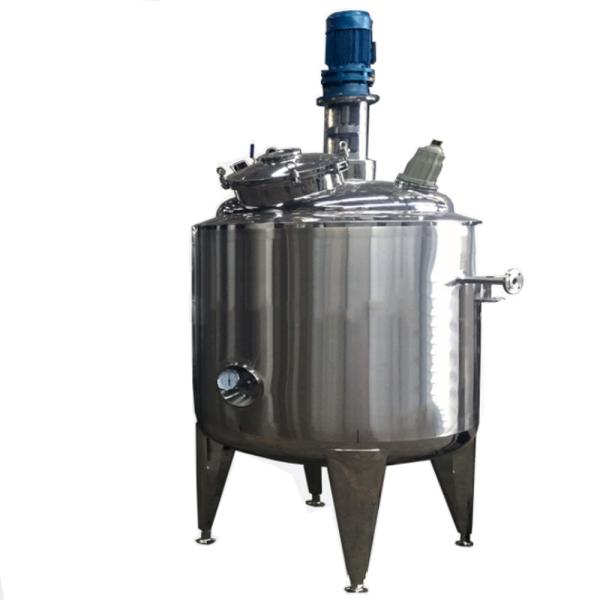

500L Stainless Steel Mixing Tank with Agitator and Heating Jacket for Chemical Food Mixing
500L Stainless Steel Mixing Tank with Agitator and Heating Jacket for Chemical Food Mixing
500L Stainless Steel Mixing Tank with Agitator and Heating Jacket for Chemical Food Mixing
500L Stainless Steel Mixing Tank with Agitator and Heating Jacket for Chemical Food Mixing
Specifications
Material :
SS304 / SS316L
Model Number :
VC-MT-500L
After-sales Service :
Online Support, Field Installation & Commissioning
Certification :
CE, ISO9001
Application :
Chemical, Food, Cosmetic, Daily Chemical
Brand Name :
Vison Chemicals
Heating Method :
Steam / Thermal Oil / Electric
Insulation :
50mm Rockwool + SS304 Cladding
MOQ :
1 Set (Sample Order Welcome)
Delivery Time :
30-45 Days (Expedited)
Lid Configuration :
Open Top, Hinged Lid, or Fully Sealed
Payment Terms :
T/T 30% Advance + L/C at Sight
Agitator Type :
Anchor, Paddle, Turbine, Propeller
Price :
Custom Quote
Tank Volume :
100L, 300L, 500L, 1000L, 2000L, 5000L
Supply Ability :
20+ Sets/Month
Warranty :
1 Year
Place of Origin :
Guangzhou, China
Discharge Type :
2 inch Sanitary Ball / Butterfly Valve
Packaging Details :
Export Plywood Case with Moisture Barrier
Description

500L Stainless Steel Mixing Tank with Agitator and Heating Jacket for Chemical & Food Mixing

Versatile 500L stainless steel mixing tank with double-layer heating jacket and customizable agitator — an essential workhorse for chemical, food, cosmetic, and daily chemical batch processing.

Key Features

Material Grade SS304 or SS316L for product contact parts — corrosion-resistant, food-grade, easy to CIP clean. Carbon steel outer jacket for cost efficiency.
Heating Jacket Double-layer design with steam, thermal oil, or electric heating — uniform temperature distribution up to 200 C. Can also run cooling water for temperature-controlled processes.
Agitator Custom impeller selection — anchor, paddle, turbine, or propeller — matched to viscosity. Variable speed drive for precise mixing control.
Insulation 50mm rockwool insulation with SS304 cladding — minimizes heat loss and keeps outer surface safe to touch.
Discharge Bottom-center 2 inch sanitary ball valve or butterfly valve — complete drainage with minimal dead volume.

Technical Specifications

Capacity 500L (also available: 100L, 300L, 1000L, 2000L, 5000L)
Material SS304 / SS316L (inner), carbon steel (jacket)
Design Pressure Atmospheric or 0.3 MPa (jacket)
Heating Temp Up to 200 C
Agitator Power 1.5 kW, variable speed 0-60 rpm (adjustable)
Insulation 50mm rockwool + SS304 cladding
Lid / Cover Open top, hinged lid, or fully sealed (custom)
Discharge Valve 2 in sanitary ball valve or butterfly valve

Industries & Applications

Industry Typical Use
Chemical Resin mixing, adhesive blending, solvent-based formulations
Food & Beverage Syrup preparation, sauce mixing, beverage blending
Cosmetics Cream base preparation, lotion blending, gel mixing
Daily Chemical Detergent mixing, liquid soap preparation, shampoo blending

Why Choose Vison Chemicals

Direct Manufacturer — Factory-direct pricing with no middleman markup. Visit our Guangzhou facility anytime.
Flexible Customization — Choose material grade, agitator type, heating method, and lid configuration to match your process.
CE & ISO9001 Certified — Every tank undergoes hydrostatic testing and surface finish inspection before shipment.
Sample Order Welcome — MOQ: 1 Set. Test quality before scaling up.
Contact Us

Email: minvison@163.com
Web: www.mixing-tanks.com

Tell us your capacity and process — we will recommend the right tank configuration within 24 hours.
