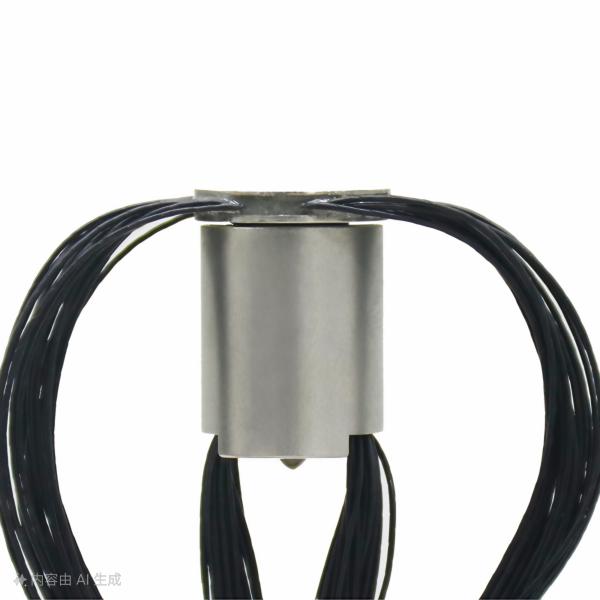

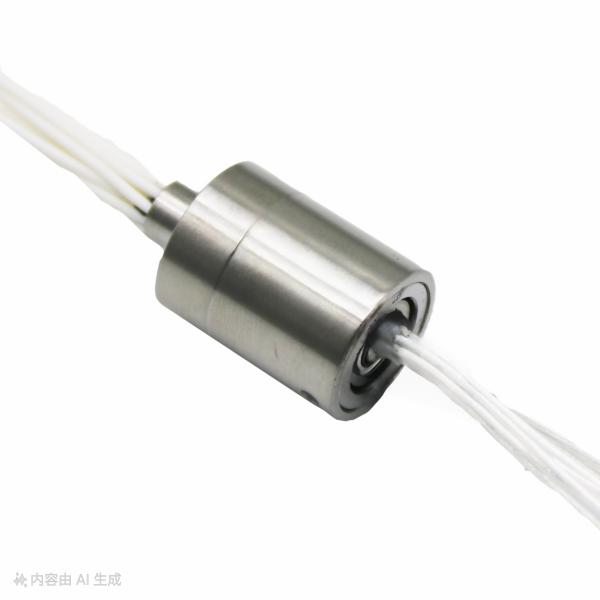

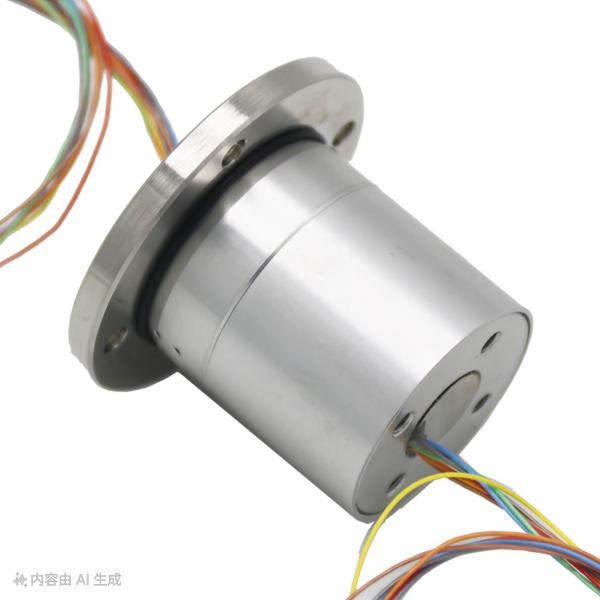

Compact Slip Ring for Medical Devices
Compact Slip Ring for Medical Devices
Compact Slip Ring for Medical Devices
Compact Slip Ring for Medical Devices
Compact Slip Ring for Medical Devices
Compact Slip Ring for Medical Devices
Specifications
Brand Name :
SPR-ing
Model Number :
SP012012-012-A
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
200~800 USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1~3 weeks
Packaging Details :
Carton
Working Temperature :
-40℃ to 70℃
Insulation Resistance :
250MΩ/250V/DC
Rated voltage/current :
0-250VDC /Max 2A
Shell material :
304 stainless steel
Dielectric Strength :
250VAC/50Hz/60s
Dynamic resistance change value :
≤10mΩ
Rated speed :
0-30 rpm
Description

Compact Slip Ring for Medical Devices

Application scenarios

Medical devices, intelligent robots, inertial navigation platforms and equipment, engineering machinery equipment, etc.

Technical Advantages of Our Slip Ring Solutions

1. Gold-to-Gold Contact Technology

- Core friction pair technology utilizing precious metal contacts

- Delivers exceptional wear resistance for ultra-long service life


2. Precision Manufacturing Excellence

- Integrated casting ensures ≤0.01mm concentricity between ring groove and bearing

- Mirror finishing achieves Ra0.02 surface smoothness for optimal contact reliability

- Maintains tight dimensional tolerances <0.01mm for consistent high performance


3. Advanced Brush System

- Proprietary near-zero pressure brush design

- Custom modulation process extends operational life by 33%


4. Compact, High-Density Design

- Space-saving multi-loop configuration

- Lightweight construction minimizes system load

- Reduces installation footprint while maintaining performance


5. Rugged Environmental Protection

- Full 304 stainless steel construction

- Superior sealing against contaminants

- Engineered for reliable operation in extreme conditions


Performance Benefits:

- Extended maintenance intervals

- Enhanced signal integrity

- Reduced system downtime

- Improved operational efficiency


Our slip rings combine precision engineering with robust materials to deliver unmatched reliability in demanding applications.

Factory View

Compact Slip Ring for Medical Devices


SP012012-012-A Ultra small slip ring

This slip ring is our latest developed and designed micro slip ring, with small size and compact structure, which can meet customers' extreme space requirements. Applied to inertial navigation systems.

Compact Slip Ring for Medical Devices

Technical parameters

Electrical specifications

Design loop

12

Insulation resistance

250MΩ/250V/DC

Rated voltage/current

0-250VDC /Max 2A

Dielectric strength

250VAC/50Hz/60s

Dynamic resistance change value

≤10mΩ

Mechanical specifications

Rated speed

0-30 rpm

Working life

2 million rpm

Operating temperature

-40℃ ~ 70℃

Operating humidity

≤80%

Contact material

Gold-gold

Shell material

304 stainless steel

Wire length

300mm

External dimensions

Outside diameter 12.5mm, length 15.9mm

Size

Compact Slip Ring for Medical Devices
