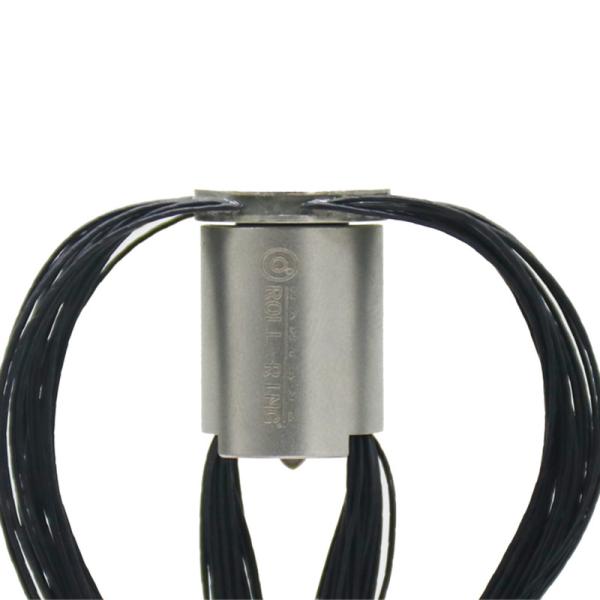

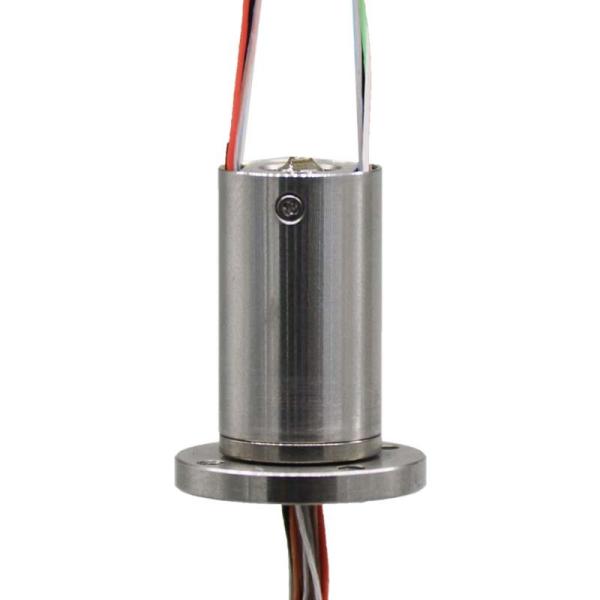

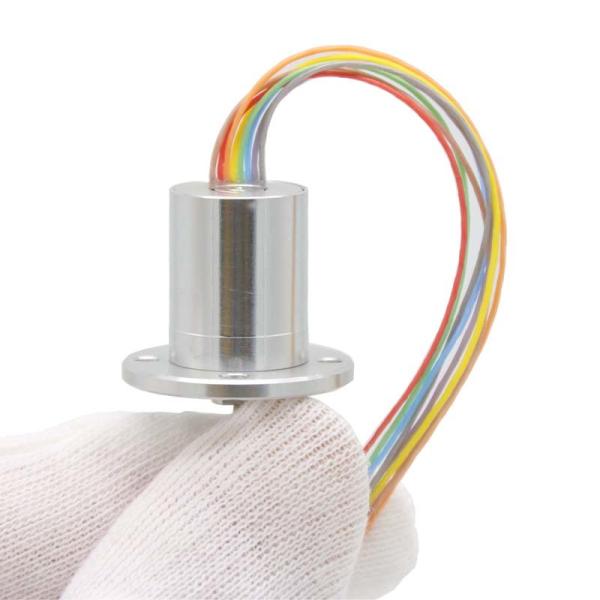

12 Loops Mini Slip Ring
12 Loops Mini Slip Ring
12 Loops Mini Slip Ring
12 Loops Mini Slip Ring
12 Loops Mini Slip Ring
12 Loops Mini Slip Ring
12 Loops Mini Slip Ring
12 Loops Mini Slip Ring
Specifications
Brand Name :
SPR-ing
Model Number :
SP012012-012-A
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
200~800 USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1~3 weeks
Packaging Details :
Carton
Working Temperature :
-40℃ to 70℃
Insulation Resistance :
250MΩ/250V/DC
Rated voltage/current :
0-250VDC /Max 2A
Shell material :
304 stainless steel
Dielectric Strength :
250VAC/50Hz/60s
Dynamic resistance change value :
≤10mΩ
Rated speed :
0-30 rpm
Description

12 Loops Mini Slip Ring

SP012012-012-A Ultra small slip ring

This slip ring is our latest developed and designed micro slip ring, with small size and compact structure, which can meet customers' extreme space requirements. Applied to inertial navigation systems.

12 Loops Mini Slip Ring

Technical parameters

Electrical specifications

Design loop

12

Insulation resistance

250MΩ/250V/DC

Rated voltage/current

0-250VDC /Max 2A

Dielectric strength

250VAC/50Hz/60s

Dynamic resistance change value

≤10mΩ

Mechanical specifications

Rated speed

0-30 rpm

Working life

2 million rpm

Operating temperature

-40℃ ~ 70℃

Operating humidity

≤80%

Contact material

Gold-gold

Shell material

304 stainless steel

Wire length

300mm

External dimensions

Outside diameter 12.5mm, length 15.9mm

Size

12 Loops Mini Slip Ring

Application scenarios

Medical devices, intelligent robots, inertial navigation platforms and equipment, engineering machinery equipment, etc.

Technical advantages:

ü Slipring's core technology - friction pair technology: gold gold contact technology, ensuring an ultra long service life.

ü Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm.

ü Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable.

ü Precision component manufacturing process: dimensional tolerance<0.01mm, high precision, and more stable performance.

ü Advanced brush wire modulation technology: close to zero pressure brush design and debugging process, extending the life of the slip ring by 1/3.

ü Small in size, with multiple loops and light weight, greatly reducing installation space and making equipment work more smoothly.

ü The slip ring adopts a solid 304 stainless steel metal structure with strong sealing performance, suitable for extremely harsh environments.
