Specifications
Brand Name :
SPR-ing
Model Number :
SP025
Place of Origin :
Shenzhen
MOQ :
1
Price :
200~800 USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1~3 weeks
Packaging Details :
Carton
Housing Material :
303 stainless steel
Designed Loop :
36 or 56
Contact Resistance :
≤10mΩ
Dielectric strength :
250VAC/50Hz/60s
Rated speed :
0-250 rpm
Working life :
10 million rpm
Contact material :
Gold-gold
Size :
66mm
Description

Product Description


Engineered for maximum reliability, this slip ring uses gold-gold contacts and a brush design with near-zero pressure to extend service life by 1/3. Precision machining and mirror-finished contacts ensure high stability and minimal dynamic resistance variation (≤10mΩ). Compact and robust, with a stainless steel shell, it withstands extreme temperatures (-40°C to 85°C) and harsh conditions. Rated 0–240VDC, max 2A, speeds up to 250 rpm.


Technical parameters

Electrical specifications

Design loop

36,56

Insulation resistance

500MΩ/500V/DC

Rated voltage/current

0-240VDC /Max 2A

Dielectric strength

250VAC/50Hz/60s

Dynamic resistance change value

≤10mΩ

Mechanical specifications

Rated speed

0-250 rpm

Working life

10 million rpm

Operating temperature

-40℃ ~ 85℃

Contact material

Gold-gold

Shell material

303 stainless steel

Boundary dimension with flange

Number of rings

The size of A

The size of B

36 rings

66mm

52.40mm

56 rings

89mm

75.30mm

36-ring combination mode

36-way 2A

4-way 5A, 28-way 2A

4-way 10 A, 20-way 2A

56 ring combination mode

56-way 2A

4-way 5A, 48-way 2A

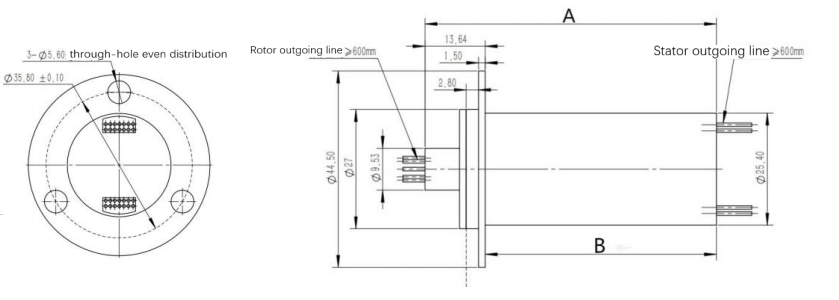

Outline Drawing


Electric Through Hole Slip Ring 56 Channel for Industrial Equipment



Support and Services
  • Expert troubleshooting assistance
  • Installation guidance and support
  • Maintenance recommendations
  • Warranty services for eligible products
Packing and Shipping
Each slip ring is securely packaged in a sturdy cardboard box with protective padding. Shipments are tracked via reliable courier services to ensure safe and timely delivery.
Frequently Asked Questions
What is the brand name of this high-speed slip ring?
The brand name is SPR-ing.
What is the model number?
Model SP040028-G05.
Where is it manufactured?
Shenzhen, China.
What is the minimum order quantity?
1 piece.
What payment methods are accepted?
L/C and T/T.
