Miniature Cooling Free High Speed Slip Ring With Stainless Steel Housing
Miniature Cooling Free High Speed Slip Ring With Stainless Steel Housing
Miniature Cooling Free High Speed Slip Ring With Stainless Steel Housing
Miniature Cooling Free High Speed Slip Ring With Stainless Steel Housing
Specifications
Brand Name :
SPR-ing
Model Number :
SP045028-G18
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
200~800 USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1~3 weeks
Packaging Details :
Carton
Working loops :
12-20-28 channels are optional
Insulation resistance :
≥110MΩ/250V/DC
Contact Material :
Gold-gold
Rated voltage/current :
80VDC/1A
Electrical strength :
≥250VAC/50Hz/60s
Rated speed :
2000-18000 rpm
Working life :
100 million revolutions
Description

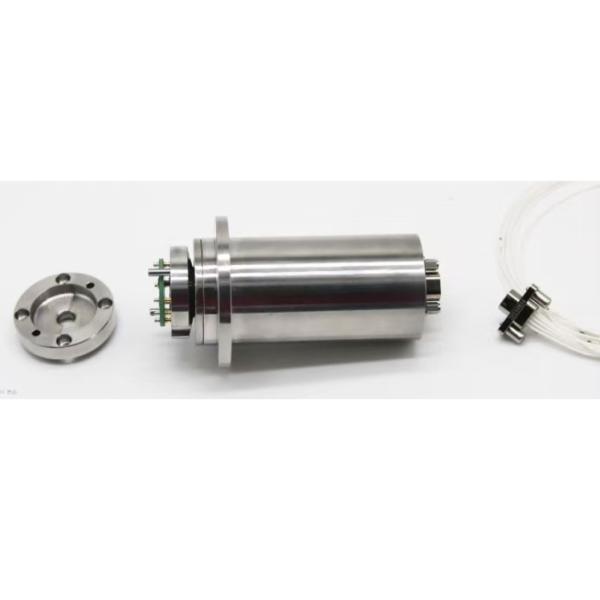

SP035008 Miniature Cooling-free High-speed Slip Ring Inducer
The high-speed slip ring inducer is specially developed for the small channel test of high-speed rotating parts, using the latest technology and technology, small size and no cooling device is the biggest feature of the product, the speed can reach up to 10,000 rpm, can work continuously, and the working life is up to 100 million rpm! The product has few loops and small size, which can meet the user's requirements of fewer measuring points and high speed, and is super cost-effective!


Technical parameters

Electrical Specifications

Design loops

≤ 8 rings

Insulation resistance

≥220MΩ/250V/DC

Maximum voltage/current

1A/240V

Electrical strength

250VAC/50Hz/60s

Dynamic resistance change value

≤10mΩ

Mechanical technical indicators

Service life

100 million revolutions

Temperature range

-20℃～80℃

Housing material

stainless steel

weight

≤500g



Technical Advantages:

● SPR-ing's core technology - friction pair technology: gold-gold contact technology ensures a long service life.

● Precision parts manufacturing process: dimensional tolerance<0.01mm, high precision, more stable performance.

● Small size and compact structure, which can meet the space constraints of users.

● No additional cooling is required, and the maximum continuous working speed can reach 10000 rpm.

● Advanced brush wire modulation process: the brush design and debugging process close to zero working pressure, the life of the slip ring is extended by 1/3.

● The slip ring is made of 304 stainless steel metal structure, which has strong sealing and is suitable for extremely harsh environments.

Support and Services:

Our Mini Slip Ring product technical support team is dedicated to providing assistance with any product-related queries or issues. Whether you have questions about installation, operation, or troubleshooting, our experts are here to help.

In addition to technical support, we offer a range of services to ensure optimal performance of your Mini Slip Ring. This includes maintenance, repair, and customization services tailored to meet your specific needs.

Packing and Shipping:

Product Packaging for Mini Slip Ring:

The Mini Slip Ring will be securely packaged in a compact box to ensure safe transportation and delivery.

Product Shipping for Mini Slip Ring:

Orders of the Mini Slip Ring will be carefully packed and shipped within 1-2 business days of purchase. Customers can choose their preferred shipping method during checkout.

FAQ:

Q: What is the brand of the Mini Slip Ring product?

A: The brand name is SPR-ing.

Q: What is the model number of the Mini Slip Ring product?

A: The model number is SP025.

Q: Where is the Mini Slip Ring product manufactured?

A: The product is made in Jiujiang.

Q: What is the minimum order quantity for the Mini Slip Ring product?

A: The minimum order quantity is 1.

Q: What are the available payment terms for purchasing the Mini Slip Ring product?

A: The payment terms accepted are L/C and T/T.
