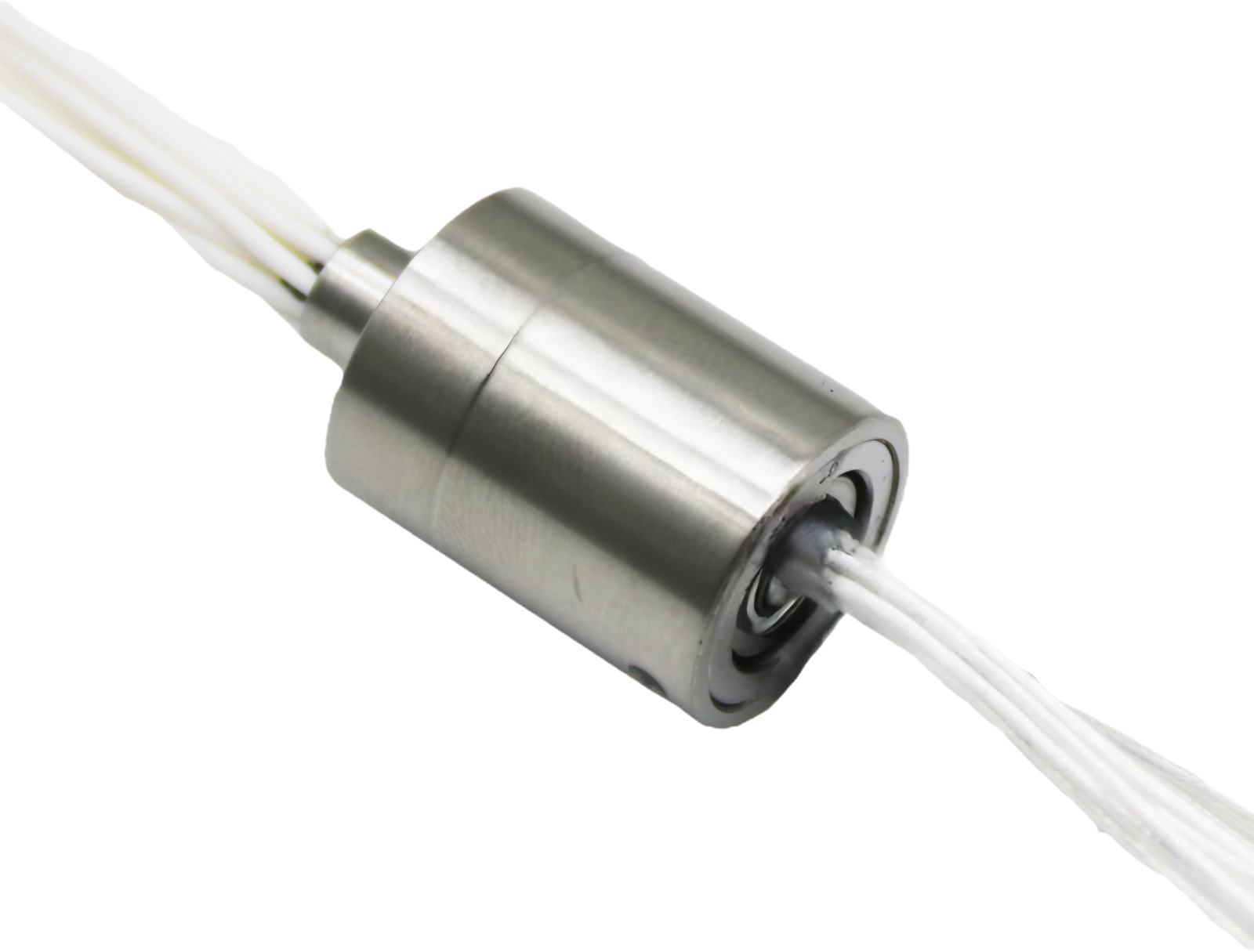

SP025 High Speed Slip Ring 12 Channels 18000 RPM Gold-Gold Contact IP65 for Radar Antenna Systems
SP025 High Speed Slip Ring 12 Channels 18000 RPM Gold-Gold Contact IP65 for Radar Antenna Systems
SP025 High Speed Slip Ring 12 Channels 18000 RPM Gold-Gold Contact IP65 for Radar Antenna Systems
SP025 High Speed Slip Ring 12 Channels 18000 RPM Gold-Gold Contact IP65 for Radar Antenna Systems
SP025 High Speed Slip Ring 12 Channels 18000 RPM Gold-Gold Contact IP65 for Radar Antenna Systems
SP025 High Speed Slip Ring 12 Channels 18000 RPM Gold-Gold Contact IP65 for Radar Antenna Systems
Specifications
Model Number :
SP025
Rated Voltage :
80VDC
MOQ :
1 Piece
Payment Terms :
T/T, L/C, PayPal, Western Union
Supply Ability :
3000 Pieces per Month
Operating Speed :
18000 RPM
Rated Current :
1A
Contact Material :
Gold-Gold
Ingress Protection :
IP65
Concentricity :
≤0.01mm
Place of Origin :
Shenzhen, China
Housing Material :
304 Stainless Steel
Starting Torque :
<2 N.cm
Surface Finish :
Ra0.02
Number of Channels :
12
Brand Name :
SPR
Delivery Time :
3 working days for sample, 10-20 days for bulk orders
Certification :
ISO 9001:2015, CE, RoHS
Price :
USD 180-350 / Piece
Packaging Details :
Anti-static bag with custom foam insert in export-grade corrugated carton
Working Life :
100 Million Revolutions
Description

SP025 High Speed Slip Ring for Radar Antenna Systems

12-20-28 Channels High Speed Slip Ring Rated Voltage/Current and Integrated Pouring Process for 80VDC/1A

Product Attributes

AttributeValue
Precision Parts Manufacturing ProcessDimensional tolerance <0.01mm for high-precision components
Advanced Brush Filament Modulation ProcessInnovative brush design for extended lifespan
Compact DesignSmall size and compact structure for adaptability
Working Life100 million revolutions
High-Speed OperationOperates at 18000 rpm without cooling system
Rated Voltage/Current80VDC/1A
Contact MaterialGold-gold contact material
Ingress ProtectionIP65
Housing Material304 Stainless Steel
Integrated Pouring ProcessConcentricity between ring groove and bearing ≤0.01mm
Mirror Processing TechnologyContact surface finish Ra0.02 for reliable electrical contact
Number of Channels12

Application areas: Radar antenna rotating platforms, military radar systems, communication antenna rotators, continuous rotation signal transmission.
