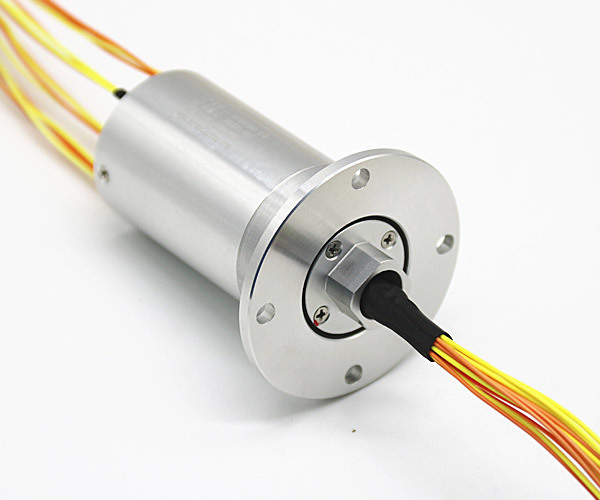

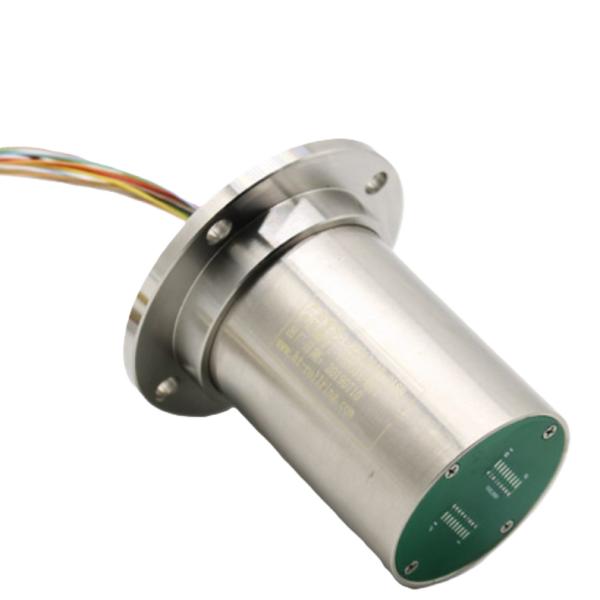

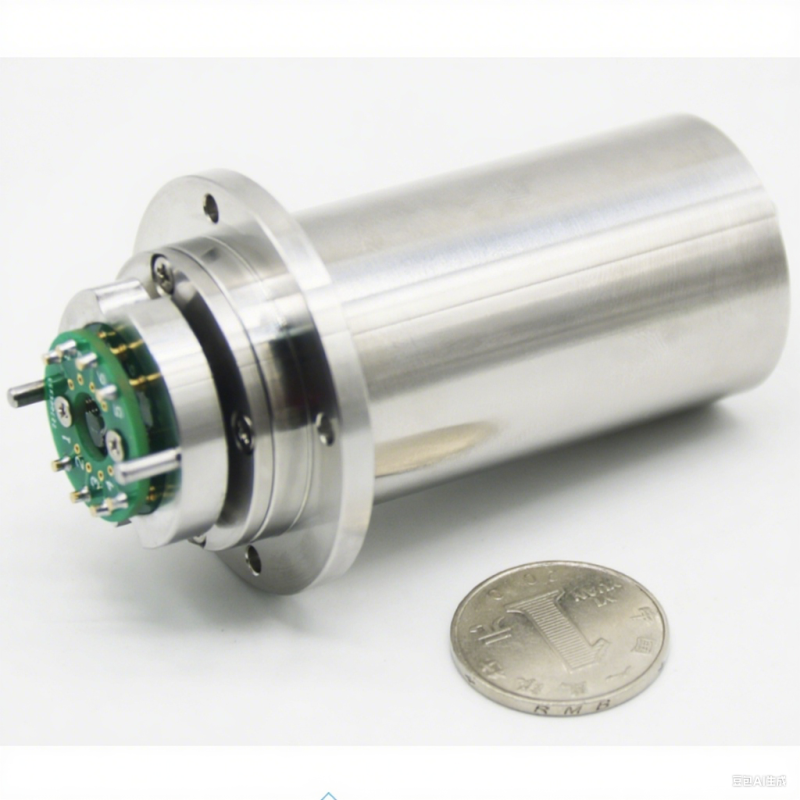

SP040028-G05 High Speed Slip Ring 12 Channels 18000 RPM Gold-Gold Contact IP65 for Medical CT Scanner Systems
SP040028-G05 High Speed Slip Ring 12 Channels 18000 RPM Gold-Gold Contact IP65 for Medical CT Scanner Systems
SP040028-G05 High Speed Slip Ring 12 Channels 18000 RPM Gold-Gold Contact IP65 for Medical CT Scanner Systems
SP040028-G05 High Speed Slip Ring 12 Channels 18000 RPM Gold-Gold Contact IP65 for Medical CT Scanner Systems
SP040028-G05 High Speed Slip Ring 12 Channels 18000 RPM Gold-Gold Contact IP65 for Medical CT Scanner Systems
SP040028-G05 High Speed Slip Ring 12 Channels 18000 RPM Gold-Gold Contact IP65 for Medical CT Scanner Systems
Specifications
Certification :
ISO 9001:2015, CE, RoHS
Delivery Time :
3 working days for sample, 10-20 days for bulk orders
Supply Ability :
2000 Pieces per Month
Starting Torque :
<2 N.cm
Surface Finish :
Ra0.02
Operating Speed :
18000 RPM
Concentricity :
≤0.01mm
Price :
USD 300-550 / Piece
Housing Material :
304 Stainless Steel
Brand Name :
SPR
Place of Origin :
Shenzhen, China
Number of Channels :
12
Rated Current :
1A
MOQ :
1 Piece
Contact Material :
Gold-Gold
Working Life :
100 Million Revolutions
Payment Terms :
T/T, L/C, PayPal, Western Union
Ingress Protection :
IP65
Model Number :
SP040028-G05
Packaging Details :
Cleanroom-grade anti-static bag with custom foam insert in export-grade carton
Rated Voltage :
80VDC
Description

SP040028-G05 High Speed Slip Ring for Medical CT Scanner Systems

12-20-28 Channels High Speed Slip Ring Rated Voltage/Current and Integrated Pouring Process for 80VDC/1A

Product Attributes

AttributeValue
Precision Parts Manufacturing ProcessDimensional tolerance <0.01mm for high-precision components
Advanced Brush Filament Modulation ProcessInnovative brush design for extended lifespan
Compact DesignSmall size and compact structure for adaptability
Working Life100 million revolutions
High-Speed OperationOperates at 18000 rpm without cooling system
Rated Voltage/Current80VDC/1A
Contact MaterialGold-gold contact material
Ingress ProtectionIP65
Housing Material304 Stainless Steel
Integrated Pouring ProcessConcentricity between ring groove and bearing ≤0.01mm
Mirror Processing TechnologyContact surface finish Ra0.02 for reliable electrical contact
Number of Channels12

Application areas: Medical CT scanner rotating gantries, medical imaging equipment, diagnostic rotating platforms, X-ray tomography systems, healthcare rotary signal transmission.
