Fiber Optic Rotary Joint Single-mode & Multi-mode Slip Ring for High-speed Data Transmission
Fiber Optic Rotary Joint Single-mode & Multi-mode Slip Ring for High-speed Data Transmission
Fiber Optic Rotary Joint Single-mode & Multi-mode Slip Ring for High-speed Data Transmission
Fiber Optic Rotary Joint Single-mode & Multi-mode Slip Ring for High-speed Data Transmission
Fiber Optic Rotary Joint Single-mode & Multi-mode Slip Ring for High-speed Data Transmission
Fiber Optic Rotary Joint Single-mode & Multi-mode Slip Ring for High-speed Data Transmission
Fiber Optic Rotary Joint Single-mode & Multi-mode Slip Ring for High-speed Data Transmission
Fiber Optic Rotary Joint Single-mode & Multi-mode Slip Ring for High-speed Data Transmission
Fiber Optic Rotary Joint Single-mode & Multi-mode Slip Ring for High-speed Data Transmission
Fiber Optic Rotary Joint Single-mode & Multi-mode Slip Ring for High-speed Data Transmission
Specifications
Brand Name :
SPR-ing
Model Number :
SP013018
Place of Origin :
Shenzhen
MOQ :
1
Price :
200-800USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1 week
Packaging Details :
Carton
Rotating Speed :
0-10000 rpm
Design loop :
18
Working Life :
10 million circle
Dynamic Resistance Change :
≤20mΩ
Working Temperature :
-50℃ ~ 80℃
Insulation Resistance :
200MΩ/250V/DC
Maximum Current :
1A
Shell Material :
304 stainless steel
Description
Fiber Optic Rotary Joint Single-mode & Multi-mode Slip Ring for High-speed Data Transmission

The SP013018 High Speed Slip Ring is a compact, high-performance rotary electrical connector designed for high-speed rotating equipment. With a rated speed of 10,000 RPM, this miniature slip ring ensures stable signal transmission for precision sensors including strain gauges and thermocouples.

This high-speed electrical slip ring utilizes gold-to-gold contact technology, providing low electrical noise, reliable conductivity, and extended service life. The compact stainless steel construction makes it ideal for installations with limited space requirements.

Application Areas

Designed for high-speed testing platforms including strain gauge signals and thermocouple signals. Ideal for applications such as aircraft engine testing, high-speed rail component testing, and automotive wheel hub performance testing.

Technical Parameters
Electrical Specifications
Parameter Specification
Design Loop ≤18
Insulation Resistance 250MΩ/250V/DC
Rated Voltage/Current 80VDC /1A
Dielectric Strength >300VAC/50Hz/60s
Dynamic Resistance Change Value ≤20mΩ
Wire Length Standard 400mm (adjustable according to requirements)
Mechanical Specifications
Parameter Specification
Rated Speed 0-10,000 rpm
Working Life 10 million rpm
Operating Temperature -50℃ ~ 80℃
Operating Humidity ≤80%
Contact Material Gold-gold
Shell Material 304 Stainless Steel
Maximum Starting Torque 0.5N.cm

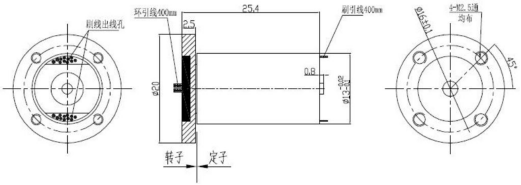

Outline Drawing
Fiber Optic Rotary Joint Single-mode & Multi-mode Slip Ring for High-speed Data Transmission
Technical Advantages
  • Gold Metal Contact Technology: Advanced friction pair technology ensuring ultra-long service life
  • Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Contact surface smoothness reaches Ra0.02 for enhanced reliability
  • Precision Component Manufacturing: Dimensional tolerance < 0.01mm, axial displacement < 0.01mm
  • Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
  • High Speed Capability: Maximum speed of 8,000 RPM with cooling system
  • Extended Lifespan: Maximum operational life of up to 100 million revolutions
