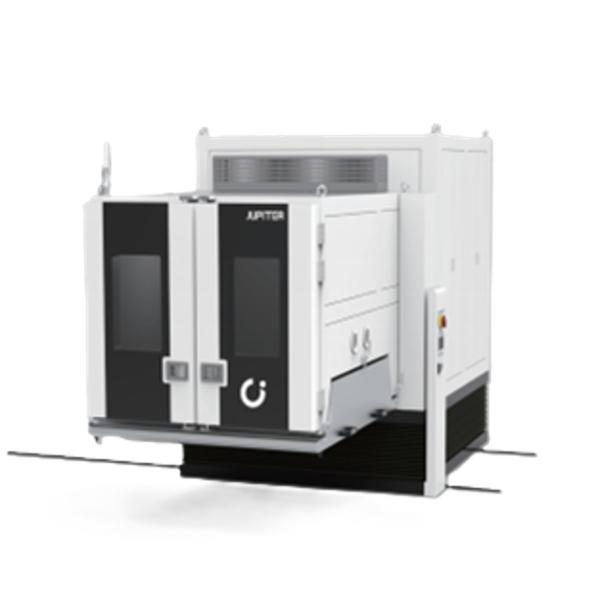

Temperature Shock Test Chamber (three-chamber Damper Type)
Temperature Shock Test Chamber (three-chamber Damper Type)
Temperature Shock Test Chamber (three-chamber Damper Type)
Temperature Shock Test Chamber (three-chamber Damper Type)
Temperature Shock Test Chamber (three-chamber Damper Type)
Temperature Shock Test Chamber (three-chamber Damper Type)
Temperature Shock Test Chamber (three-chamber Damper Type)
Temperature Shock Test Chamber (three-chamber Damper Type)
Temperature Shock Test Chamber (three-chamber Damper Type)
Temperature Shock Test Chamber (three-chamber Damper Type)
Temperature Shock Test Chamber (three-chamber Damper Type)
Temperature Shock Test Chamber (three-chamber Damper Type)
Specifications
Brand Name :
SPR-ing
Model Number :
JT/JC 490C（L） -10ES
Certification :
GB2423.1、 GB2423.2、 GJB150.3、GJB150.4、GB11158、GB10589
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
15000~50000 USD
Payment Terms :
T/T
Supply Ability :
20/month
Delivery Time :
1~3 weeks
Packaging Details :
Wooden carton
Nominal internal volume (L) :
330~2000
Temperature range :
-70~220℃
Heating speed :
3~6℃/min
Cooling speed :
2~3.5℃/min
Thermal compensation capability :
1500~3000W
Cooling method :
Air/water cooled (optional)
Power supply mode :
AC380V±10% 50Hz 3/N/PE
Maximum power :
15.5kw
Maximum current :
30A
Description
Temperature Shock Test Chamber (three-chamber Damper Type)
Temperature Shock Test Chamber (three-chamber Damper Type)

Product characteristics
◆ Multi-temperature zone design: the test chamber is divided into three zones: high temperature zone, low temperature zone and test zone; The sample environment can be quickly transferred from the high temperature zone to the low temperature zone by switching the damper.
◆ Fast conversion: With fast temperature conversion capability, the sample can be transferred from the high temperature area to the low temperature area in a short time, or vice versa, to test the cold and hot shock resistance of the sample.
◆ Precise control: Provide precise temperature control and stable test environment to ensure the reliability and repeatability of test results.
◆ Wide temperature range: It can cover a wide range of temperature shock and adapt to different test requirements.
◆ Safety protection: with a variety of safety protection functions, such as overheat protection, leakage protection, etc., to ensure the safety of equipment and operators.
◆ High efficiency: Energy-saving and efficient cooling and heating systems are considered in the design to improve test efficiency and reduce operating costs.


Temperature Shock Test Chamber (three-chamber Damper Type)
Air Flow Field Diagram in the Box
Unique Features
  • 10-inch color capacitive touch screen for intuitive operation
  • Autonomous intelligent control logic system for precise wide-range temperature control
  • SUS304 mirror stainless steel inner container with superior corrosion resistance
  • Advanced energy-saving design with intelligent control system and specialized air circulation
Technical Specifications

All performance indexes are measured under no-load conditions at ambient temperature of 20±2℃ (according to GB/T 5170.2-2017). Temperature and humidity performance test follows standard IEC 60068 3-5, with sensor placed at the air outlet of the air handling unit.

Compliance Standards

GB2423.1, GB2423.2, GJB150.3, GJB150.4, GB11158, GB10589
