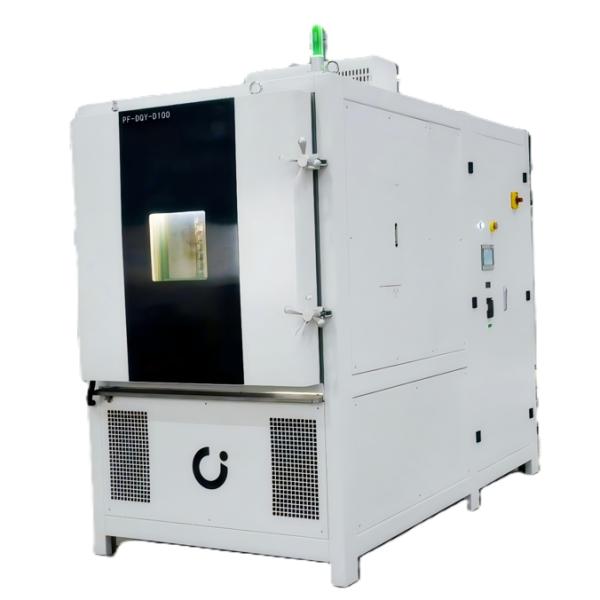

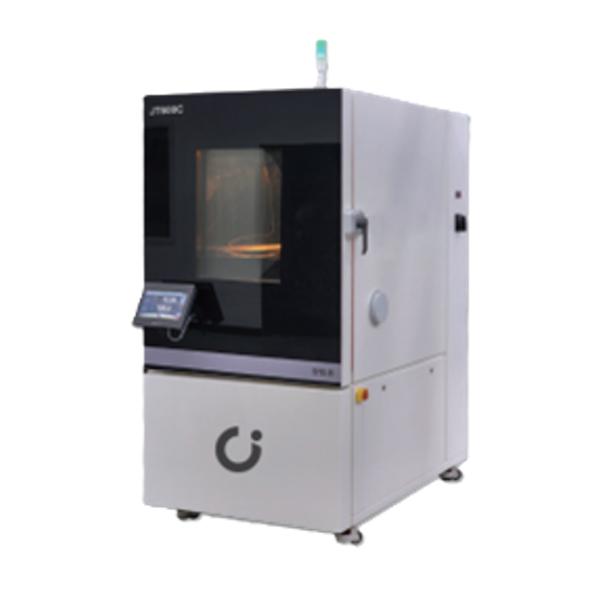

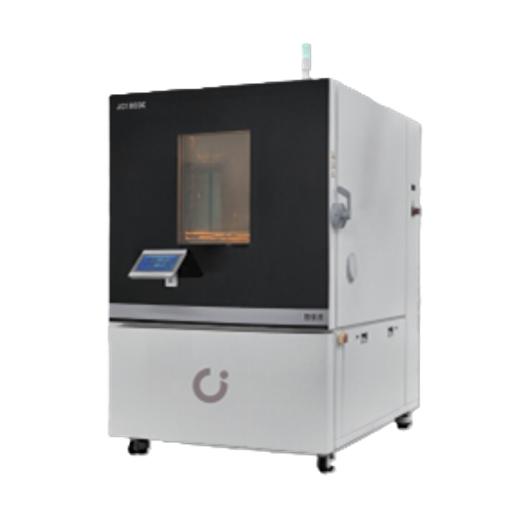

High And Low Temperature Damp Heat Test Chamber With Touch Screen
High And Low Temperature Damp Heat Test Chamber With Touch Screen
High And Low Temperature Damp Heat Test Chamber With Touch Screen
High And Low Temperature Damp Heat Test Chamber With Touch Screen
High And Low Temperature Damp Heat Test Chamber With Touch Screen
High And Low Temperature Damp Heat Test Chamber With Touch Screen
High And Low Temperature Damp Heat Test Chamber With Touch Screen
High And Low Temperature Damp Heat Test Chamber With Touch Screen
Specifications
Brand Name :
SPR-ing
Model Number :
JC330
Certification :
GB2423.1、 GB2423.2、 GJB150.3、GJB150.4、GB11158、GB10589
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
15000~50000 USD
Payment Terms :
T/T
Supply Ability :
20/month
Delivery Time :
1~3 weeks
Packaging Details :
Wooden carton
Nominal internal volume (L) :
330~2000
Temperature range :
-70~220℃
Heating speed :
3~6℃/min
Cooling speed :
2~3.5℃/min
Thermal compensation capability :
1500~3000W
Cooling method :
Air/water cooled (optional)
Power supply mode :
AC380V±10% 50Hz 3/N/PE
Maximum power :
15.5kw
Maximum current :
30A
Description
High And Low Temperature Damp Heat Test Chamber With Touch Screen
High And Low Temperature Damp Heat Test Chamber With Touch Screen
High And Low Temperature Damp Heat Test Chamber With Touch Screen

Temperature and humidity series 330-Chamber volume in L C-Minimum temperature -70 °

Product characteristics
  • The whole system is equipped with a standard 10-inch color capacitive touch screen, which provides a better user experience and improves the convenience of user touch operation.
  • The autonomous intelligent control logic system is adopted, which can control the temperature and humidity curve more accurately and has a wider range of temperature and humidity (see the humidity map for details) to meet the diverse test needs of users.
  • The inner container is made of SUS304 mirror stainless steel, which has excellent corrosion resistance. The surface is easy to clean, and the later maintenance is more convenient.
  • The unique air circulation system and software control system can minimize the water consumption of the equipment in the hot and humid working condition mode (without water recycling); under the same working condition in unit time, the water consumption is in the leading level in China.
  • Advanced energy-saving design, intelligent control system + special air circulation system can automatically adjust the operating parameters of the equipment to achieve effective use of energy.
Technical Specifications
Model JT330(C) JT610(C) JT1000(C) JT1500(C) JT2000(C)
Nominal internal volume (L) 330L 610L 1000L 1500L 2000L
Internal dimensions (mm)
D 760 795 960 1470 1670
W 585 800 1100 1100 1100
H 750 950 950 950 1100
External dimensions (mm)
D 1820 1850 2000 2525 2700
W 880 1100 1450 1450 1430
H 1950 2230 2230 2230 2400
Performance parameters
Minimum temperature (℃) Minimum temperature of tail band C -70℃/minimum temperature of no C -40℃
Maximum temperature (℃) +180°C (can be up to 220°C according to user requirements)
Temperature fluctuation (℃) ±0.1℃~±0.5℃
Temperature uniformity (℃) ≦2℃(≤150℃)
Temperature deviation (℃) ≦±2℃
Heating rate (℃/min) 4.0 6.0 4.0 4.0 3.0
Cooling rate (℃/min) 3.5 2.6 2.8 2.5 2.0
Thermal compensation capability 1500~3000W
Cooling method Air/water cooled (optional)
Power supply mode AC380V±10% 50Hz 3/N/PE
Maximum power (KW) 4.8 8.5 11.5 11.5 15.5
Maximum current (A) 12.3 14.8 22 22 30
Noise level (Db(A)) 65 65 68 68 70
Equipment weight (KG) 480 615 870 1000 1250
Test Method & Compliance

All performance indexes are measured under no-load conditions at ambient temperature of 20±2℃ (according to GB/T 5170.2-2017). Temperature and humidity performance test follows standard IEC 60068 3-5, with sensor placed at the air outlet of the air handling unit.

Complies with: GB2423.1, GB2423.2, GJB150.3, GJB150.4, GB11158, GB10589
