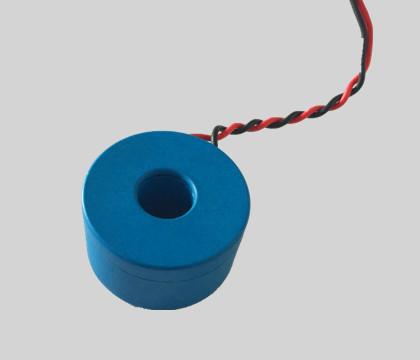

Plastic Blue Casing Nano Plus Amorphous Three Phase Core Type Transformer 60A
Plastic Blue Casing Nano Plus Amorphous Three Phase Core Type Transformer 60A
Specifications
Brand Name :
WSD
Model Number :
WSD-731
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200000/day
Delivery Time :
14-21days
Packaging Details :
Cartons / Pallets
Max current :
80-200A
Primary current :
10-30A
Secondary current :
5-15mA
Accuracy class :
0.1
DC immunity :
Available
Anti-magnetic :
Available
Turns ratio :
Customized
Description

3 phase current transfromer Nano + amourphous 60A core with plastic blue casing DC immune

Suitable for high precision, small phase error requirments of three-phase electric energy meters

More space in the meter can be saved with combined current transformer

Linear output current, high precision

Encapsulated with epoxy resion,with high insulation ability

It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class

Parameters:

Rated primary current Max primary current Rated secondary current Turn ratio Accuracy class DC component Shileding Load resistance
I p(A) I max(A) I s(mA) N (%) (%) (T) Rb
5 60 2 1:2500 0.1/0.2 ±3% unavailable 5Ω,10Ω,20Ω
5 60 2.5 1:2000 0.1/0.2 　
10 60 4 1:2500 0.1/0.2 ±3%
10 60 5 1:2000 0.1/0.2 　
10 60 10 1:1000 0.1/0.2 　
5 80 2 1:2500 0.1/0.2 ±3%
10 80 4 1:2500 0.1/0.2 ±3%
10 100 4 1:2500 0.1/0.2 ±3%
10 120 5 1:2000 0.1/0.2 　
　 　 　 　 　 　

Diemsnion:
Plastic Blue Casing Nano Plus Amorphous Three Phase Core Type Transformer 60A
