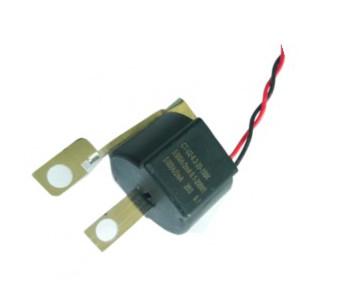

Larceny Prevention 3 Phase Current Transformer Removable Bus Bar Permanent Connection
Larceny Prevention 3 Phase Current Transformer Removable Bus Bar Permanent Connection
Specifications
Brand Name :
WSD
Model Number :
WSD-719DT-U
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200000/day
Delivery Time :
14-21days
Packaging Details :
Cartons / Pallets
Max current :
60-100A
Primary current :
5-10A
Secondary current :
2-10mA
DC immunity :
Available
Anti-magnetic :
Available
Product name :
three phase current transformer
Description

3 phase current transformer electricity larceny prevention three-phase removable bus bar permanent connection

Suitable for high precision, small phase error requirments of three-phase electric energy meters

More space in the meter can be saved with combined current transformer

Linear output current, high precision

Encapsulated with epoxy resion,with high insulation ability

It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class

Parameters:

Rated primary current Max primary current Rated secondary current Turn ratio Accuracy class DC component Shileding Load resistance
I p(A) I max(A) I s(mA) N (%) (%) (T) Rb
5 60 2 1:2500 0.05/0.1/0.2 ±3% 300~500mT 5Ω,10Ω,20Ω
5 60 2.5 1:2000 0.05/0.1/0.2 　
10 60 4 1:2500 0.05/0.1/0.2 ±3%
10 60 5 1:2000 0.05/0.1/0.2 　
10 60 10 1:1000 0.1/0.2 　
5 80 2 1:2500 0.1/0.2 ±3%
10 100 4 1:2500 0.1/0.2 ±3%
20 100 8 1:2500 0.1/0.2 　
20 100 10 1:2000 0.1/0.2 　
20 100 20 1:1000 0.1/0.2 　
Working temperature −40℃~ 85℃
Isolation voltage 4000Vrms, 1 Min, No breakdown, No arcing
Insulation resistance ≥1000MΩ
Operating temperature 50Hz~60Hz

Dimension:

Larceny Prevention 3 Phase Current Transformer Removable Bus Bar Permanent Connection
