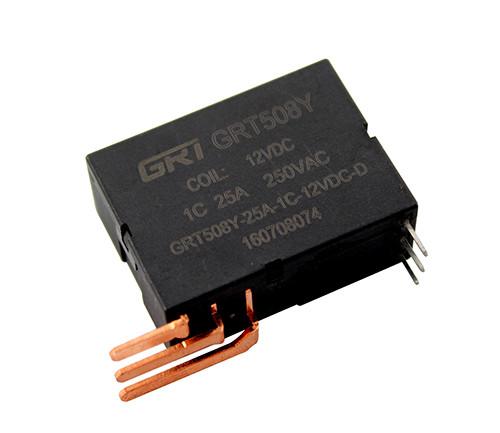

25A Contact Switching Single Coil Latching Relay , 1C Contact Form Electromechanical Relay
25A Contact Switching Single Coil Latching Relay , 1C Contact Form Electromechanical Relay
Specifications
Brand Name :
WSD
Model Number :
WSD-508Y-25A
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20000/day
Delivery Time :
14-21days
Packaging Details :
Cartons / Pallets
Contact Form :
1C
Contact Material :
AgSnO2
Operate Time :
20ms Max.
Release Time :
20ms Max.
Rated Load(Resistive) :
25A 250VAC
Outline Dimension :
38.8X28.7X15 (mm)
Description

Double coil latching relay 25A contact switching capability

  • ◇ 25A contact switching capability
  • ◇ Only impulse excitation needed, both for single and double coil
  • ◇ Low power consumption, strong load capability
  • ◇ Small in size, PCB type installation
  • ◇ 4KV dielectric strength between coil and contacts
  • ◇ RoHS compliant
  • ◇ Outline dimensions: (38.8 x 28.7 x 15) mm
  • ◇ VDE certificate No.: 40039308

Coil Data (20℃)
Coil Voltage Coil Resistance (Ω) Coil Power (W) Operating Voltage Releasing Voltage Allowing Voltage Pulse Duration
(VDC) Single Double Single Double (VDC) (VDC) (VDC) (ms)
6 36 18/18 1.0 2.0 ≤4.5 ≤4.5 9 ≥50
9 81 40.5/40.5 ≤6.75 ≤6.75 13.5
12 144 72/72 ≤9 ≤9 18
24 576 288/288 ≤18 ≤18 36
Contact Data Characteristics
Contact Form 1C Operate Time 20ms Max.
Contact Material AgSnO2 Release Time 20ms Max.
Contact Resistance Max.5.0mΩ (1A 6VDC) Insulation Resistance (500VDC) 1000MΩ Min.
Dielectric Strength (50/60Hz,1Min) Contact to Coil 4000VAC
Rated Load(Resistive) 25A 250VAC Across Open Contacts 1500VAC
Max.Switching Voltage 440VAC Contact to contact
Max.Switching Current 25A Surge Voltage (1.2/50μs) Contact to Coil 6KVAC
Max.Switching Power 6250VA
Service Life Mechnical Endurance 1×106OPS Dielectric Creepage 8mm
Electrical Endurance 3×104OPS Unit Weight About 44g
Max.Short-Circut Current 750A/10ms Outline Dimension (without connecting parts) 38.8X28.7X15 (mm)
Contact Data Characteristics
Contact Form 1B Operate Time 20ms Max.
Contact Material AgSnO2 Release Time 20ms Max.
Contact Resistance Max.2.0mΩ (1A 6VDC) Insulation Resistance (500VDC) 1000MΩ Min.
Dielectric Strength (50/60Hz,1Min) Contact to Coil 4000VAC
Rated Load(Resistive) 40A 250VAC Across Open Contacts 1500VAC
Max.Switching Voltage 440VAC Contact to contact
Max.Switching Current 40A Surge Voltage (1.2/50μs) Contact to Coil 12KVAC
Max.Switching Power 10000VA
Service Life Mechnical Endurance 1×106OPS Dielectric Creepage 8mm
Electrical Endurance 3×104OPS Unit Weight About 44g
Max.Short-Circut Current 750A/10ms Outline Dimension (without connecting parts) 38.8X28.7X15 (mm)
Environmental Data
Ambient Temperature -40℃～+85℃ Relative Humidity 5%-85% RH
Vibration 10-55Hz 1.5mm Shock 98m/s2
