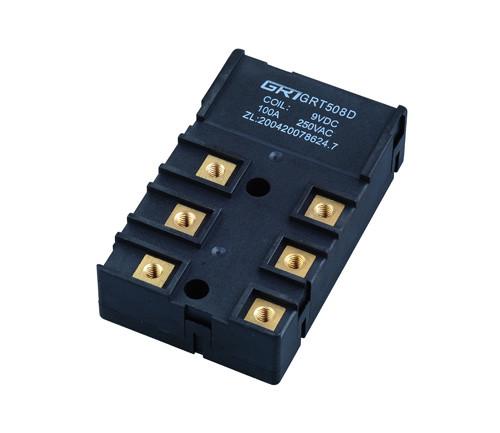

3B Contact Form 100A Mechanical Latching Relay , High Performance Coil Latching Relay
3B Contact Form 100A Mechanical Latching Relay , High Performance Coil Latching Relay
Specifications
Brand Name :
WSD
Model Number :
WSD-508D-100A
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20000/day
Delivery Time :
14-21days
Packaging Details :
Cartons / Pallets
Contact Form :
3B
Contact Material :
AgSnO2
Operate Time :
60ms Max.
Release Time :
60ms Max.
Rated Load(Resistive) :
100A 250VAC
Outline Dimension :
110X68X32 (mm)
Description

Double coil latching relay 100A Three sets of contacts Safe and reliable

  • ◇ 100A Three sets of contacts switching simultaneously, auxiliary contact can be added
  • ◇ Only impulse excitation needed, both for single and double coil.
  • ◇ Safe and reliable, long life time
  • ◇ 4KV dielectric strength between coil and contacts
  • ◇ RoHS compliant
  • ◇ Outline dimensions:(110 x 68 x 32) mm
  • ◇ Patent number: 200420078624.7
Coil Data (20℃)
Coil Voltage Coil Resistance (Ω) Coil Power (W) Operating Voltage Releasing Voltage Allowing Voltage Pulse Duration
(VDC) Single Double Single Double (VDC) (VDC) (VDC) (ms)
6 14.4 7.2/7.2 2.5 5.0 ≤4.2 ≤4.2 9 ≥100
9 32.4 16.2/16.2 ≤6.3 ≤6.3 13.5
12 57.6 28.828.8 ≤8.4 ≤8.4 18
24 230.4 115.2/115.2 ≤16.8 ≤16.8 36
Contact Data Characteristics
Contact Form 3B Operate Time 60ms Max.
Contact Material AgSnO2 Release Time 60ms Max.
Contact Resistance Max.1.0mΩ (1A 6VDC) Insulation Resistance (500VDC) 1000MΩ Min.
Dielectric Strength (50/60Hz,1Min) Contact to Coil 4000VAC
Rated Load(Resistive) 100A 250VAC Across Open Contacts 2000VAC
Max.Switching Voltage 380VAC Contact to contact 4000VAC
Max.Switching Current 100A Surge Voltage (1.2/50μs) Contact to Coil 12KVAC
Max.Switching Power 25000VA
Service Life Mechnical Endurance 1×105OPS Dielectric Creepage 8mm
Electrical Endurance 6×103OPS Unit Weight About 440g
Max.Short-Circut Current 2500A/10ms Outline Dimension (without connecting parts) 110X68X32 (mm)
Environmental Data
Ambient Temperature -40℃～+70℃ Relative Humidity 5%-85% RH
Vibration 10-55Hz 1.5mm Shock 98m/s2
