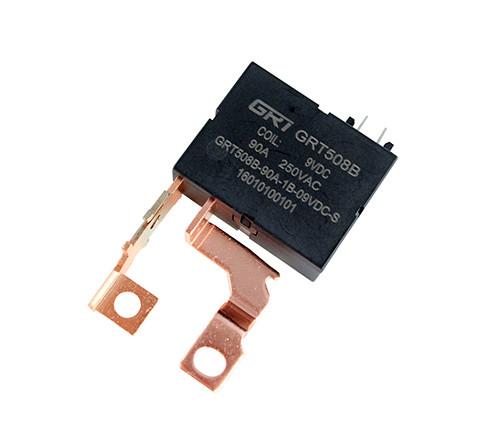

Impulse Excitation Single Coil Latching Relay , 90A 1B Electromechanical Relay
Impulse Excitation Single Coil Latching Relay , 90A 1B Electromechanical Relay
Specifications
Brand Name :
GRT
Model Number :
GRT-508B-90A
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200000pcs/day
Delivery Time :
14-21days
Packaging Details :
Cartons / Pallets
Contact Form :
1 B
Contact Material :
AgSnO2
Operate Time :
20ms Max.
Release Time :
20ms Max.
Rated Load(Resistive) :
60A 250VAC
Max.Switching Voltage :
250VAC
Description
  • Single Coil Relay 90A relay 1B
  • ◇ 90A contact switching capability
  • ◇ Only impulse excitation needed, both for single and double coil.
  • ◇ Low power consumption, small in size
  • ◇ Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt
  • ◇ 4KV dielectric strength between coil and contacts
  • ◇ RoHS compliant
  • ◇ IEC62055-31 UC2 compliant
  • ◇ Outline dimensions:(38.5 x 30 x 17.5/16.5) mm


Coil Data (20℃)
Coil Voltage Coil Resistance (Ω) Coil Power (W) Operating Voltage Releasing Voltage Allowing Voltage Pulse Duration
(VDC) Single Double Single Double (VDC) (VDC) (VDC) (ms)
6 36 18/18 1.0 2.0 ≤4.2 ≤4.2 9 ≥50
9 81 40.5/40.5 ≤6.3 ≤6.3 13.5
12 144 72/72 ≤8.4 ≤8.4 18
24 576 288/288 ≤16.8 ≤16.8 36
Contact Data Characteristics
Contact Form 1B Operate Time 20ms Max.
Contact Material AgSnO2 Release Time 20ms Max.
Contact Resistance Max.1.5mΩ (1A 6VDC) Insulation Resistance (500VDC) 500MΩ Min.
Dielectric Strength (50/60Hz,1Min) Contact to Coil 4000VAC
Rated Load(Resistive) 60A 250VAC Across Open Contacts 1500VAC
Max.Switching Voltage 250VAC Contact to contact
Max.Switching Current 60A Surge Voltage (1.2/50μs) Contact to Coil
Max.Switching Power 15000VA
Service Life Mechnical Endurance 5×105OPS Dielectric Creepage
Electrical Endurance 1×104OPS Unit Weight About 36g
Max.Short-Circut Current 1500A/10ms Outline Dimension (without connecting parts) 39.1X30.9X17 (mm)
Environmental Data
Ambient Temperature -40℃～+70℃ Relative Humidity 5%-85% RH
Vibration 10-55Hz 1.5mm Shock 98m/s2
