Specifications
Packaging Details :
Wooden Drum
Jacket Color :
Orange or optional
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Origin :
China
Outerdiameter :
Varies by size
Place of Origin :
Hebei, China
Sheath material :
LSZH (Low Smoke Zero Halogen)
Model Number :
BTLY/BBTRZ
Delivery Time :
10 Days
Certification :
ISO,CE,IEC,TUV,KEMA
Color :
Orange
Flameretardant :
Yes
Price :
Negotiable
Size :
1.5-800mm2
Hs Code :
8544492100
Brand Name :
Minfeng
MOQ :
Negotiable
Description
Minfeng Four Core IEC60702 1000V Minneral insulated Fire Proof Electrical Cable
Product Overview

High-performance fireproof electrical cable designed for high-temperature applications, compliant with international IEC60702 standards and rated for 1000V operation.

Key Features:
  • IEC60702 fireproof electrical cable
  • 1000V fire rated electrical cable
  • Fire resistant with inorganic mineral synthetic mica tape
  • Suitable for 800*600 applications
Product Specifications
Parameter Specification
Product Name Mineral insulated Cable
Core Four Core
Package Wooden Drum
Insulation Inorganic Mineral Synthetic Mica Tape
Standard IEC60702
Application High Temperature Situation
Rated Voltage 1000V
Cable Type Class 1, 2
Corporation Minfen Cable Group
Brand Minfeng Cable
Cable Construction
  • Conductor: Plain circular stranded copper conductor, IEC 60228 Class 1, 2
  • Insulation: Inorganic mineral synthetic mica tape, wrapped
  • Metallic Sheath: Aluminum sleeve, isolated
  • Insulation Color Code: PE extruded
Compliance Standards
  • International: IEC 60702-2002
  • China: GB/T 13033-2007
  • Other Standards: BS, DIN and ICEA upon request
Technical Data
  • Rated Voltage: 0.6 / 1 kV
  • Maximum Conductor Temperature: Normal (250℃), in combustion flame temperature of 950-1000℃ for 3h
  • Certification: Passes BS 6387 standard
Detailed Specifications
Nom. Cross-section (mm²) Insulation Thickness (mm) Sheath Thickness (mm) Sheath Area (mm) Outer Covering (mm) Cable Diameter (mm) Weight (Kg/km) Resistance at 20℃ (Oh/km)
1x10 0.7 1.2 28.3 1.6 22.3 623 1.83
1x16 0.7 1.2 32.1 1.6 23.3 719 1.15
1x25 1.0 1.2 36.3 1.6 24.4 842 0.727
1x35 1.0 1.2 40 1.6 25.4 970 0.524
1x50 1.0 1.2 44.6 1.6 26.6 1127 0.387
1x70 1.0 1.2 51.3 1.6 28.4 1390 0.268
1x95 1.0 1.2 57 1.7 30.1 1682 0.193
1x120 1.0 1.2 63 1.7 31.7 1956 0.153
1x150 1.3 1.2 71.9 1.8 34.3 2334 0.124
1x185 1.3 1.2 78.3 1.8 36 2745 0.0991

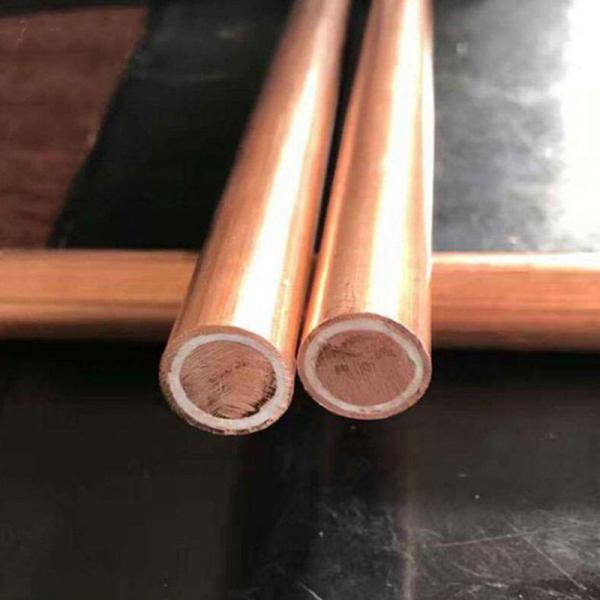

Product Image
