VHOVMV-K 300/500V Flexible Armoured Instrumentation Cable with Copper Conductor and PVC Insulation
VHOVMV-K 300/500V Flexible Armoured Instrumentation Cable with Copper Conductor and PVC Insulation
VHOVMV-K 300/500V Flexible Armoured Instrumentation Cable with Copper Conductor and PVC Insulation
VHOVMV-K 300/500V Flexible Armoured Instrumentation Cable with Copper Conductor and PVC Insulation
Specifications
Place of Origin :
Hebei, China
Conductor Material :
Copper
Rated Voltage :
300/500V
Model Number :
VHOVMV-K
Price :
0.1-5
Payment Terms :
L/C,T/T
Trademark :
Minfeng Cable Group
Insulation material :
PVC
Certification :
ISO,CE,IEC,TUV,KEMA
Brand Name :
Minfeng
Sheathmaterial :
PVC
Supply Ability :
100KM/Week
Temperature Rating :
-40 °C to +70 °C
Outer Sheath Color :
Black or as per required
MOQ :
100
Delivery Time :
10 Days
Description
VHOVMV-K 300/500V Flexible Armoured Instrumentation Cable Copper Conductor PVC Insulation
Product Overview

Flexible armoured instrumentation cable with individual and overall foil shielding, PVC insulation and sheath. Designed for signal transmission between equipment in industrial installations.

Rated Voltage 300/500V
Conductor Size 1.5mm², 2.5mm²
Conductor Material Copper
Insulation Material PVC
Working Temperature -40°C to +70°C
Application Industrial
Standard Class 5 to IEC 60228
Cable Design & Construction
  • Single Shield: Aluminium/polyester tape applied on each pair with 100% coverage + tinned copper drain wire
  • Overall Cable Shield: Aluminium/polyester tape with 100% coverage + tinned copper drain wire
  • Armouring: Galvanized steel wire core
  • Conductor: Bare copper wires, flexible, Class 5 to IEC 60228
  • Insulation: PVC
  • Wiring: Two conductors form twisted pairs with optimum pitch to minimize external interference
  • Identification: Numbered black and blue
  • Sheath: Special PVC, Black color
Technical Characteristics
  • Service temperature in fixed and protected installation: -40°C to +70°C
  • Service voltage: 300/500V
  • Max. conductor temperature: +70°C
  • Max. temperature in short circuit (max. 5 sec): +160°C
  • Test voltage: 2,000V AC
  • Capacity: ≤85 nF/km (can be increased by 20% from 4 pairs)
  • Minimum bend radius in fixed installation: 10 x outer diameter
Performance Properties
  • Water resistance: AD5 Jets (water jets from any direction)
  • Impact resistance: AG4 Very strong (reinforced for severe industrial use)
  • Oil resistance: ICEA S-73-532
  • Resistance to hydrocarbons: ICEA S-73-532 (4h, 70°C)
  • UV resistance: Good (possible sheath discolouration over long time)
  • RoHS compliant: Free of harmful substances according to RoHS II
Fire Resistant Properties
  • Euroclase: CPREca
  • Fire requirements: EN 50575
  • Flame retardant: EN 60332-1-2, IEC 60332-1-2, VDE 0482-332-1-2, NFC 32070 C2

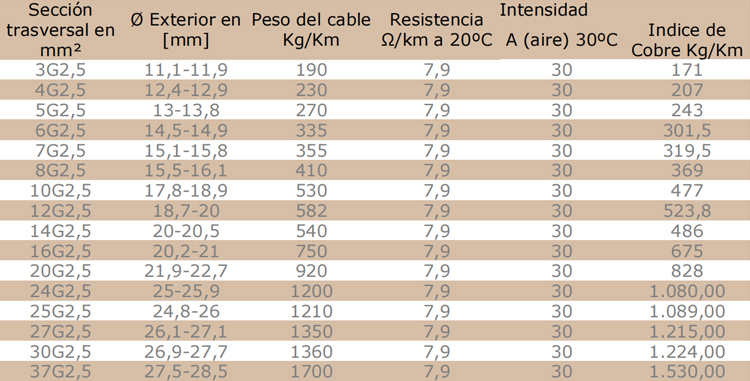

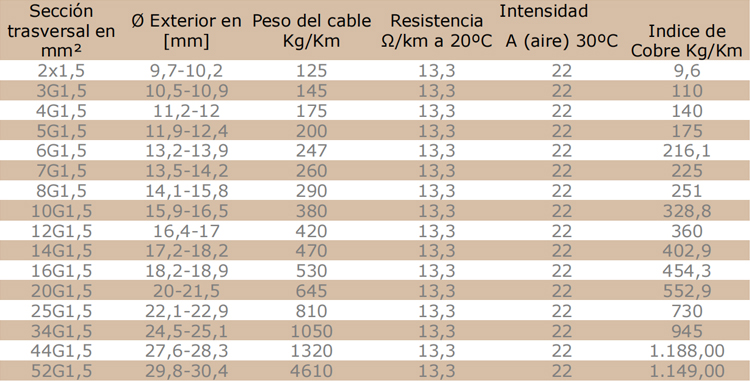

Product Images
VHOVMV-K 300/500V Flexible Armoured Instrumentation Cable with Copper Conductor and PVC Insulation VHOVMV-K 300/500V Flexible Armoured Instrumentation Cable with Copper Conductor and PVC Insulation
