NF M87-202 EGSF NF M87-202 EISF NF M87-202 EISF Individually and Collectively Screened Unarmoured PVC Cable
NF M87-202 EGSF NF M87-202 EISF NF M87-202 EISF Individually and Collectively Screened Unarmoured PVC Cable
NF M87-202 EGSF NF M87-202 EISF NF M87-202 EISF Individually and Collectively Screened Unarmoured PVC Cable
NF M87-202 EGSF NF M87-202 EISF NF M87-202 EISF Individually and Collectively Screened Unarmoured PVC Cable
NF M87-202 EGSF NF M87-202 EISF NF M87-202 EISF Individually and Collectively Screened Unarmoured PVC Cable
NF M87-202 EGSF NF M87-202 EISF NF M87-202 EISF Individually and Collectively Screened Unarmoured PVC Cable
Specifications
Working Degree :
<=90℃
Insulation :
pvc
Payment Terms :
L/C,T/T
Free Sample :
Avaliable
MOQ :
100m
Conductor Material :
Copper
Hs Code :
8544492100
Brand Name :
Minfeng
Delivery Time :
5-8 Days
Place of Origin :
China
Model Name :
NF M87-202
Type :
Unarmoured PVC Cable
Model Number :
NF M87-202
Certification :
ISO,CE,IEC,TUV,KEMA
Price :
0.1-5
Supply Ability :
100KM/Week
Description

Key attributes


Rated Voltage
300/500V
Size
1.5mm2
Conductor Material
Copper
Insulation Material
PVC
Working Temperature
5-50℃
Jacket
PVC
IP Level
/
Application
Industrial
Rated Current
/
Type
Low Voltage
Place of Origin
Hebei, China
Model Number
NF M87-202 EGSF
Brand Name
Minfeng
Product name
NF M87-202 EGSF Cable
Standard
NF M 87 - 202, UTE C 32-014, EN 60331-21
Conductor
copper
Insulation
PVC
Nominal voltage
300/500V
Product Description

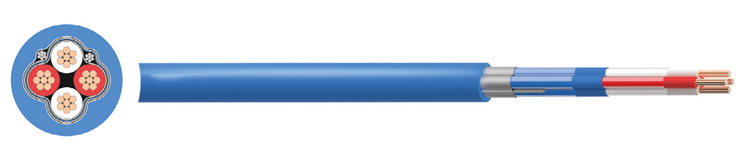

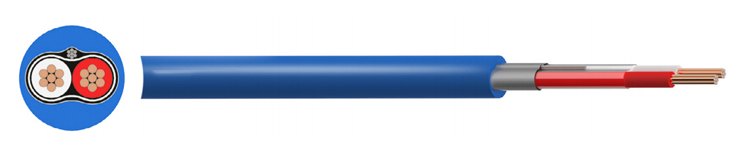

NF M87-202 EGSF NF M87-202 EISF NF M87-202 EISF Individually and Collectively Screened Unarmoured PVC Cable APPLICATION These cables are designed for safe use in petroleum and petrochemical units particularly for the transmission of AC or DC analogue signals. Suitable for aliphatic hydrocarbons resistance applications. CHARACTERISTICS Voltage Rating (Uo/U) 300/500V Temperature Range Installation: 5°C to +50ºC Operation: +90ºC CONSTRUCTION Conductor Class 1 solid copper conductor Class 2 stranded copper conductor Insulation PVC (Polyvinyl Chloride) Binder Tape PET (Polyester Tape) Collective Screen AlL/PET (Aluminium/Polyester Tape) Sheath PVC (Polyvinyl Chloride) STANDARDS NF M 87 - 202, UTE C 32-014, EN 60331-21
Specification
NF M87-202 EGSF NF M87-202 EISF NF M87-202 EISF Individually and Collectively Screened Unarmoured PVC Cable
NO. OF
PAIRS/TRIPLE
NOMINAL CROSS SECTIONAL AREA
mm2
NOMINAL OVERALL DIAMETER
mm
1P
0.5
4.7
1P
0.88
6
1P
1.5
6.9
1T
0.5
5
1T
0.88
6.4
1T
1.5
7.4
2P(Q)
0.5
5.4
2P(Q)
0.88
6.9
2P(Q)
1.5
8
2T
0.5
8.2
2T
0.88
11
2T
1.5
13
3P
0.5
8.2
3P
0.88
11
3P
1.5
12.9
3T
0.5
8.7
3T
0.88
11.7
3T
1.5
14.2
7P
0.5
10.7
7P
0.88
15
7P
1.5
17.7
7T
0.5
11.4
7T
0.88
16
7T
1.5
19.4
12P
0.5
14.6
12P
0.88
20.4
12P
1.5
24.6
12T
0.5
15.6
12T
0.88
21.8
12T
1.5
26.9
19P
0.5
17.1
19P
0.88
24.4
19P
1.5
28.9
19T
0.5
18.7
19T
0.88
26.1
19T
1.5
31
27P
0.5
21
27P
0.88
29.4
27P
1.5
35
27T
0.5
22.9
27T
0.88
31.5
27T
1.5
37.5
NF M87-202 EGSF NF M87-202 EISF NF M87-202 EISF Individually and Collectively Screened Unarmoured PVC Cable
NO. OF
PAIRS/TRIPLE
NOMINAL CROSS SECTIONAL AREA
mm2
NOMINAL OVERALL DIAMETER
mm
1P
0.5
6.1
1P
0.88
7.4
1P
1.5
8.3
1T
0.5
6.3
1T
0.88
7.7
1T
1.5
8.7
2P(Q)
0.5
6.7
2P(Q)
0.88
8.5
2P(Q)
1.5
9.4
2T
0.5
10.9
2T
0.88
14.1
2T
1.5
16.1
3P
0.5
11.1
3P
0.88
14.3
3P
1.5
16.2
3T
0.5
11.6
3T
0.88
15
3T
1.5
17.1
7P
0.5
15.2
7P
0.88
19.5
7P
1.5
22.2
7T
0.5
15.9
7T
0.88
25
7T
1.5
23.8
12P
0.5
20.6
12P
0.88
26.4
12P
1.5
30.2
12T
0.5
21.6
12T
0.88
27.8
12T
1.5
31.9
19P
0.5
24.7
19P
0.88
31.2
19P
1.5
35.7
19T
0.5
25.9
19T
0.88
32.9
19T
1.5
37.7
27P
0.5
29.7
27P
0.88
37.7
27P
1.5
43.3
27T
0.5
31.2
27T
0.88
39.8
27T
1.5
45.8
