Service Cable 2 X 25sq.mm Aluminium Stranded Low Voltage Power Cable 0.6/1kV for Ghana
Service Cable 2 X 25sq.mm Aluminium Stranded Low Voltage Power Cable 0.6/1kV for Ghana
Service Cable 2 X 25sq.mm Aluminium Stranded Low Voltage Power Cable 0.6/1kV for Ghana
Service Cable 2 X 25sq.mm Aluminium Stranded Low Voltage Power Cable 0.6/1kV for Ghana
Service Cable 2 X 25sq.mm Aluminium Stranded Low Voltage Power Cable 0.6/1kV for Ghana
Service Cable 2 X 25sq.mm Aluminium Stranded Low Voltage Power Cable 0.6/1kV for Ghana
Service Cable 2 X 25sq.mm Aluminium Stranded Low Voltage Power Cable 0.6/1kV for Ghana
Service Cable 2 X 25sq.mm Aluminium Stranded Low Voltage Power Cable 0.6/1kV for Ghana
Specifications
Product name :
Service Cable
Place of Origin :
Hebei, China
Payment Terms :
L/C,T/T
Standards :
IEC
MOQ :
100m
Sheath :
HDPE
Brand Name :
Minfeng
Transport Package :
Wooden Steel Drum
Certification :
ISO,CE,IEC,TUV,KEMA
Price :
0.1-5
Insulation material :
PVC (Polyvinyl Chloride)
Model Number :
Service Cable
Supply Ability :
100KM/Week
Delivery Time :
5-8 Days
Voltage rating :
0.6/1 KV
Hs Code :
8544492100
Packaging Details :
Wooden Drum
Description
Service Cable 2 X 25sq.mm Aluminium Stranded Covered 0.6/1kV for Ghana
Product Specifications
Rated Voltage 0.6 kV, 1 kV
Size 2 X 25sq.mm
Conductor Material Aluminum
Insulation Material PVC
Jacket HDPE
Application Overhead
Type Low Voltage
Place of Origin Hebei, China
Model Number 2x25 sqmm service cable
Brand Name OEM
Certificate ISO9001/CCC
Standard IEC60502-1
Rated Voltage 0.6/1 KV
Core Multi-Core
Color Black
Applications

These cables are intended for fixed installations, indoors and outdoors, in low voltage electricity systems. They are normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial plants, as well as in switchgears, in applications where there is no risk of mechanical damage.

Applicable Standards

Low Voltage power cables are designed and tested to meet all the requirements of the latest edition of IEC 60502-1 standard. In addition, Yongjin Cable can also supply a range of alternative designs to meet customer-specified requirements.

Cable Construction
Conductor

Stranded circular (rm) or sector shaped (sm) aluminium conductor (Class 2 to IEC 60228).

Insulation

Extruded layer of Polyvinyl Chloride (PVC) - Type (PVC/A) to IEC 60502-1.

Core Identification
  • Red, Black
  • Red, Yellow, Blue
  • Red, Yellow, Blue, Black
Outer Jacket

Extruded layer of Low Density Polyethylene (LDPE) - Type (ST1) to IEC 60502-1.

Product Images

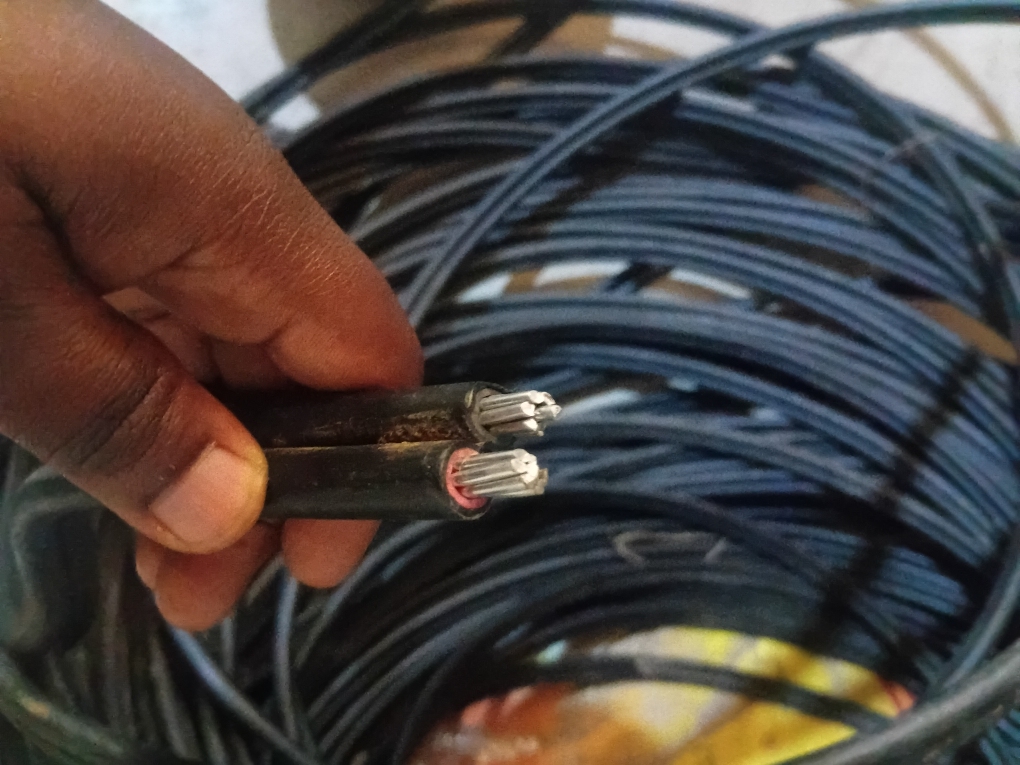

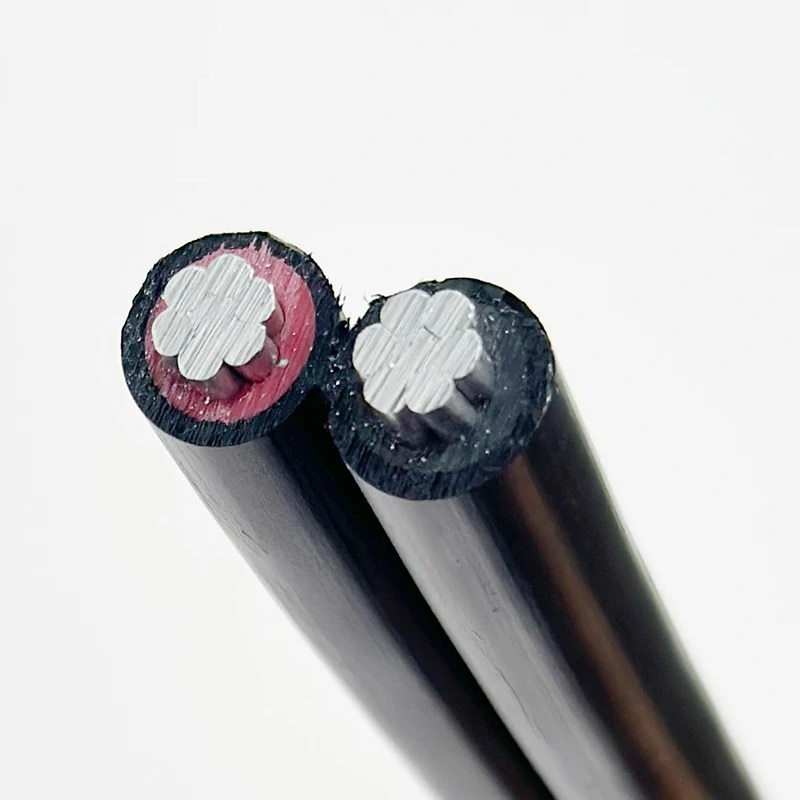

Service Cable 2 X 25sq.mm Aluminium Stranded Low Voltage Power Cable 0.6/1kV for Ghana Service Cable 2 X 25sq.mm Aluminium Stranded Low Voltage Power Cable 0.6/1kV for Ghana
