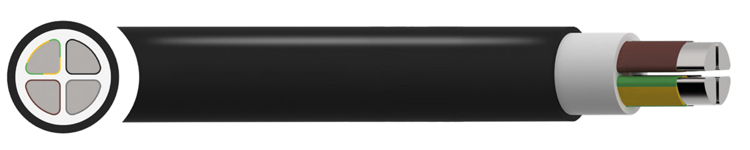

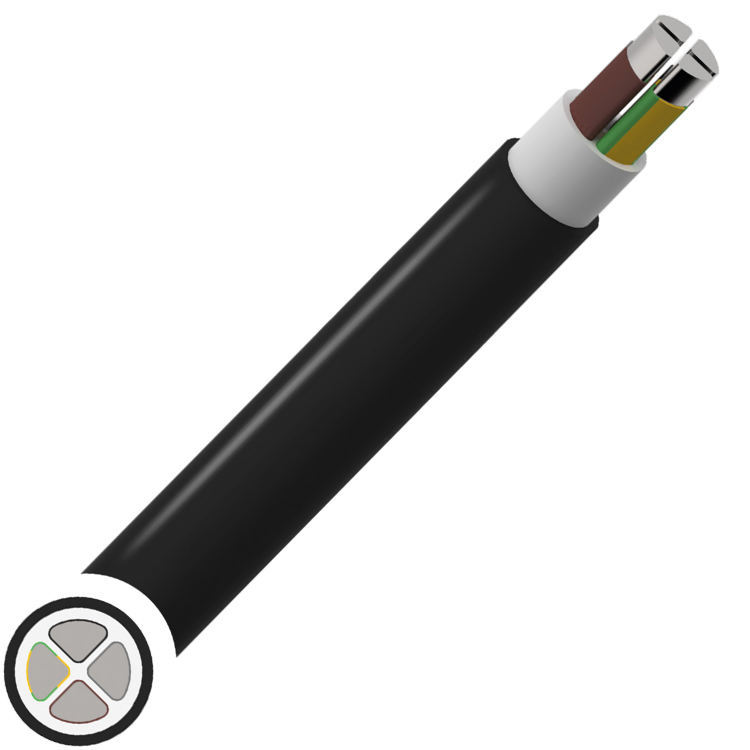

NAYY-J/NAYY-O Cable Aluminium Conductor PVC PVC 0.6/1kV Cable
NAYY-J/NAYY-O Cable Aluminium Conductor PVC PVC 0.6/1kV Cable
NAYY-J/NAYY-O Cable Aluminium Conductor PVC PVC 0.6/1kV Cable
NAYY-J/NAYY-O Cable Aluminium Conductor PVC PVC 0.6/1kV Cable
Specifications
Certification :
ISO,CE,IEC,TUV,KEMA
Price :
0.1-5
Marking :
Ink or Embossing
Insulation material :
PVC (Polyvinyl Chloride)
Brand Name :
Minfeng
Sheath :
PVC (Polyvinyl Chloride)
Conductor :
Aluminum
Place of Origin :
Hebei, China
MOQ :
100m
Voltage Rating :
0.6/1kv
Model Number :
NAYY-J/NAYY-O Cable
Packaging Details :
Wooden Drum
Standard :
IEC 60502-1, VDE 0276-603, HD 603, IEC 60228
Payment Terms :
L/C,T/T
Jacket Color :
Black
Delivery Time :
5-8 Days
Supply Ability :
100KM/Week
Description

Key attributes


Rated Voltage
0.6/1kv
Size
6-800mm2
Conductor Material
Aluminum
Insulation Material
PVC
Working Temperature
-5°C to +70°C
Jacket
PVC
IP Level
/
Application
Industrial
Rated Current
/
Type
Low Voltage
Place of Origin
Hebei, China
Model Number
NAYY-J/NAYY-O Cable
Brand Name
Minfeng
Product name
NAYY-J/NAYY-O Cable
Standard
IEC 60502-1, VDE 0276-603, HD 603, IEC 60228
Conductor
Aluminium
Insulation
PVC
Nominal voltage
0.6/1kv
Sheath
PVC
Product Description
NAYY-J/NAYY-O Cable Aluminium Conductor PVC PVC 0.6/1kV Cable
NAYY-J/NAYY-O Cable Aluminium Conductor PVC PVC 0.6/1kV Cable
APPLICATION For fixed installation in buildings, in free air, in ground and in water. CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Operating Temperature Operating: -5°C to +70°C CONSTRUCTION Conductor RE: Class 1 solid aluminium-circular or circular compacted RM: Class 2 stranded SM: Class 2 sector - shaped SE: Class 1 solid sector - shaped or stranded (available upon request) Insulation PVC (Polyvinyl Chloride) Sheath PVC (Polyvinyl Chloride) STANDARDS IEC 60502-1, VDE 0276-603, HD 603, IEC 60228 Flame retardant according to IEC/EN 60332-1-2
Specification
NO. OF
CORES
CONDUCTOR
TYPE
NOMINAL CROSS
SECTIONAL AREA mm2
NOMINAL THICKNESS
OF INSULATION
mm
FIXED INSTALLATION
BENDING RADIUS
mm
NOMINAL THICKNESS
OF SHEATH
mm
NOMINAL
DIAMETER
mm
NOMINAL
WEIGHT
kg/km
NAYY-J
1
RE
16
1
158
1.8
10.5
145
1
RE
25
1.2
180
1.8
12
195
1
RE
35
1.2
203
1.8
13.5
255
1
RM
50
1.4
231
1.8
15.4
298
1
RM
70
1.4
255
1.8
17
383
1
RM
95
1.6
285
1.8
19
490
1
RM
120
1.6
300
1.8
20
575
1
RM
150
1.8
330
1.8
22
695
1
RM
185
2
375
1.8
25
845
1
RM
240
2.2
420
1.8
28
1100
1
RM
300
2.4
450
1.9
30
1379
1
RM
400
2.6
510
2
34
1615
1
RM
500
2.8
555
2.1
37
2015
1
RM
630
2.8
645
2.2
43
2472
3
SM
300
2.4
708
3
59
4500
4
RE
6
1
204
1.8
17
377
4
RE
10
1
285
1.8
19
470
4
RE
16
1.2
288
1.8
24
750
4
RE
25
1.2
300
1.8
25
950
4
RE
35
1.2
354
1.8
28.1
1120
4
SM
50
1.4
354
1.9
29.5
1151
4
SM
70
1.4
420
2.1
33.4
1549
4
SM
95
1.6
468
2.2
39
2030
4
SM
120
1.6
516
2.4
43
2400
4
SM
150
1.8
552
2.5
46
3030
4
SM
185
2
612
2.7
51
3650
4
SM
240
2.2
696
2.9
58
4800
4
SM
300
2.4
786
3
65.5
5685
5
RE
10
1
232
1.8
19.3
585
5
RE
16
1
262
1.8
21.8
938
5
RE
25
1.2
325
1.8
27.1
1188
5
RE
35
1.2
362
1.8
30.2
1375
5
RM
50
1.4
432
1.8
36.2
1720
5
RM
70
1.4
492
2.1
44
2240
5
RM
95
1.6
564
2.1
47
3060
5
RM
120
1.6
612
2.4
53
3580
5
RM
150
1.8
672
2.5
56
4400
5
RM
185
2
804
2.7
59
5481
5
RM
240
2.2
852
2.9
71
7000
NAYY-O
1
RE
16
1
157
1.8
10.5
145
1
RE
25
1.2
180
1.8
12
195
1
RE
35
1.2
203
1.8
13.5
255
1
RM
50
1.4
225
1.8
15
298
1
RM
70
1.4
204
1.8
17
383
1
RM
95
1.6
285
1.8
19
490
1
RM
120
1.6
300
1.8
20
575
1
RM
150
1.8
330
1.8
22
695
1
RM
185
2
375
1.8
25
845
1
RM
240
2.2
420
1.8
28
1100
1
RM
300
2.4
450
1.9
30
1379
1
RM
400
2.6
510
2
34
1615
1
RM
500
2.8
555
2.1
37
2015
1
RM
630
2.8
645
2.2
43
2472
1
RM
800
2.9
675
2.4
45
3120
3
SE
300
2.4
708
3
59
4500
4
RE
16
1
288
1.8
24
750
4
RE
25
1.2
300
1.8
25
950
4
SE
35
1.2
338
1.8
28.1
1120
4
SE
50
1.4
360
1.9
30
1151
4
SE
70
1.4
420
2.1
35
1549
4
SE
95
1.6
468
2.2
39
2030
4
SE
120
1.6
516
2.4
43
2400
4
SE
150
1.8
552
2.5
46
3030
4
SE
185
2
612
2.7
51
3650
4
SE
240
2.2
672
2.9
56
4800
