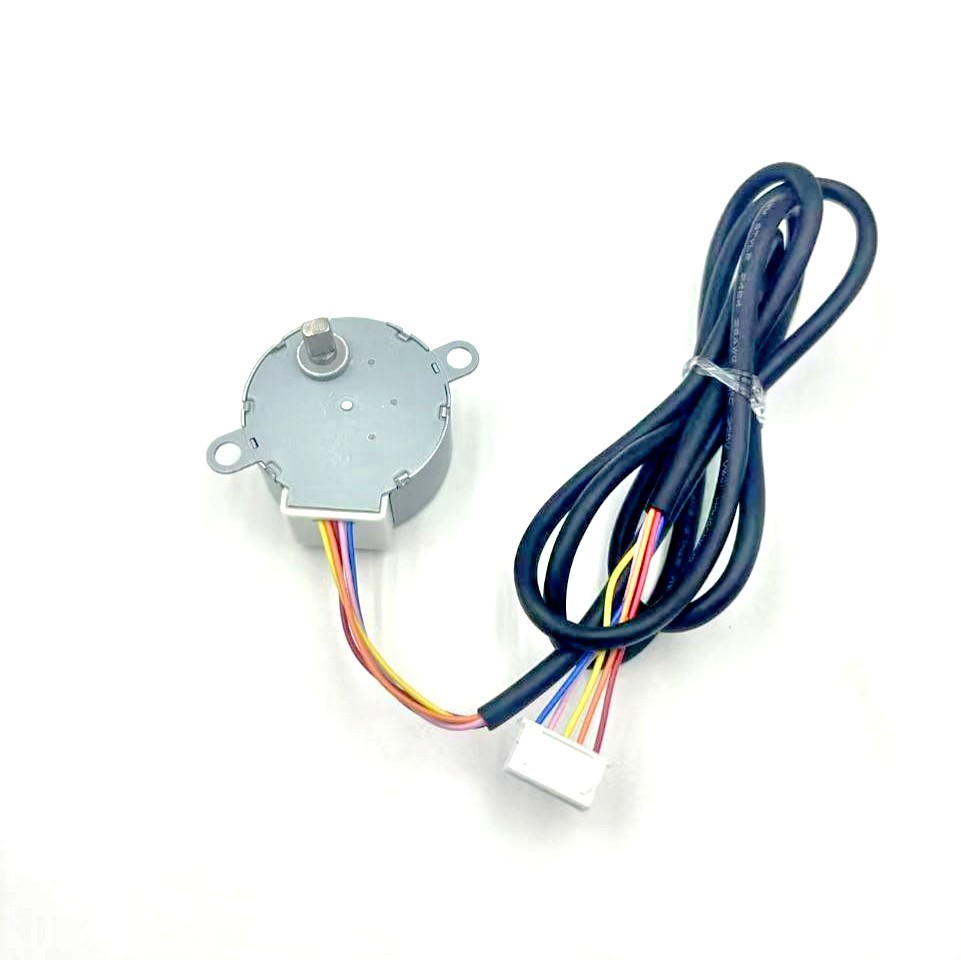

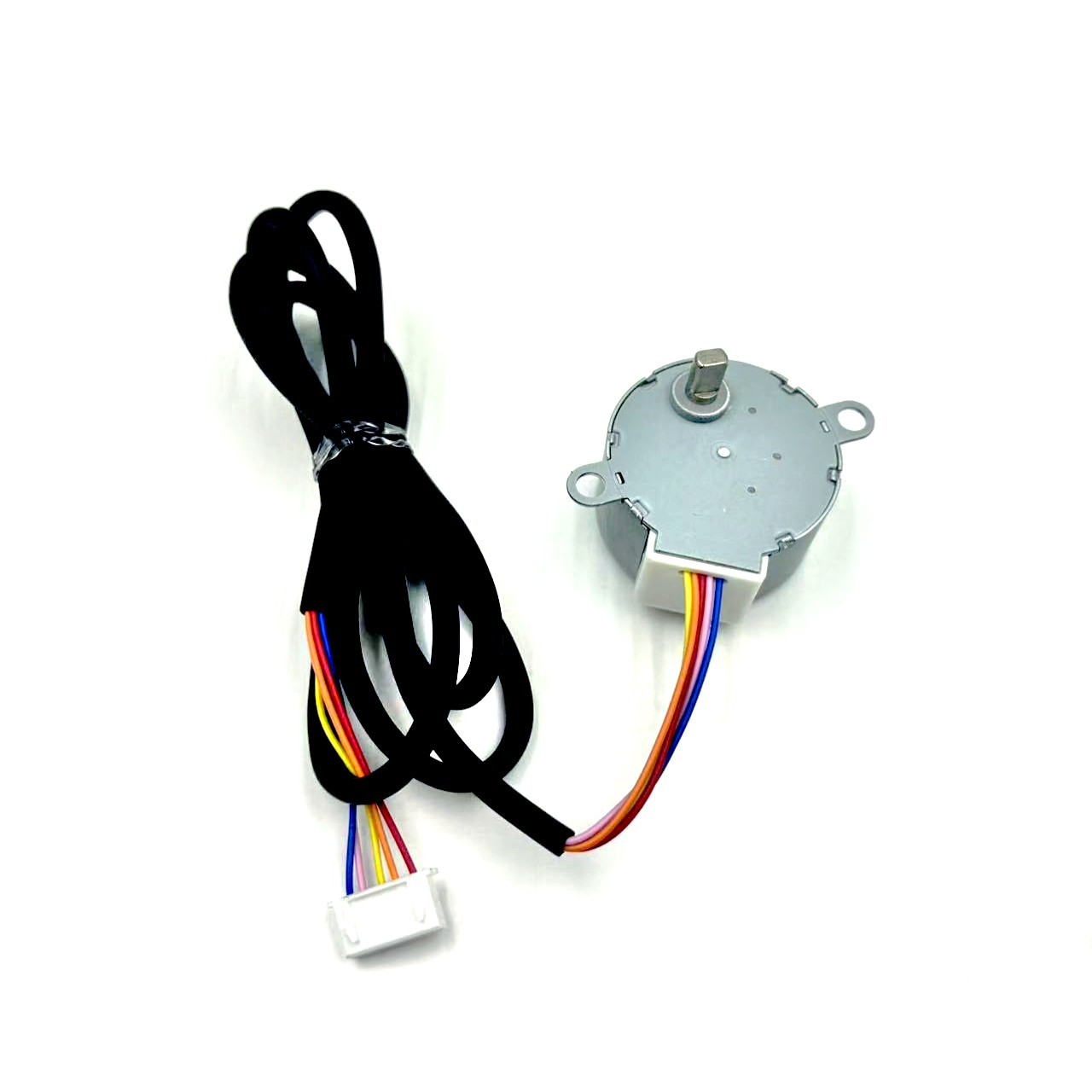

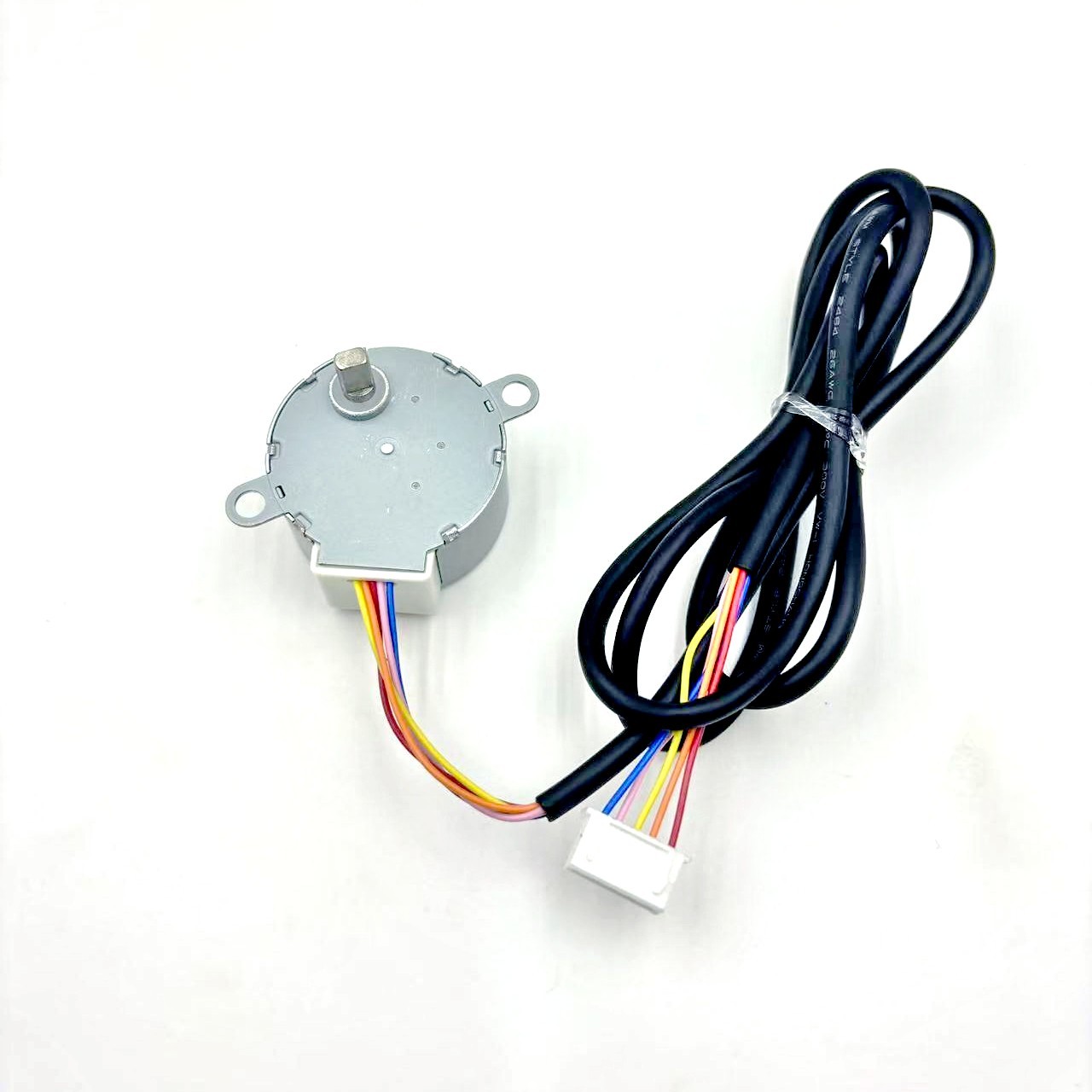

4 Phase Reduction Stepper Motor 5 Wire Geared Stepper Motor 35BYJ46 35mm 12V For Air Conditioners
4 Phase Reduction Stepper Motor 5 Wire Geared Stepper Motor 35BYJ46 35mm 12V For Air Conditioners
4 Phase Reduction Stepper Motor 5 Wire Geared Stepper Motor 35BYJ46 35mm 12V For Air Conditioners
4 Phase Reduction Stepper Motor 5 Wire Geared Stepper Motor 35BYJ46 35mm 12V For Air Conditioners
4 Phase Reduction Stepper Motor 5 Wire Geared Stepper Motor 35BYJ46 35mm 12V For Air Conditioners
4 Phase Reduction Stepper Motor 5 Wire Geared Stepper Motor 35BYJ46 35mm 12V For Air Conditioners
Specifications
Brand Name :
WEIGU
Model Number :
35BYJ46
Certification :
RoHS
Place of Origin :
China
MOQ :
1unit
Price :
$1~2/unit
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000Units/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
Stepper Reduction Motor
Rated Voltage :
12V
Gear Ratio :
85
Step Angle :
7.5°
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

4-Phase 5-Wire Geared Reducer Motor 35BYJ46 - 35mm 12V for Air Conditioners 1:85 Reduction ratio

The 4-Phase 5-Wire 35BYJ46 geared reducer motor is a precision-engineered solution for air conditioning systems, featuring a compact 35mm frame and 12V operation. What sets it apart is its optimized 1:85 reduction ratio, delivering the perfect balance of torque and controlled movement—critical for regulating air vents, damper flaps, and louver adjustments in AC units.

We provide customization service on gear ratio, coil resistance, phase number, and connector types.

Customers can customize motor’s parameter based on specific requirement, we have 43.75:1 /85:1 gear ratio for option.

Customization options:

Model No.: 35BYJ46

Step angle:(1-2phase driving) 7.5°/85; (2-2 phase driving) 15°/step

Gear ratio:85:1

Customizable items:

Voltage:12V; gear ratio, gear material, output shaft, motor’s cap design customizable

Voltage

(V)

Resistance

(Ω)

Pull-in torque

100PPS

(mN*m)

Detent Torque

(mN*m)

Unload pull-in

Frequency

(PPS)

Step Angle

(1-2phase)

12

100

≥147

≥78.4

≥350

7.5°/85

12

200

≥78.4

≥39.2

≥350

12

45

≥135

≥68

≥350

7.5°/43.75

Design drawing(Unit:mm)

4 Phase Reduction Stepper Motor 5 Wire Geared Stepper Motor 35BYJ46 35mm 12V For Air Conditioners

Technical Features

Application Highlights

HVAC/R Valve Actuation Winding possibilities – Bipolar

Office Automation Printers, Copiers, Data storage Maintenance free - motor is brushless

Medical Applications Pill dispensing Analysers Cost effective - compact design, lower integration cost

Telecommunication Antennae positioning Switching lines Open loop control - No encoders necessary

Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.

Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
