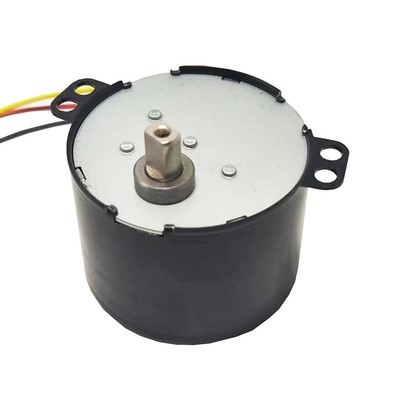

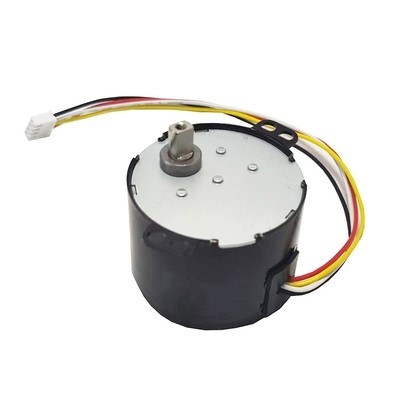

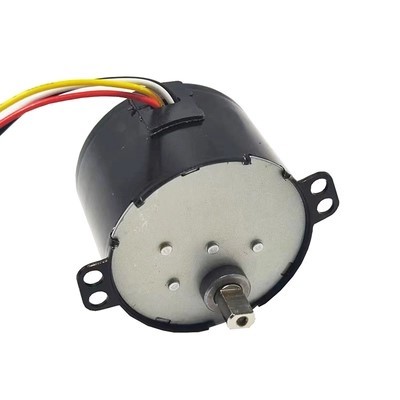

50mm Diameter Reduction Stepper Motor 50BYJ46 Geared Stepper Motor 33:1 Ratio 15 Degree Step Angle
50mm Diameter Reduction Stepper Motor 50BYJ46 Geared Stepper Motor 33:1 Ratio 15 Degree Step Angle
50mm Diameter Reduction Stepper Motor 50BYJ46 Geared Stepper Motor 33:1 Ratio 15 Degree Step Angle
50mm Diameter Reduction Stepper Motor 50BYJ46 Geared Stepper Motor 33:1 Ratio 15 Degree Step Angle
50mm Diameter Reduction Stepper Motor 50BYJ46 Geared Stepper Motor 33:1 Ratio 15 Degree Step Angle
50mm Diameter Reduction Stepper Motor 50BYJ46 Geared Stepper Motor 33:1 Ratio 15 Degree Step Angle
Specifications
Brand Name :
WEIGU
Model Number :
50BYJ46
Certification :
RoHS
Place of Origin :
China
MOQ :
1Unit
Price :
$3~9/unit
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 Units/month
Delivery Time :
15-30 workdays
Packaging Details :
Standard export package, or can be customized
Type :
Stepper Reduction Motor
Rated Voltage :
12V
Coil Resistance :
23Ω/phase
Gear Ratio :
33.3:1
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

50mm outer diameter 50BYJ46 Stepper Reduction Motor 33:1 Ratio 15-degree step angle

This is a 50mm stepper motor with 4 cables (4 phases)

It has a gearbox inside, and the ratio is 33:1.

This motor can be used in household appliances or other electrical products.

The driving voltage is 12V DC, which is related motor’s coil resistance.

The motor’s resistance, shaft design, also cable length and connector type are all customizable.

Customer can change the parameters based on own design requirement.

Specifications

Model No. 50BYJ46
Motor diameter 50mm
Phase No. 4phases (Bipolar)
Step Angle 15°/33.3
Coil resistance 23Ω/phase
Rated voltage 12V DC
Gear ratio 33.3:1
Max starting frequency(12V) >200 PPS
Pull-in torque(12V) 147 mNm

Technical Features

Application Highlights

HVAC/R Valve Actuation Winding possibilities – Bipolar

Office Automation Printers, Copiers, Data storage Maintenance free - motor is brushless

Medical Applications Pill dispensing Analysers Cost effective - compact design, lower integration cost

Other Industries & Applications Robotics Digitally controlled - Easy to use with a micro processor

Telecommunication Antennae positioning Switching lines Open loop control - No encoders necessary

Mechanical Dimension: mm

50mm Diameter Reduction Stepper Motor 50BYJ46 Geared Stepper Motor 33:1 Ratio 15 Degree Step Angle
